Power and Cooling Solutions for Data Center

Power and Cooling Solutions
for AI Computing

AI workloads demand massive computing power and generate significant heat.
Delta’s integrated power and cooling solutions ensure stable operation,energy efficiency and scalable performance with high-density power systems and advanced liquid and air-assisted cooling.

MGX Rack GB200/300

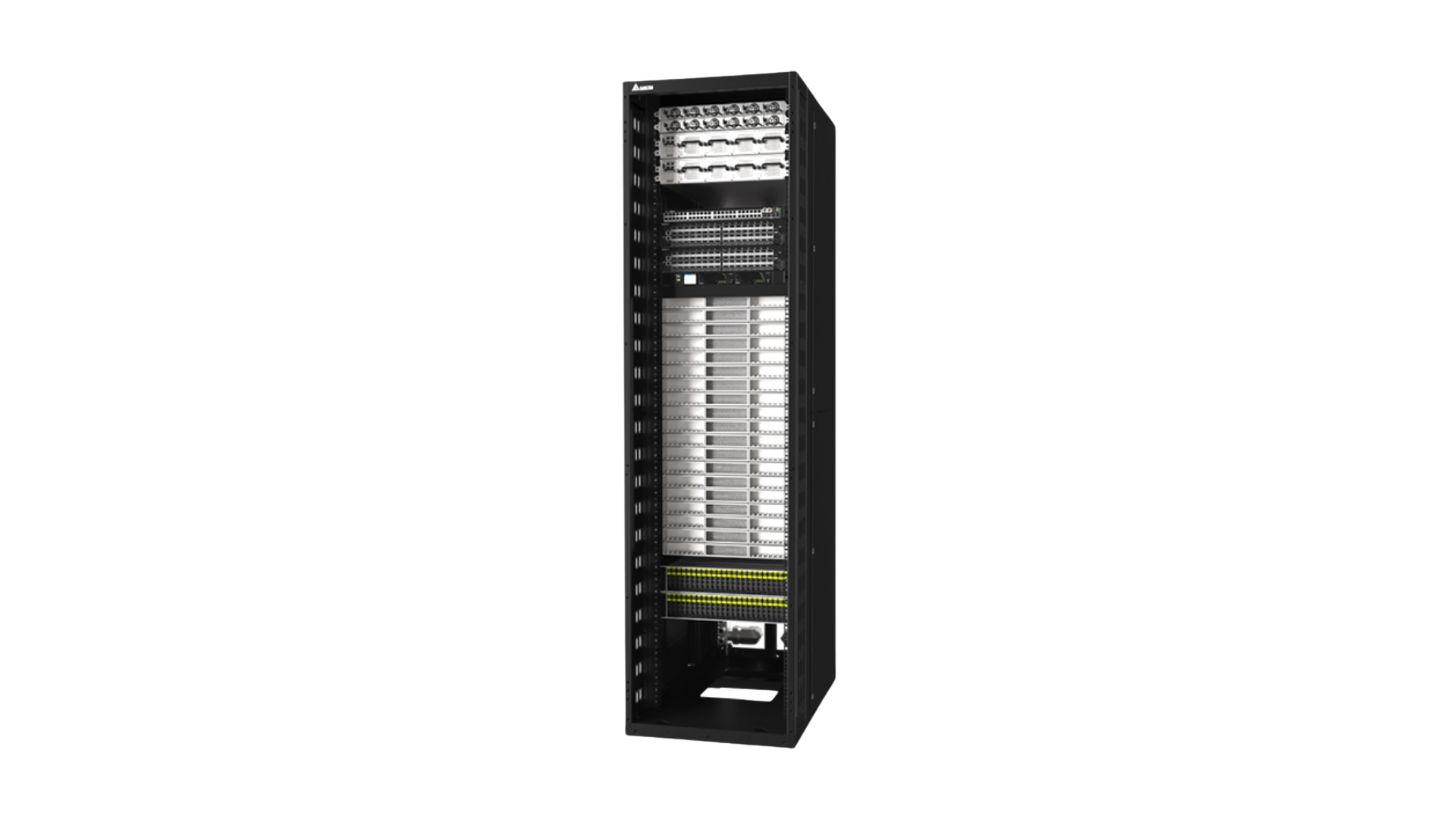

Delta Power & Cooling Solutions

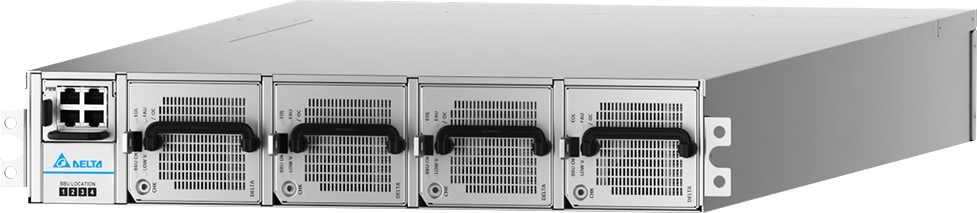

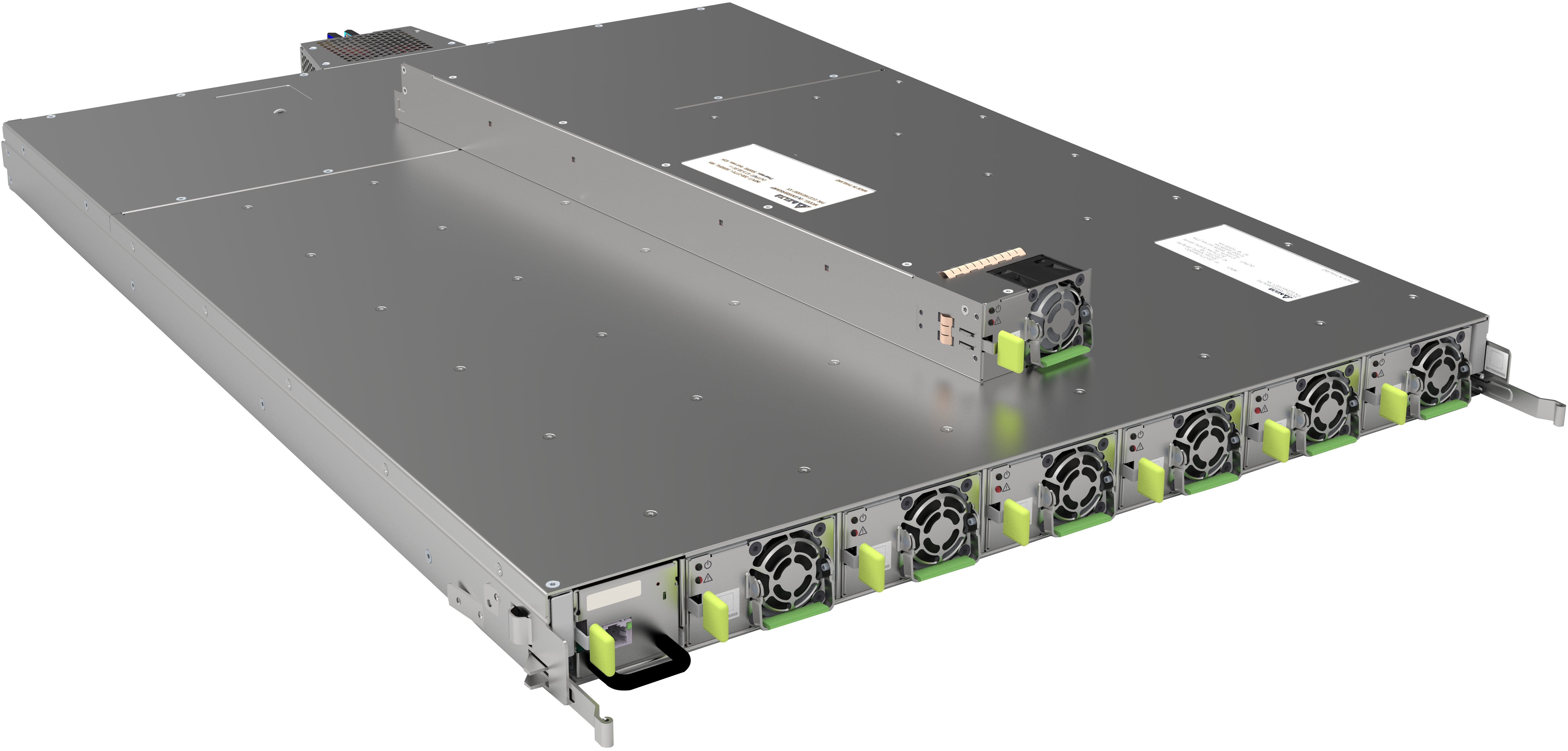

19" Power shelf

• 33kW

• PSU 5.5kW

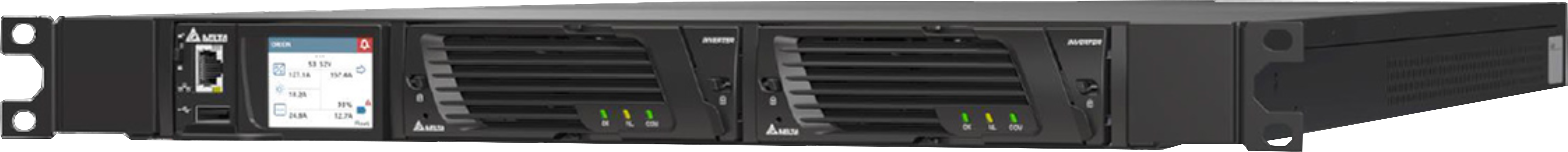

Power capacitance shelf

• Support EDPP,energy backup solution and
reduces GPU dynamic load impact

• Lithium-Ion Capacitor(LIC) fast charge/discharge

• 15s hold-up @ 20kW high power density

• Compatible with 19” (1RU) and 21”(1OU) ORV3 standard racks

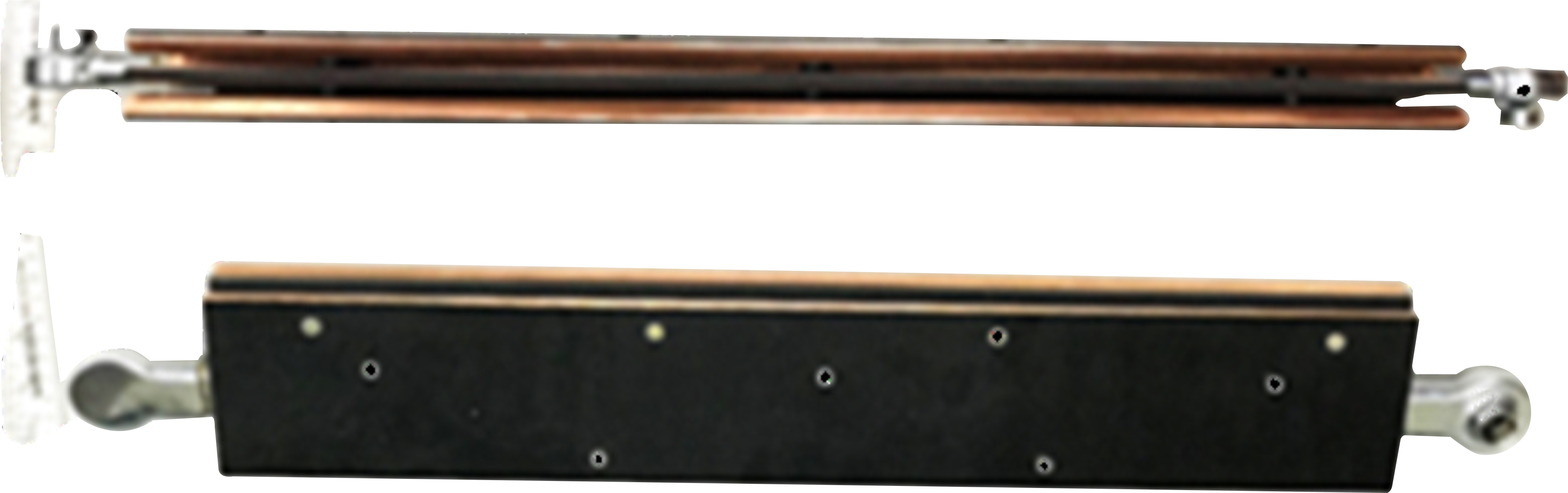

Air/Liquid Cooled Busbar 1400A

• ORv3 and MGX Cabinet Compatible

• Barklip Mating System

• 1/4-Length Display Sample

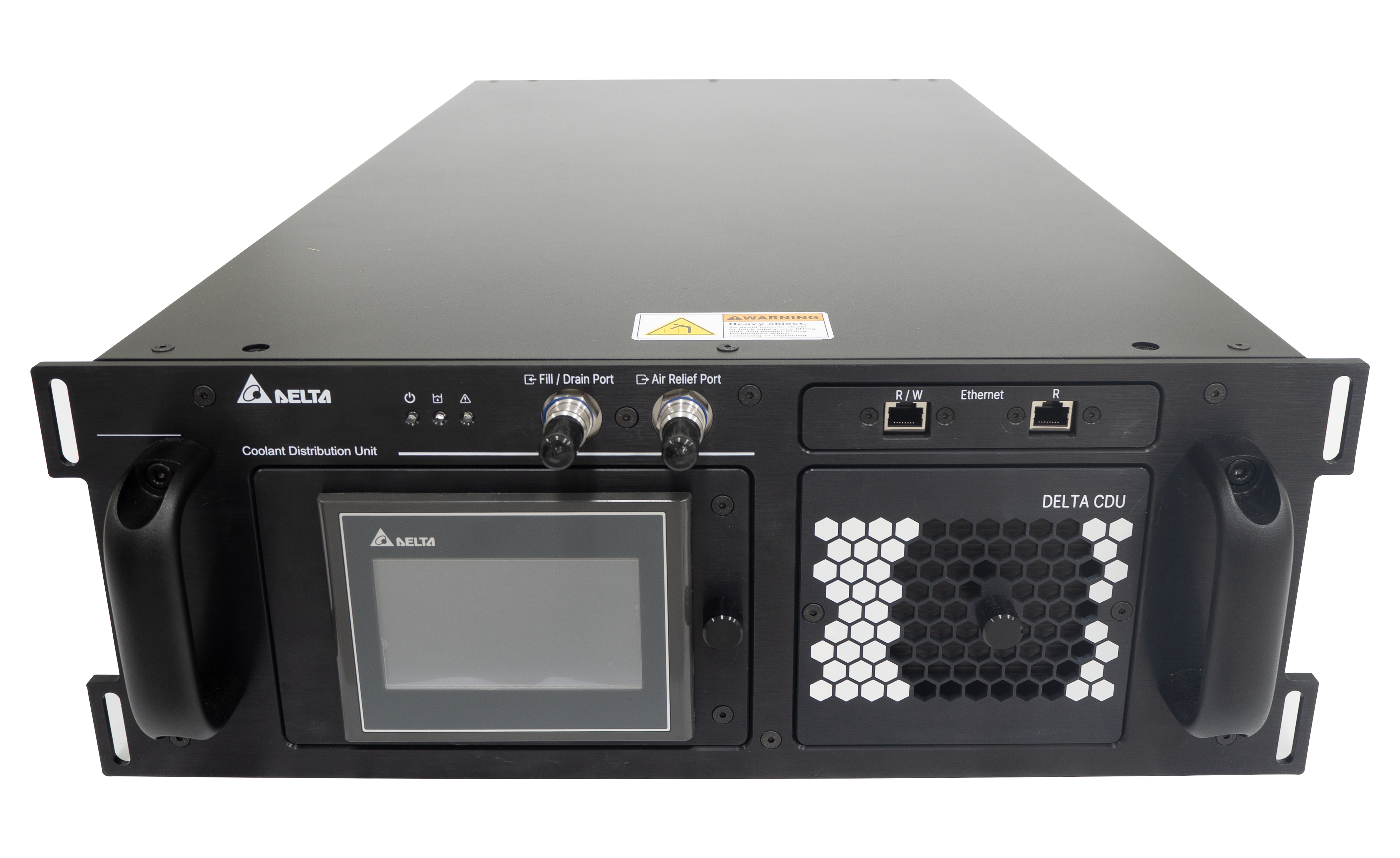

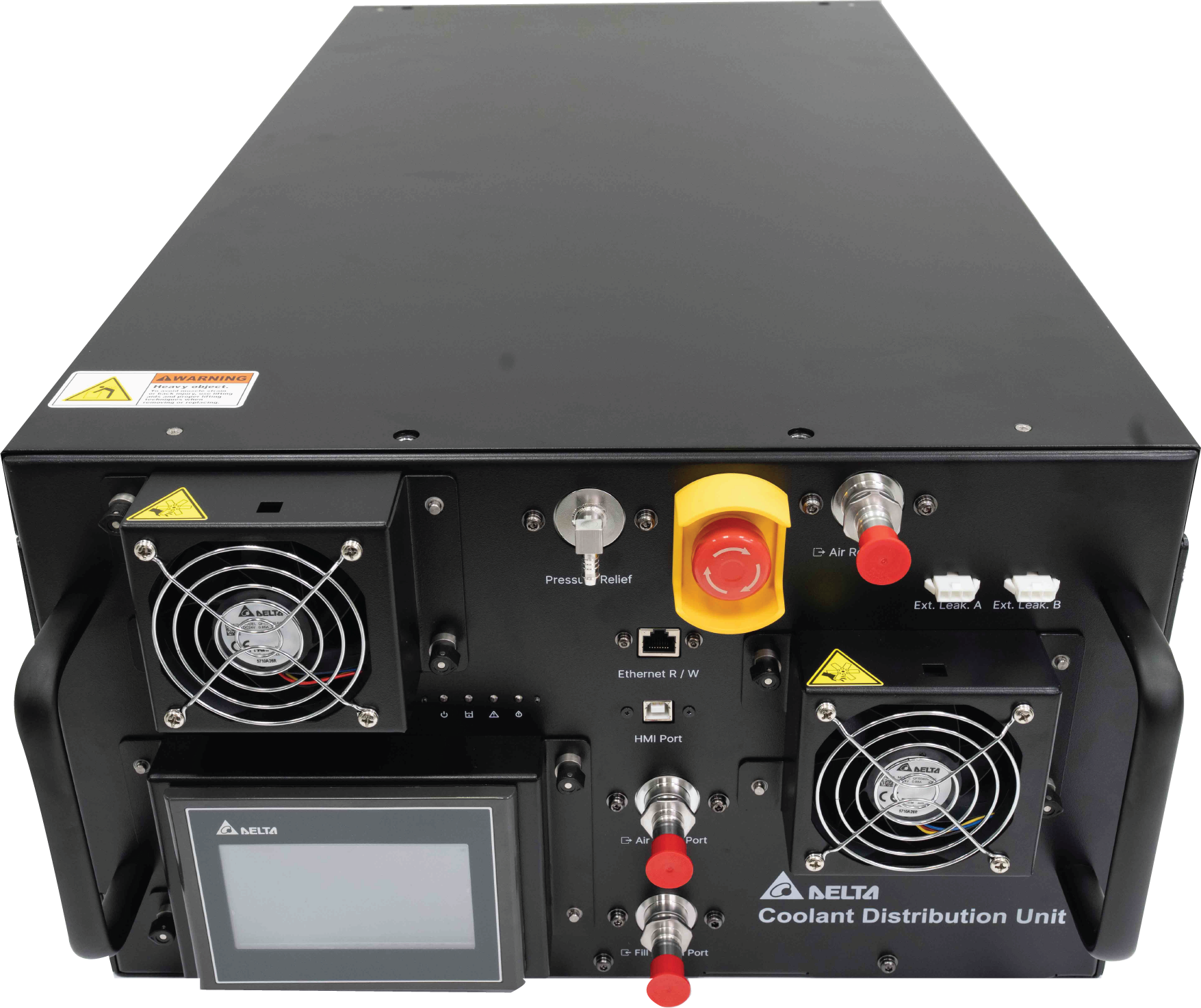

19” 4U L2L 140kW CDU

• Cooling Capacity:140kW @4C Tapproach

• Pump & PSU redundant design

• Multiple flow and temperature control mode

• Remote and monitor via RJ45 port

• Utilize facility chiller water



Manifold

•42U, 41U 2U4N

•Available for 19” (1RU) and 21” (1OU) ORV3



19” 6U L2L 250 kW CDU

• Cooling Capacity:250kW @ 4C Tapproach

• Pump & PSU redundant design

• Multiple flow and temperature control mode

• Remote and monitor via RJ45 port

• Utilize facility chiller water



OCP Rack

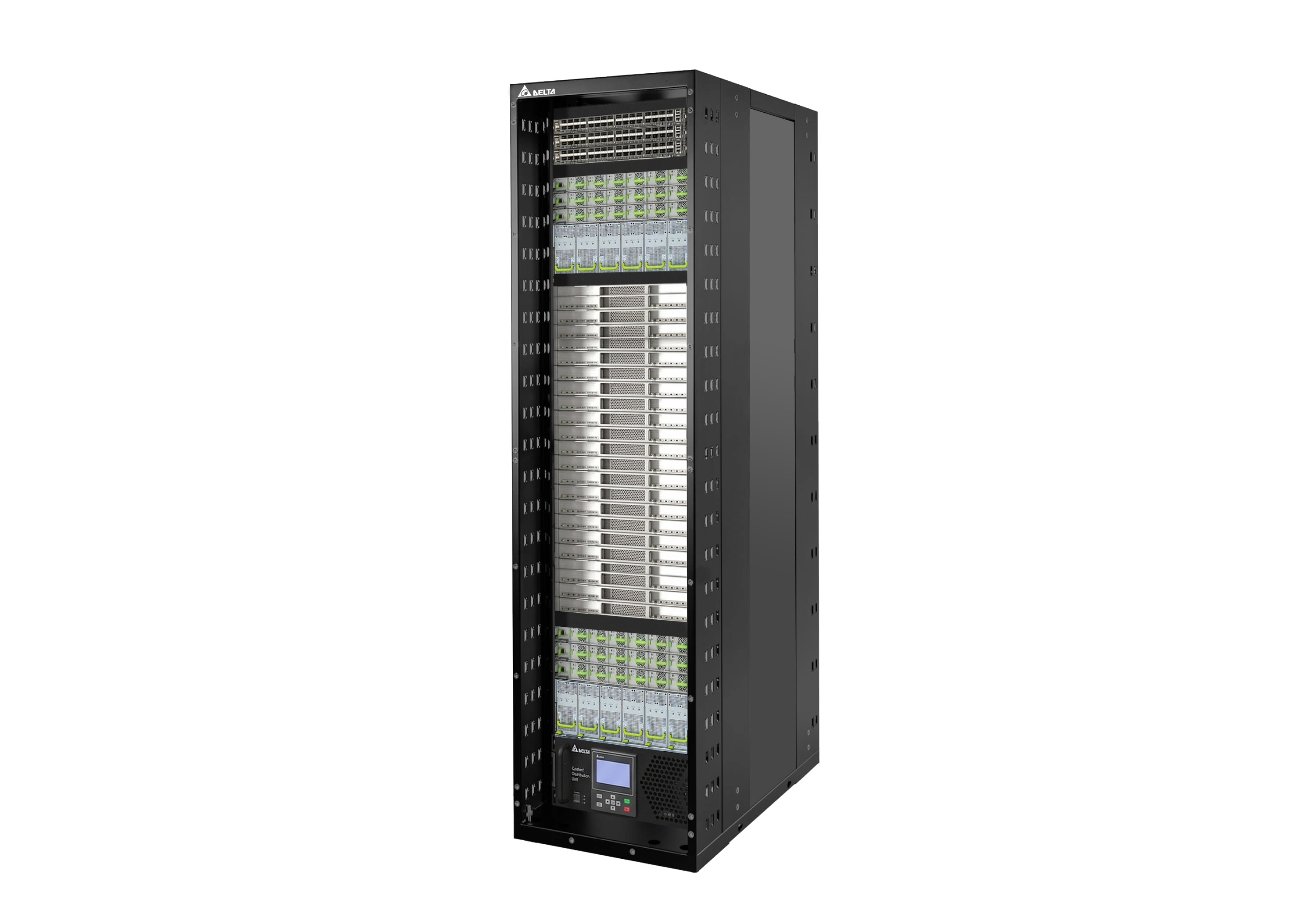

Delta Electronics OCP Rack

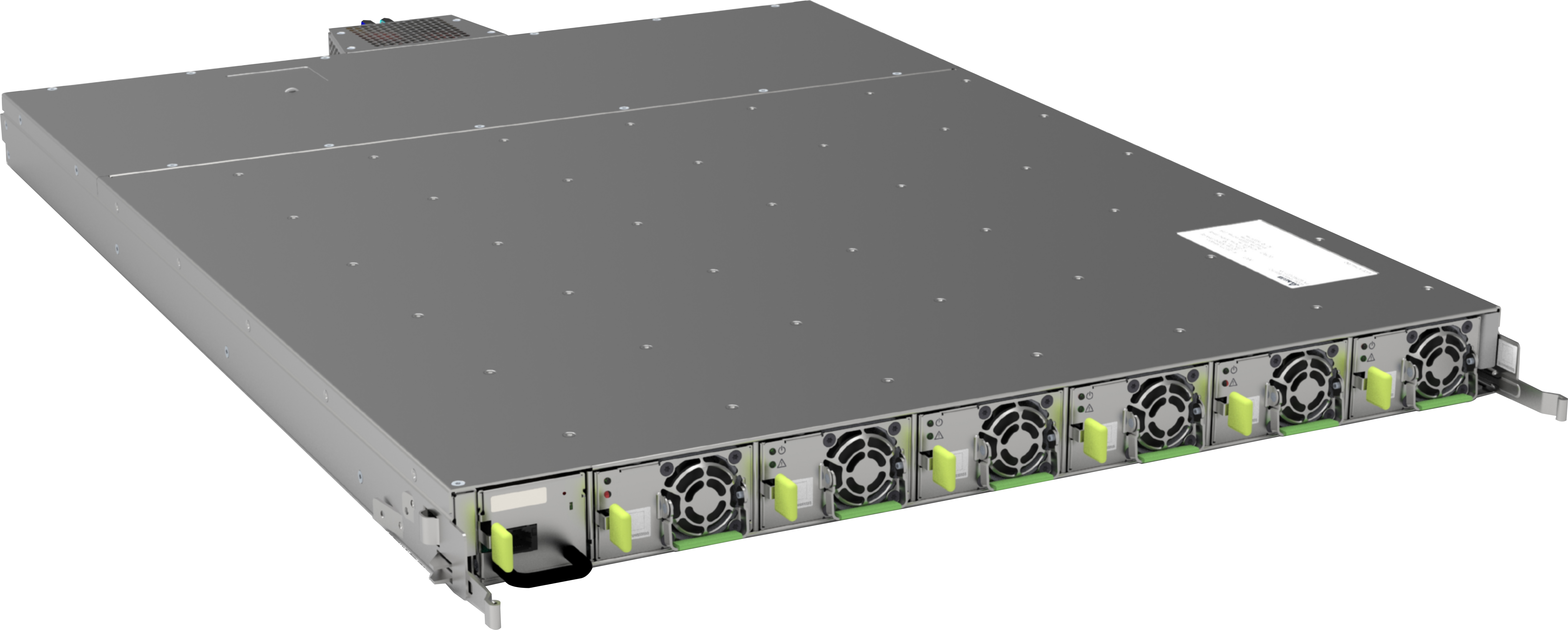

21" Power Shelf

• 18/33/72 kW

• PSU 3/5.5/12 kW



Power capacitance shelf

• Support EDPP,energy backup solution and
reduces GPU dynamic load impact

• Lithium-Ion Capacitor(LIC) fast charge/discharge

• 15s hold-up @ 20kW high power density

• Compatible with 19” (1RU) and 21”(1OU) ORV3 standard racks

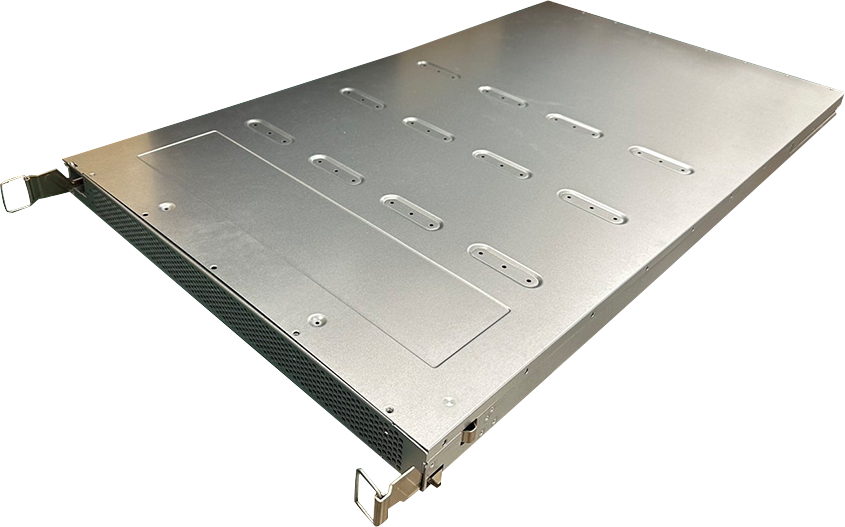

Battery Backup System

• 18/22/33 kW

• 97.5% efficiency and UL9540A-certified for lower OPEX
and carbon reduction



21" 4U L2L 140 kW CDU

• Cooling Capacity:140kW @4C Tapproach

• Pump & PSU redundant design

• Multiple flow and temperature control mode

• Remote and monitor via RJ45 port

• Utilize facility chiller water



Inverter Power System

• With 11.4A of the power for 230V system

• Modular, expandable and easily installed

• High cost-performance ratio



Air/Liquid Cooled Busbar 1400A

• ORv3 and MGX Cabinet Compatible

• Barklip Mating System

• 1/4-Length Display Sample



Manifold

•42U, 41U 2U4N

•Available for 19” (1RU) and 21” (1OU) ORV3

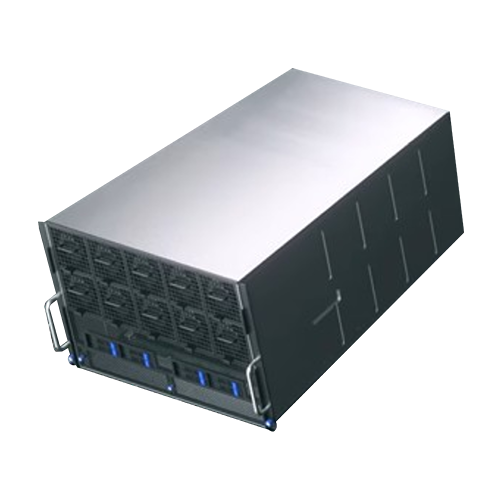

Air Cooled Server

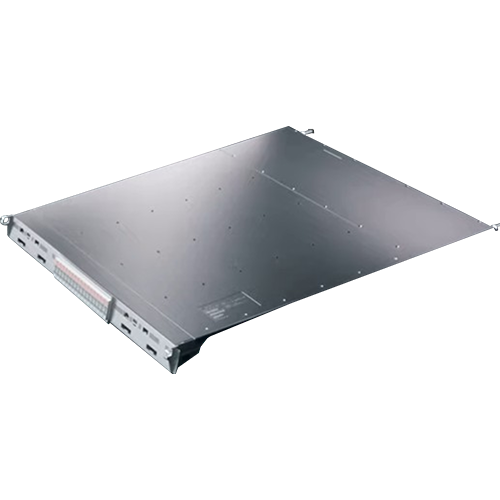

Liquid Cooled Server

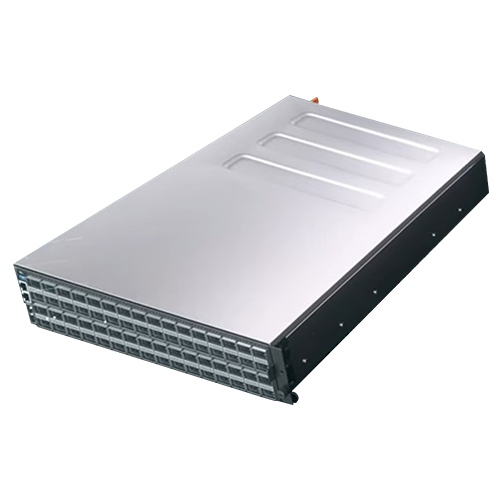

Data Center Switch

Air Cooled Server

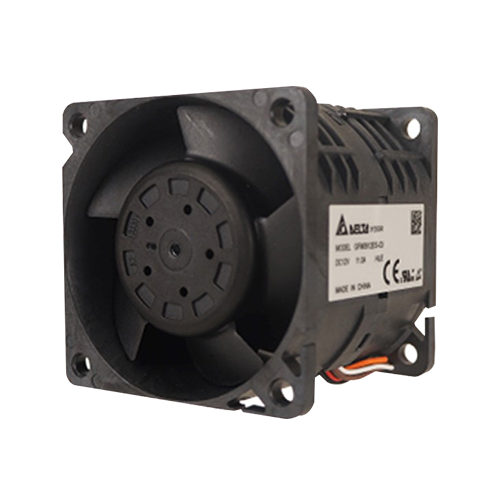

DC Fan Module

• Fan size: 40~92 mm

• Low noise (-3dBA)

• High efficiency (up to 60%)

• 12 Vdc / 48 Vdc

• PWM speed control function

• Support hot swappable

• Anti-reverse flow mechanism

• Brake & turbo mode function *optional

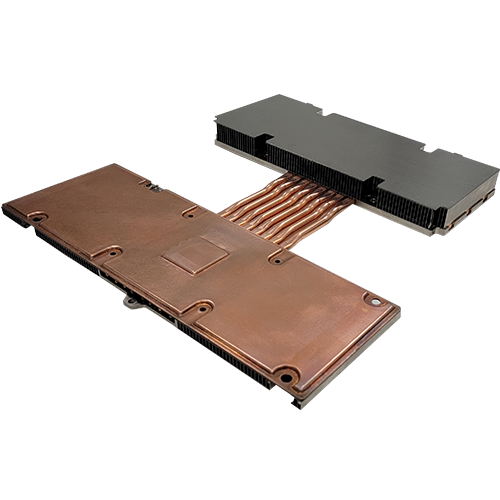

Thermal Module
(EVAC Solution)

• Cooling capacity: 870W

• Hybrid vapor chamber

• Flow rate: 1000 LFM

• ASIC application

• Application: Networking Switch

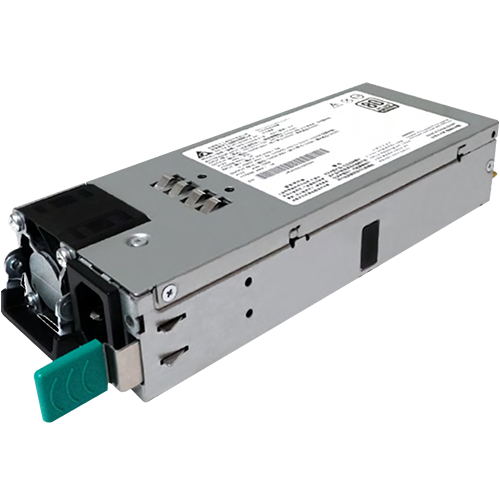

CRPS

• High efficiency >96%

• EMI – Class A​ OTP/OCP/OVP

• Fully Digital Controlled

• 500 W - 6000 W



Power-to-Chip Components



UBC and RBC Power Module

• Power Efficiency up to 98.5%

• High Power Density Design

• PMBus Communication

UBC and RBC Power Module


Point of Load Module

• Inductor Integrated DC-DC

• Smaller PCB footprint

•Pin-to-pin options

Point of Load Module


Power Management IC

• 12V & 48V Applications

• Signal Chain Protection

• Reduced BOM Count

Power Management IC


Vertical Regular Power Module

• GPU Vertical Power Design

• Embedded Magnetics

• Custom BGA Layout

Vertical Regular Power Module


Current Sensing Solution

• Voltage < 60V

• <0.5% Gain Error

• High-Precision CSR + CSA

Current Sensing Solution


48V HSCC xFMR

• 1kW DC-DC Design

• 4:1 / 8:1 / 11:1 Ratios

• Up to 160A Output

48V HSCC xFMR
