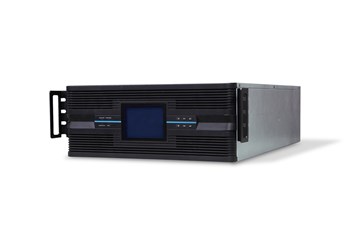

Rack-Mount Remote Power Panel

Spécifications et Avantages

High Flexibility

• Provides three different rated power levels, 30 kVA, 50 kVA and 80 kVA, for your selection
• The highly scalable design allows installation of at maximum six hot-swappable breaker modules (optional), which means that it can connect at maximum 18 branches
• Various accessories are available for options such as TVSS module, main input breaker and SNMP IPv6 card

High Reliability

• Detects any hot-swappable breaker module’s branch current
• Provides abnormal voltage and phase-lack alarms
• Provides system and each branch’s current monitoring and alarm functions
• Intelligently judges the specifications of each hot-swappable breaker module installed
• Smartly monitors whether each latch is closed or open, each branch’s status and the optional main input breaker’s status
• Provides REPO function

Convenience

• User-friendly 4.9-inch LCD interface
• Built-in RS-232 port and smart slot allow remote monitoring
• Records at a maximum 2000 event logs
• Provides 6 sets of output dry contacts

Caractéristiques

1. Model
2. Rack-Mount RPP

3. ---

4. Input
5. Nominal Voltage: 220/380 V, 230/400 V, 240/415 V (3-phase, 4-wire + G)
6. Voltage Range  220/380 V ± 15%
7. Frequency Range: 50/60 Hz ± 5%
8. Main Input Breaker: 63/100/160 A

9. ---

10. Output
11. Full Load Rating : 30/50/80 kVA
12. Nominal Voltage: 220/380 V, 230/400 V, 240/415 V

13. ---

14. LCD Display
15. Total Output: Current, load (%), kVA, kW, kW.h and temperature
16. Each branch: Load (%), current and kW.h

17. ---

18. Interface
19. Standard
    RS-232 port x 1, CAN Bus port x 1, Smart slot x 1, Output dry contact x 6, REPO x 1

20. ---

21. Environment
22. Operating Temperature: 0~40℃
23. Relative Humidity: 90% (non-condensing)
24. Audible Noise: < 70 dBA in normal mode (at a distance of 1 meter in front of the Rack-Mount Remote Power Panel)
25. Protection (IP Degree): IP20

26. ---

27. Others
28. Parallel Redundancy: N/A
29. Emergency Power Off: Yes (Remote)

30. ---

31. Physical
32. Dimensions (W x D x H): 430 x 665 x 173 mm
33. Weight: 38 kg (Max.)
34. Hot-Swappable Breaker Module: 1~6 (at maximum 18-pole supported)

35. ---

36. All specifications are subject to change without prior notice.
