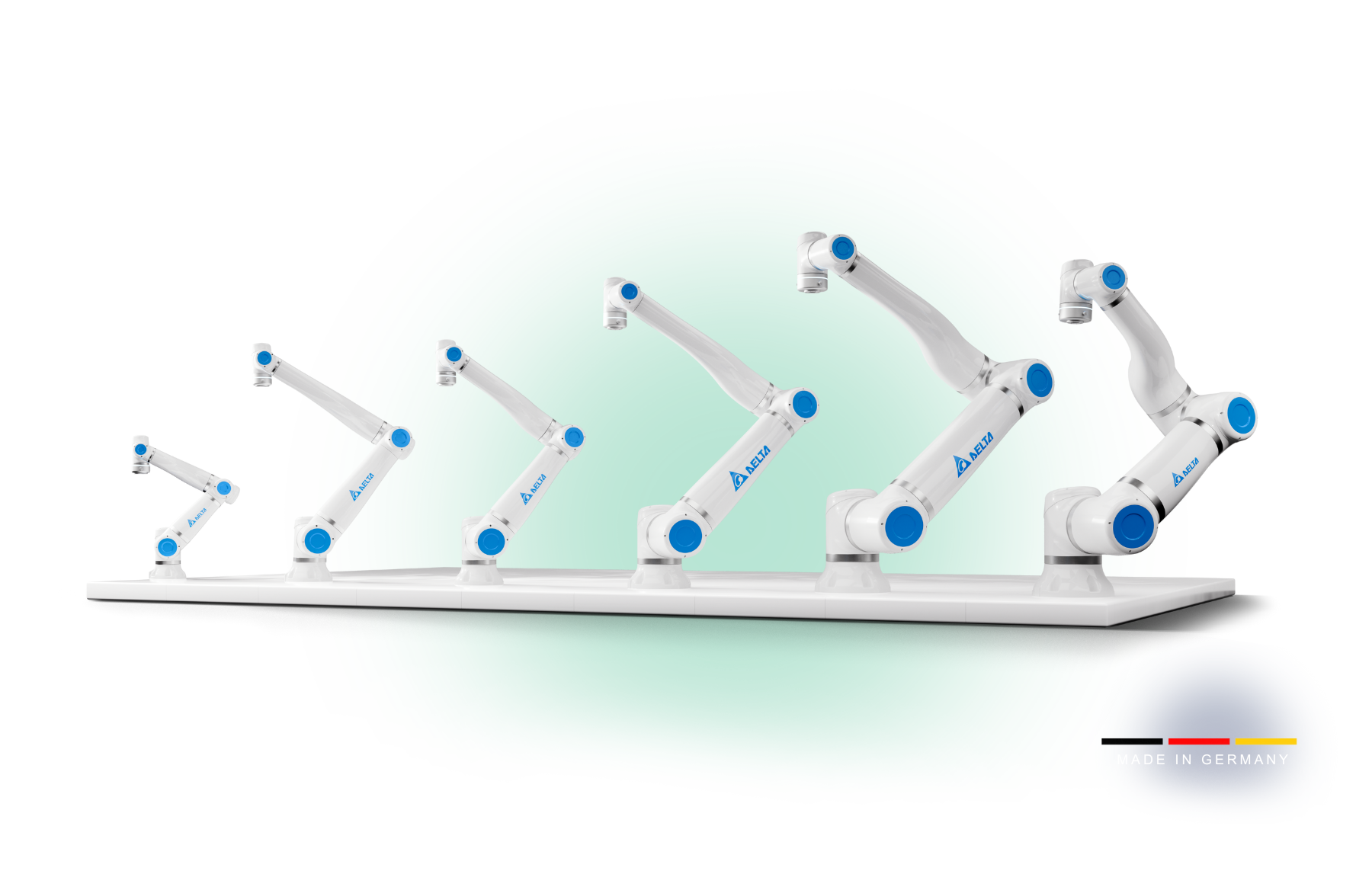

Delta D-Bot Series
Download the Flyer
The Delta D-Bot Series includes collaborative robots (cobots) engineered for industrial automation environments. As a scalable cobot solution, it supports flexible deployment across a wide range of robot applications.
Unlike traditional industrial robots, Delta cobots are designed for safe human-robot collaboration in shared workspaces. This enables efficient interaction between operators and automation systems while maintaining stable and reliable performance.
With payloads from 6 kg to 30 kg and working range from 800 mm to 1800 mm, the Delta collaborative robot adapts to different industrial applications, including high-mix production environments, while ensuring precision and flexibility.
The Delta Cobot combines speed and precision to optimize demanding robot applications. With repeatability up to ±0.02 mm and TCP speeds of up to 3 m/s, it ensures consistent quality control and supports flexible automation strategies aimed at improving productivity.
Its omnidirectional mounting capability allows installation on floors, walls or ceilings. This supports efficient use of workspace and enables seamless integration into existing robot systems and industrial automation environments.

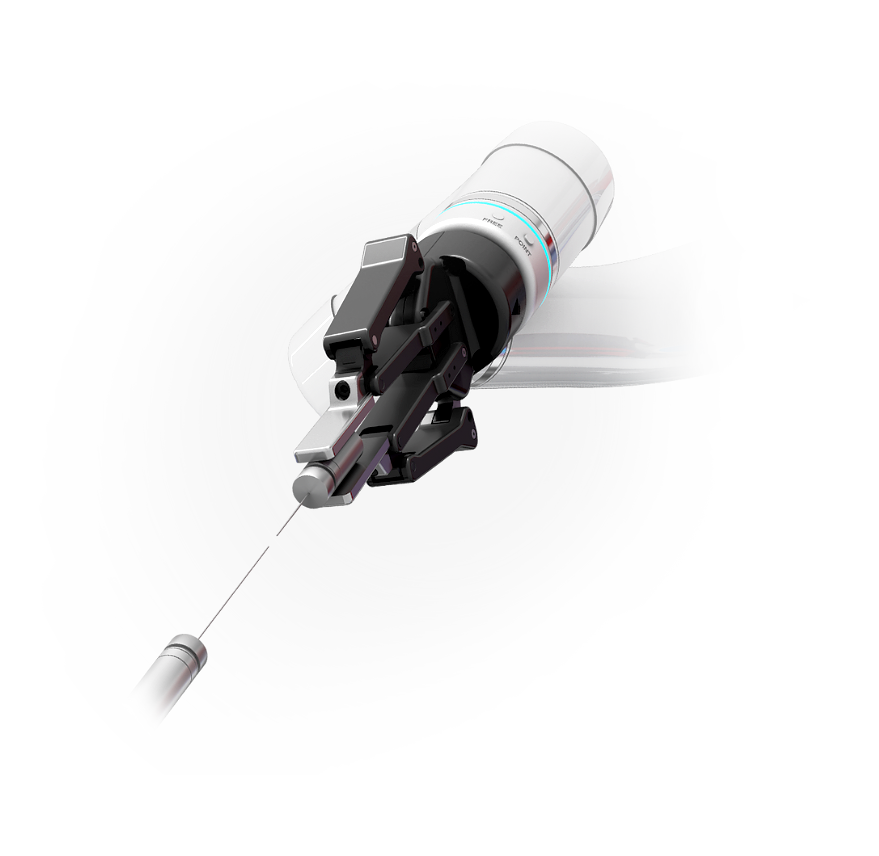

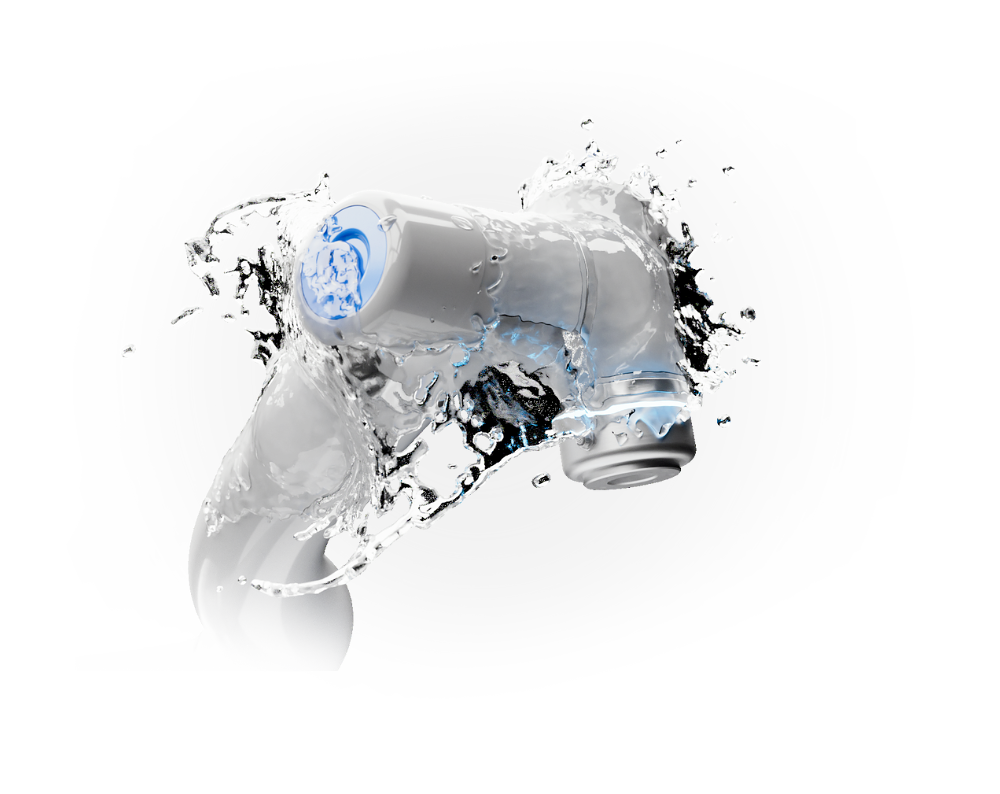

IP66-certified models are available upon request for use in demanding industrial environments exposed to dust, moisture and washdown conditions.

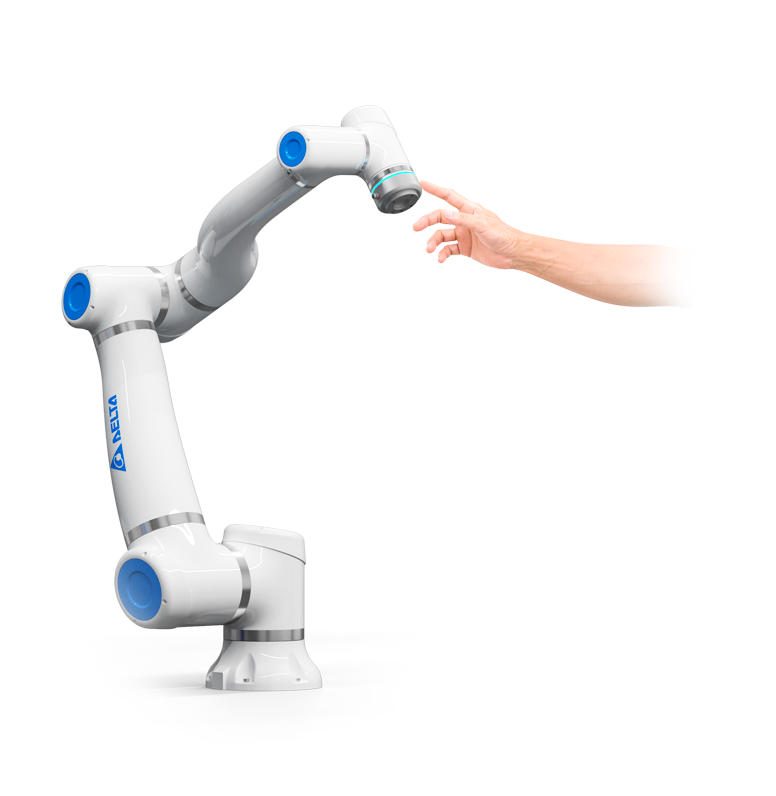

Designed to meet strict safety requirements, the Delta Cobot includes:
These integrated features enable safe deployment in environments where human workers and cobots operate together. This makes the D-Bot a reliable and cost effective Cobot Solution for collaborative production environments that require a high standard of safety and performance.

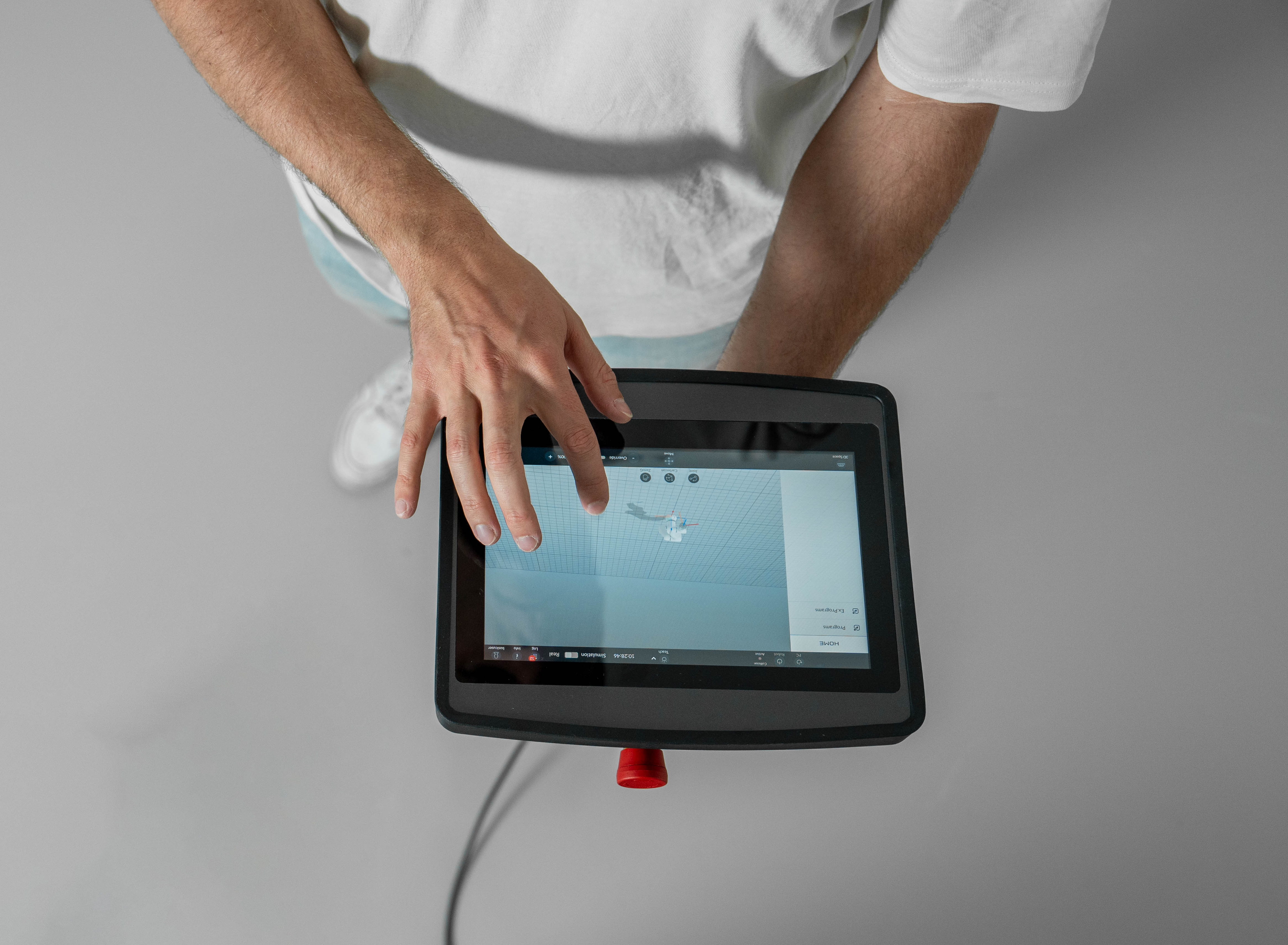

The Delta cobot supports easy programming and fast deployment, making it suitable for a wide range of industrial automation solutions. With an intuitive drag-and-drop interface and support for Python, C#, C++, as well as ROS 2, it enables both rapid setup and advanced customization.
Compatibility with industrial communication protocols such as EtherNet/IP, ModbusTCP, OPC UA, ProfiNet, and EtherCAT ensures seamless integration into existing robot systems and production environments. Deployment can be completed in less than 60 minutes, enabling faster implementation and supporting real time automation performance.
The Delta D-Bot Series provides a modular and scalable Cobot Solution designed to evolve with your production requirements. From precision assembly to material handling, the Delta D-Bot Series supports a wide range of cobot applications.
Delta collaborative robots contribute to improved productivity, efficient workflows and consistent production processes in both standardized and high-mix environments.
Backed by professional service, support, and training, Delta ensures smooth implementation and long-term success. Delta provides a reliable and future-ready robot system tailored to your business objectives.
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|
|
DC 06
|

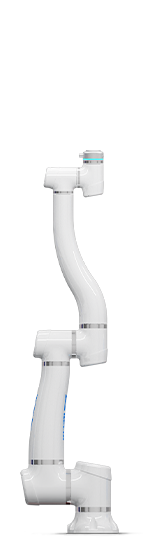

DC 08
|

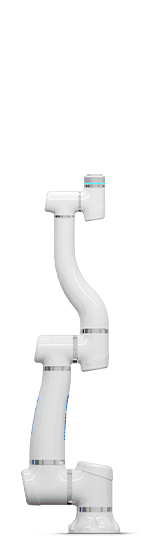

DC 10
|

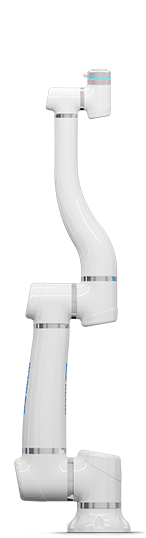

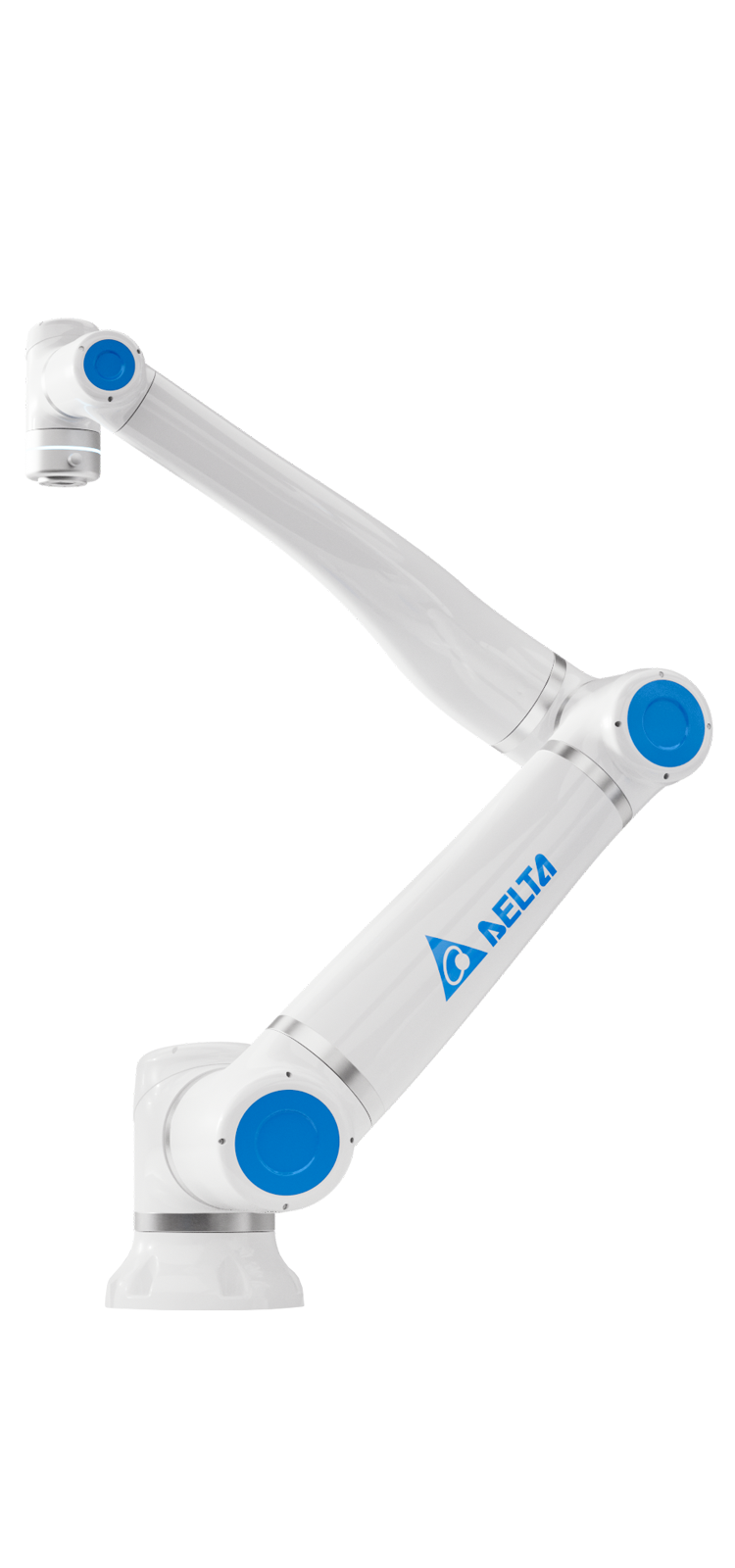

DC 16
|

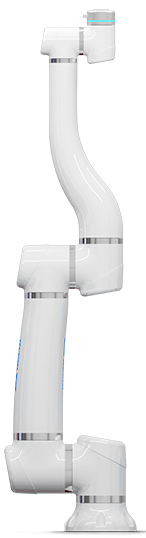

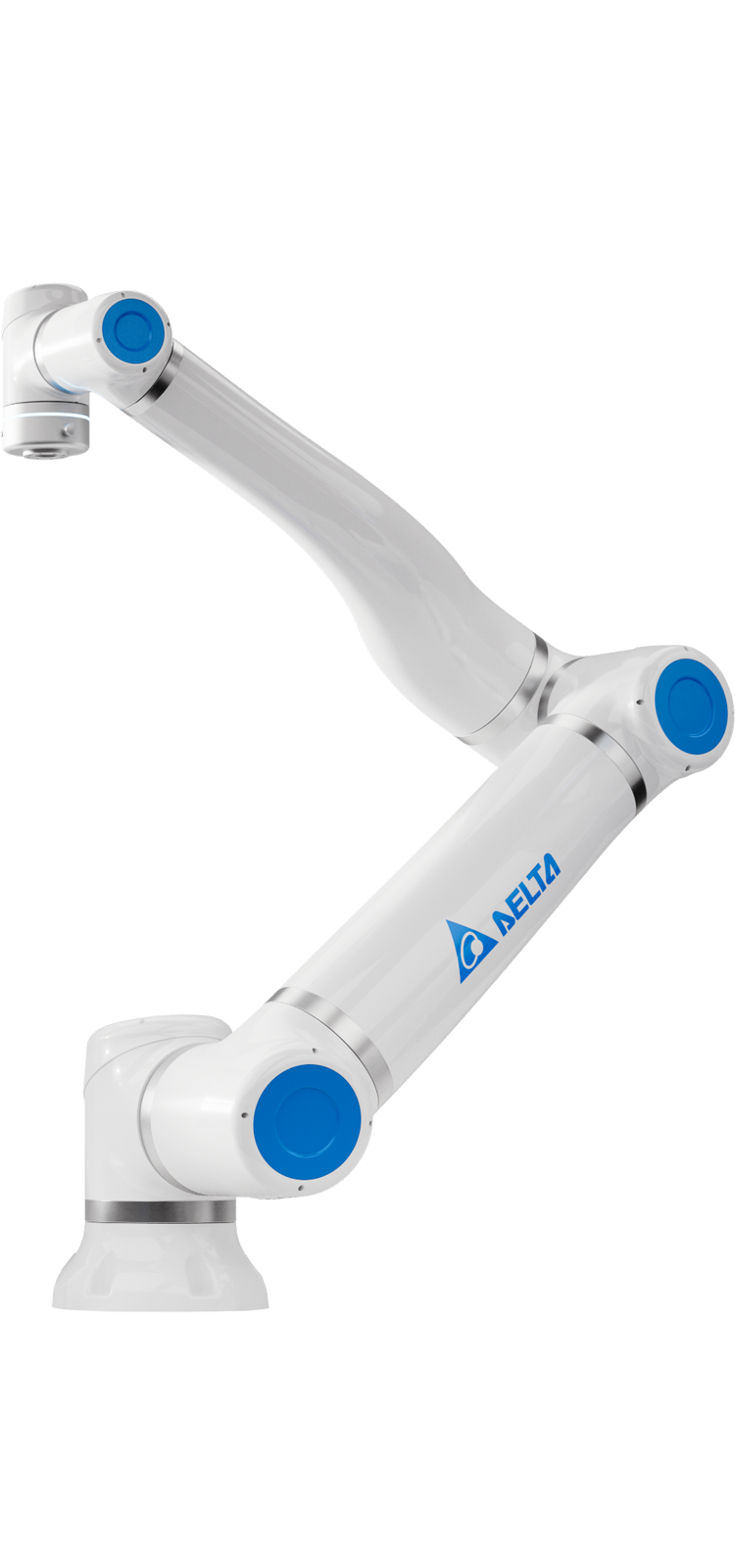

DC 20
|

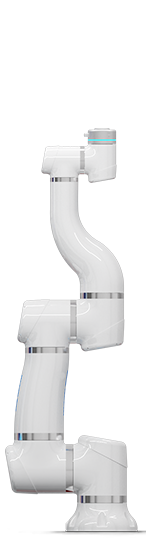

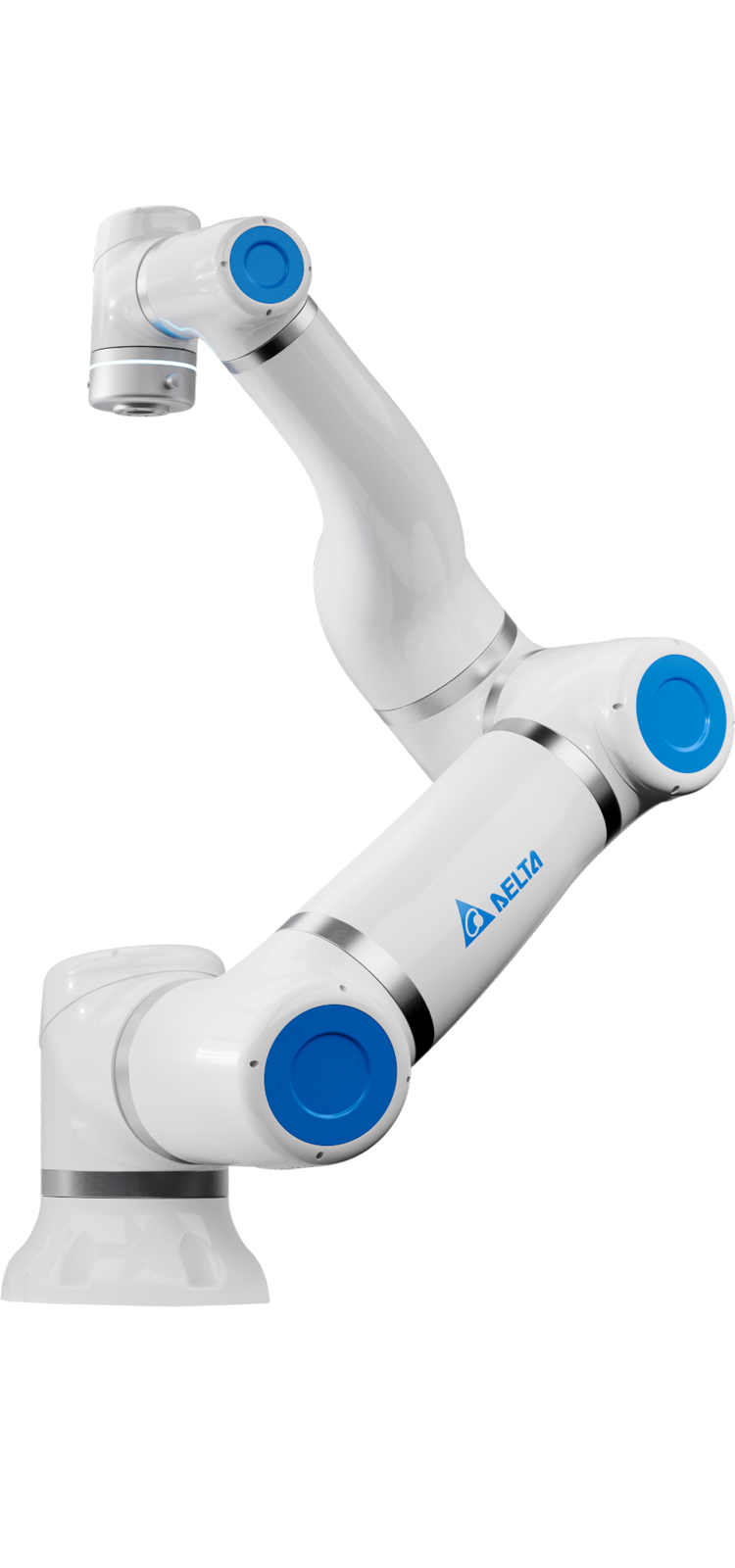

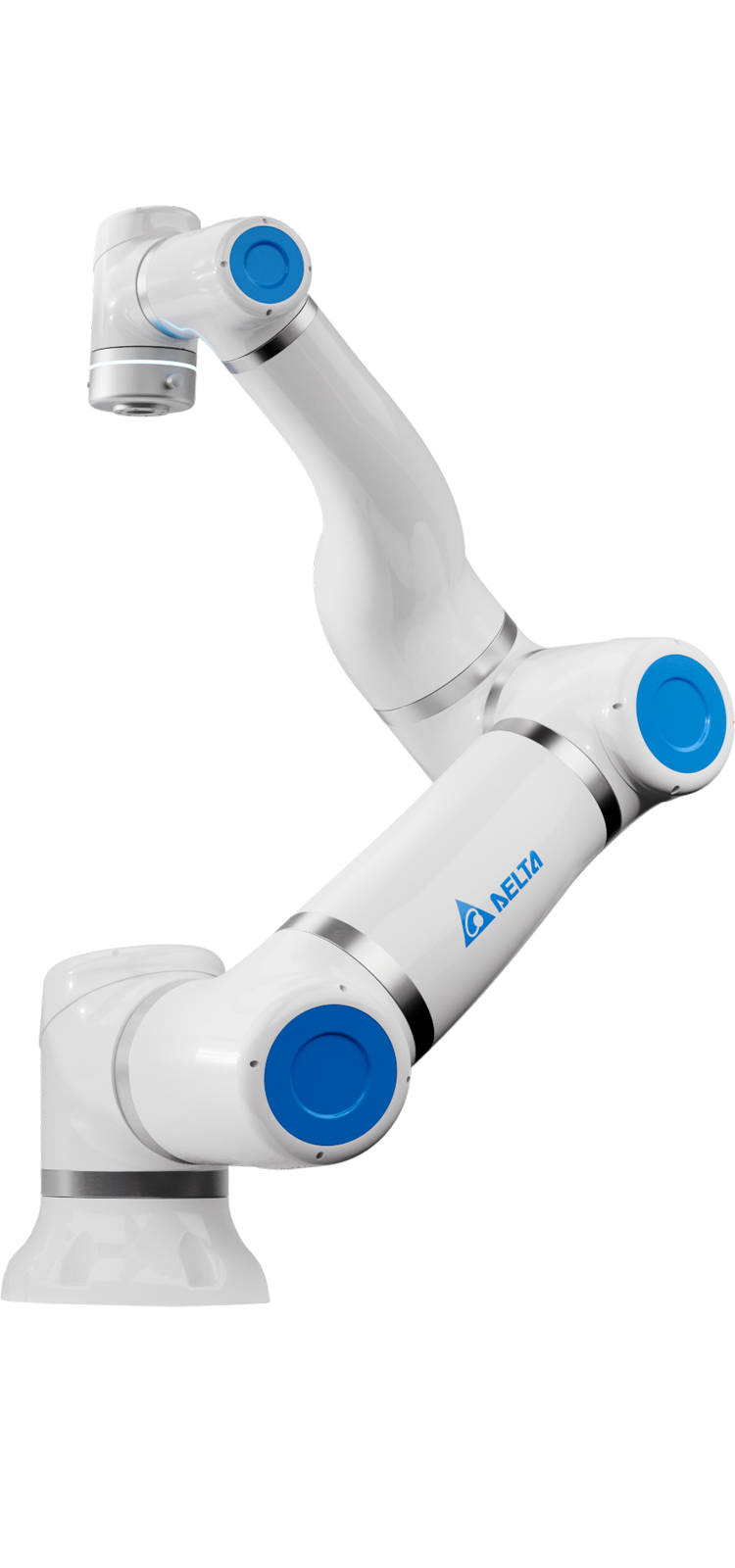

DC 30
|
|
| Specifications | ||||||
| Payload | 6 kg (13.3 lbs) | 8 kg (17.7 lbs) | 10 kg (22.1 lbs) | 16 kg (35.3 lbs) | 20 kg (44.1 lbs) | 30 kg (66.2 lbs) |
| Reach | 800 mm (31.5 in) | 1300 mm (51.2 in) | 1200 mm (47.3 in) | 1600 mm (63 in) | 1800 mm (70.1 in) | 1300 mm (51.2 in) |
| Degrees of Freedom | 6 rotary joints | |||||
| Environment & Safety | ||||||
| Ambient Temperature | Ambient temperature: 0° to 40°C (32° to 104°F) | |||||
| IP Classification | IP 66 water and dust protection* | |||||
| Functional Safety | 22 safety functions certified to PL d, Cat. 3, SIL 3 | |||||
| SGS Certified | EN ISO 10218-1:2011 , EN ISO/TS 15066:2016, EN ISO 13849-1:2023, EN ISO 13849-2:2012, IEC 60204-1:2016 and UKCA (for UK) | |||||
| Performance | ||||||
| Max. TCP Speed | 2 m/s | 3 m/s | 2.7 m/s | 3 m/s | 2 m/s | |
| Pose Repeatability | ±0.02 mm | ±0.03 mm | ±0.05 mm | |||
| Physical | ||||||
| Weight | 24 kg (53 lbs) | 40 kg (88 lbs) | 39 kg (86 lbs) | 70 kg (154 lbs) | 101 kg ( 222 lbs) | 98 kg (216 lbs) |
| Mounting | Omnidirectional, including table mounting, wall mounting, and ceiling mounting | |||||
| Control Box | ||||||
| Dimensions | 460 mm x 425 mm x 237 mm | |||||
| Weight | 20 kg (44.1 lbs) | |||||
| Power Supply | 100-240 VAC, 50/60 Hz, max. 2 kW (max. 3kW for DC16/20/30 ) | |||||
| Interfaces | Modbus TCP, EtherNet/IP, USB 3.0, 8x GPIO, Safety I/Os | |||||
| Interfaces with ext. HW | OPC UA, PROFINET, EtherCAT | |||||
| Programming Interfaces | Drag & Drop, Python, C#, C++, ROS 2 | |||||
| Teach Pendant | ||||||
| Dimensions | 270,2 mm x 239,8 mm x 93,7 mm | |||||
| Resolution | 1280 x 800 px | |||||
| Cable length | 5 m (16.4 ft) | |||||
To support a wide range of robot applications, the Delta D-Bot Series can be extended through an integrated partner ecosystem. It connects Delta's collaborative robots with a network of certified partners and components for industrial automation. This includes grippers, vision systems and safety technologies that are pre-aligned with the cobot system to support fast and reliable integration into industrial automation environments.
Standardized interfaces and validated compatibility reduce integration effort and enable efficient deployment across a wide range of robot applications, which allows users to implement cobot solutions more quickly, simplify system setup and adapt automation systems to specific production requirements.
