• ROB-SET ECBPi M12-12
J. Schmalz GmbH

ROB-SET ECBPi M12-12

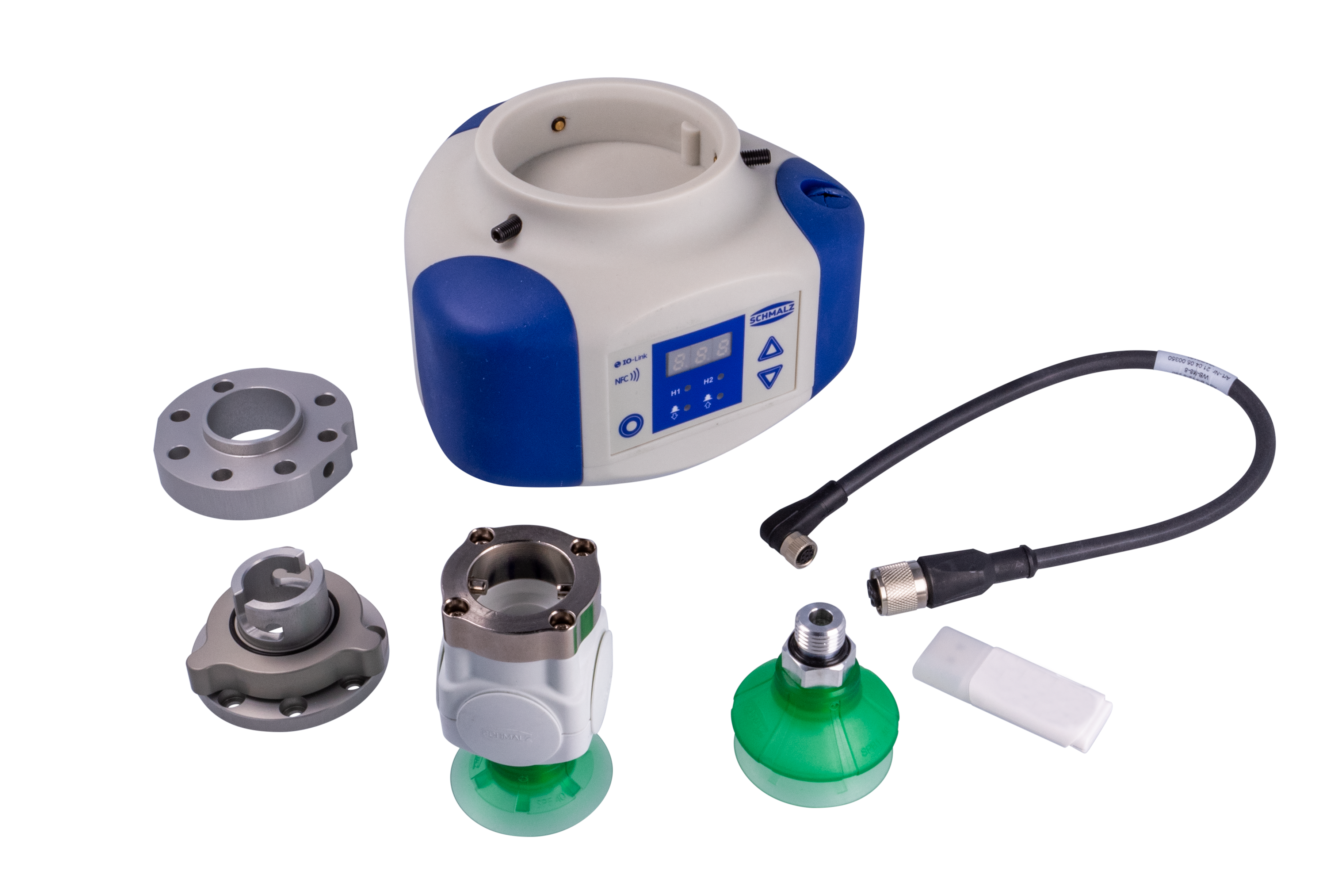

Complete set for connecting and integrating the CobotPump ECBPi to lightweight robots. Set includes vacuum generator with a suction rate up to 12 l/min, flange, suction cup and connection cable

  • READY-TO-CONNECT HANDLING SET
  • ELECTRICAL VACUUM GENERATOR
  • HIGHER PAYLOAD OF THE ROBOT DUE TO LOW WEIGHT
  • INTEGRATED INTERFACES FOR CONTROLLING, REGULATING AND MONITORING THE HANDLING PROCESS
  • INTEGRATED VENTILATION VALVE FOR FAST, PRECISE PLACEMENT OF THE WORKPIECE DURING HANDLING
Target audience
TARGET AUDIENCE
  • Handling of airtight and slightly porous workpieces
Get a Quote →
Use case
USE CASE
  • Material handling
  • Bin Picking
  • Assembly
  • Commissioning
Specifications
Category
ECBPi M12-12
Overview
Electrical connection 8-pin terminal block
Max. vacuum 750 mbar
DC voltage 24 V DC
Suction capacity (max.) 12.0 l/min
Rated power 13.00 W
Operating temperature 5 ... 45 °C
Rated current 0.6 A
Dimensions
Length L 88.60 mm
Technical Data
Weight 775.00 g
DC voltage 24 V DC
Suction capacity (max.) 12.0 l/min
Rated power 13.00 W
Operating temperature 5 ... 45 °C
Product family ECBPI
Rated current 0.6 A

Download

Download
ROB-SET ECBPi M12-12 Datasheet
Download the Schmalz ECBPi M12-12 Datasheet here
Get a Quote →

Best paired with

DC 06DC 06
DC 08DC 08
DC 10DC 10
DC 16DC 16
DC 20DC 20
DC 30DC 30
