Payload
Up to 10 kg
Maximized Reach
Up to 1300 mm
Consistent Accuracy
±0.02 mm
2-in-1 Modular
AGV + Cobot
Safety Features
PLd Cat. 3 / SIL 2
Built-in Battery
Up to 7 h

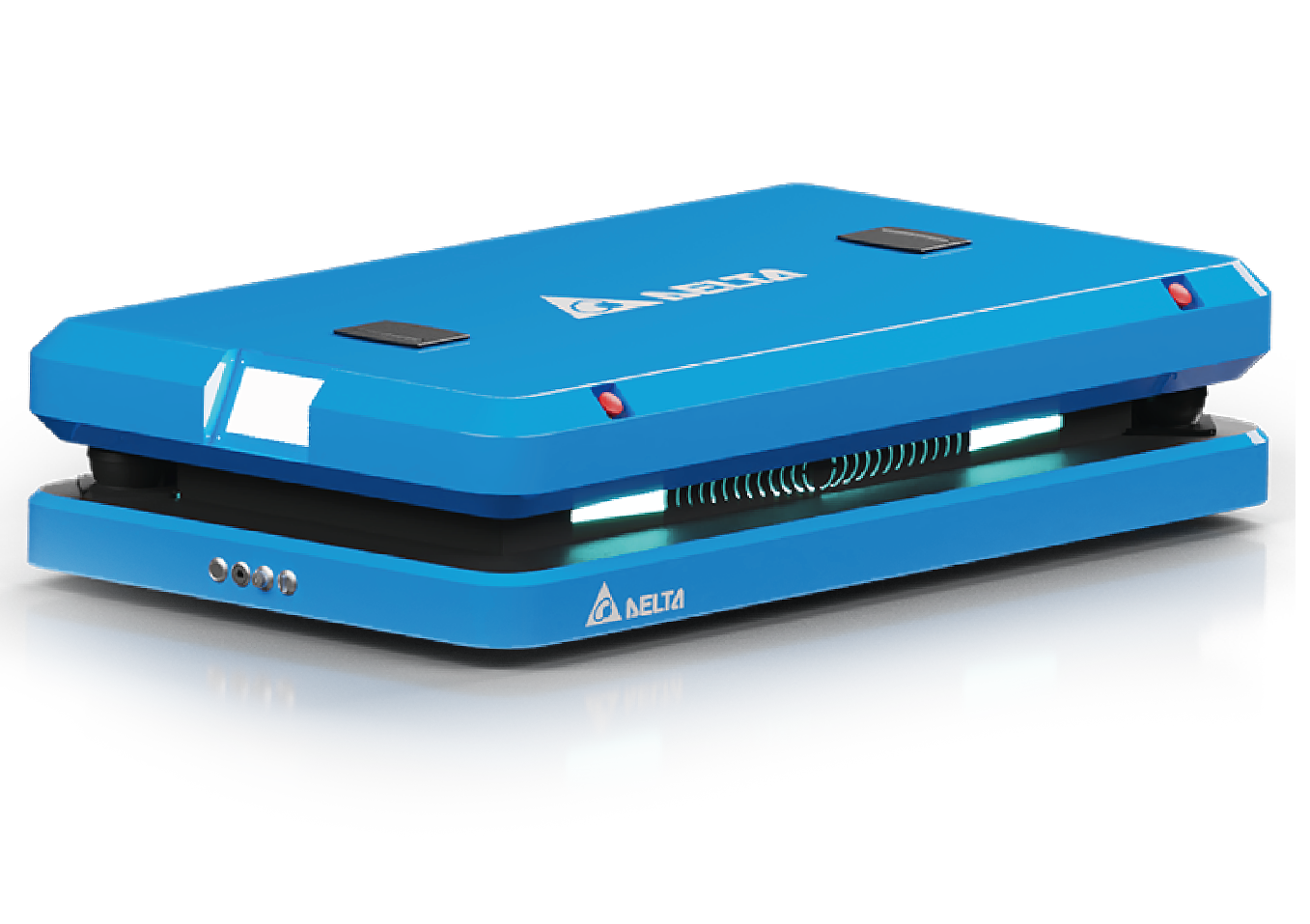

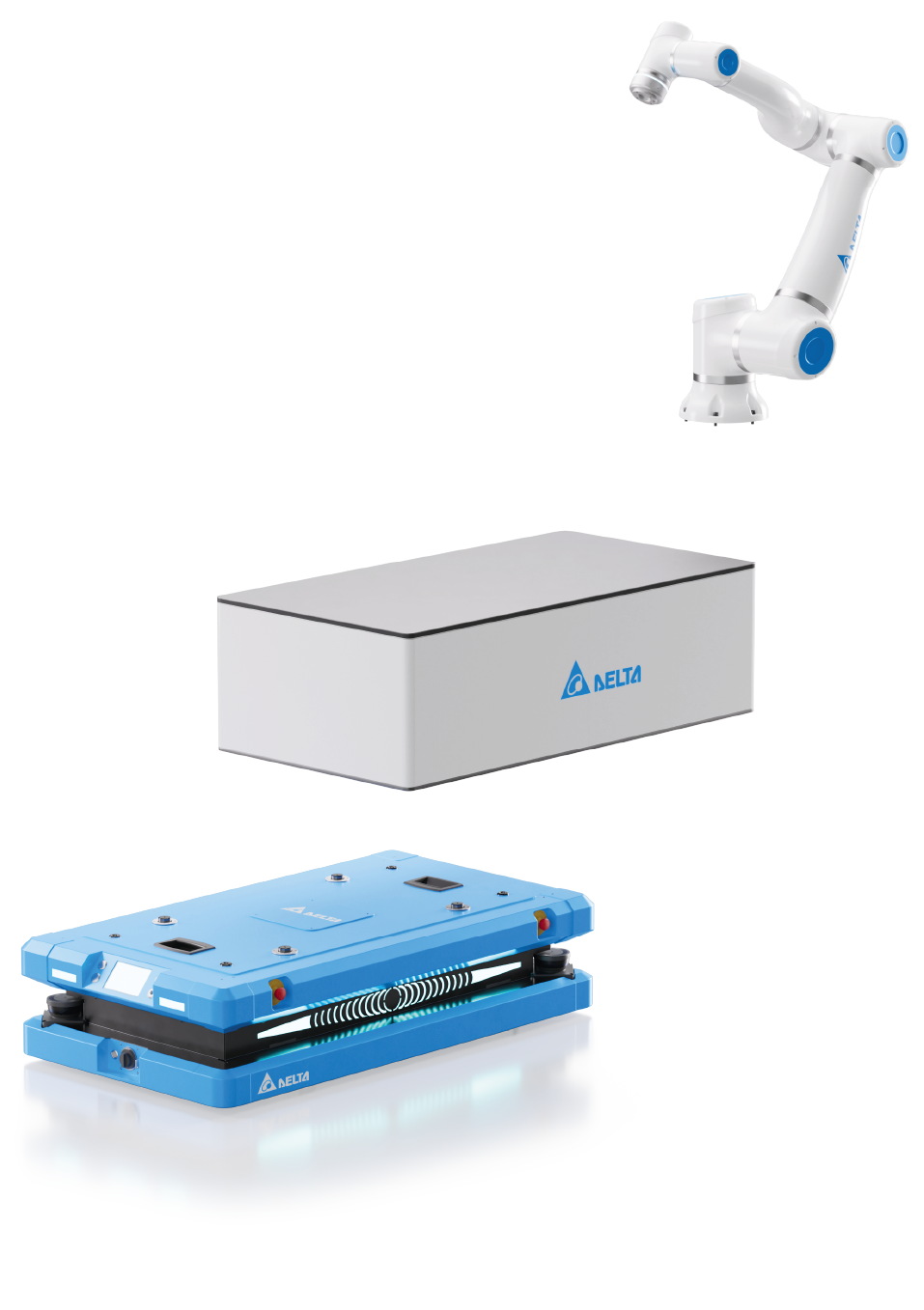

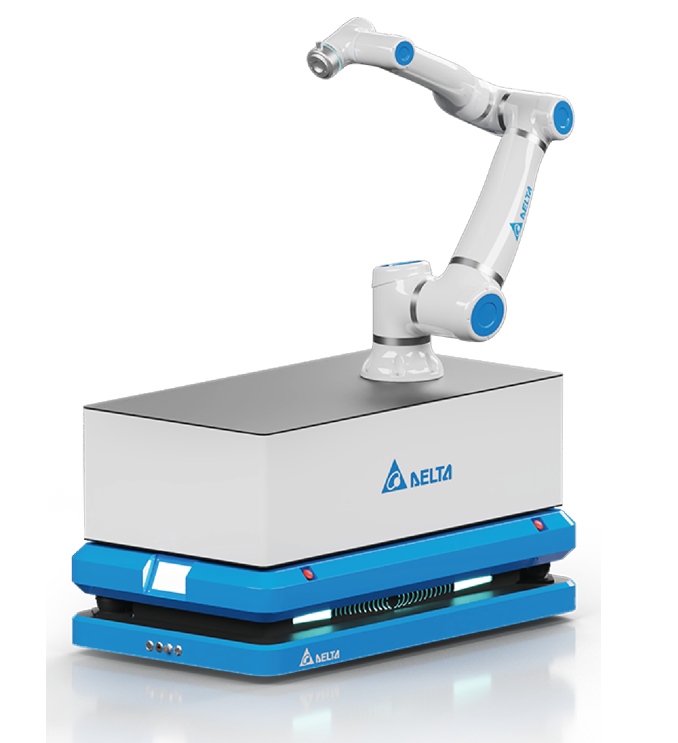

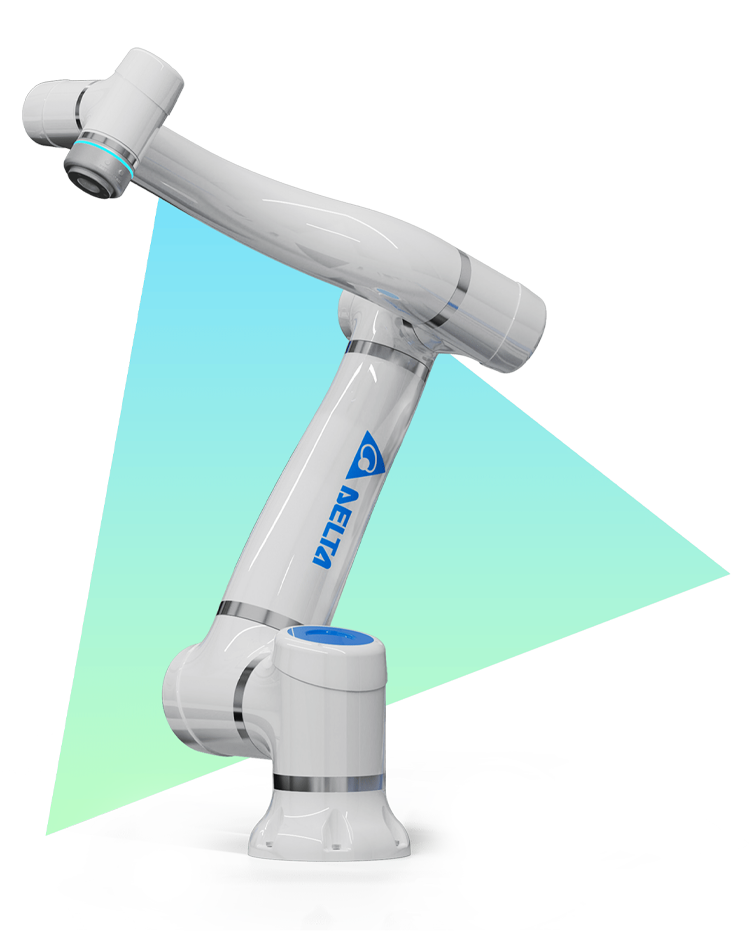

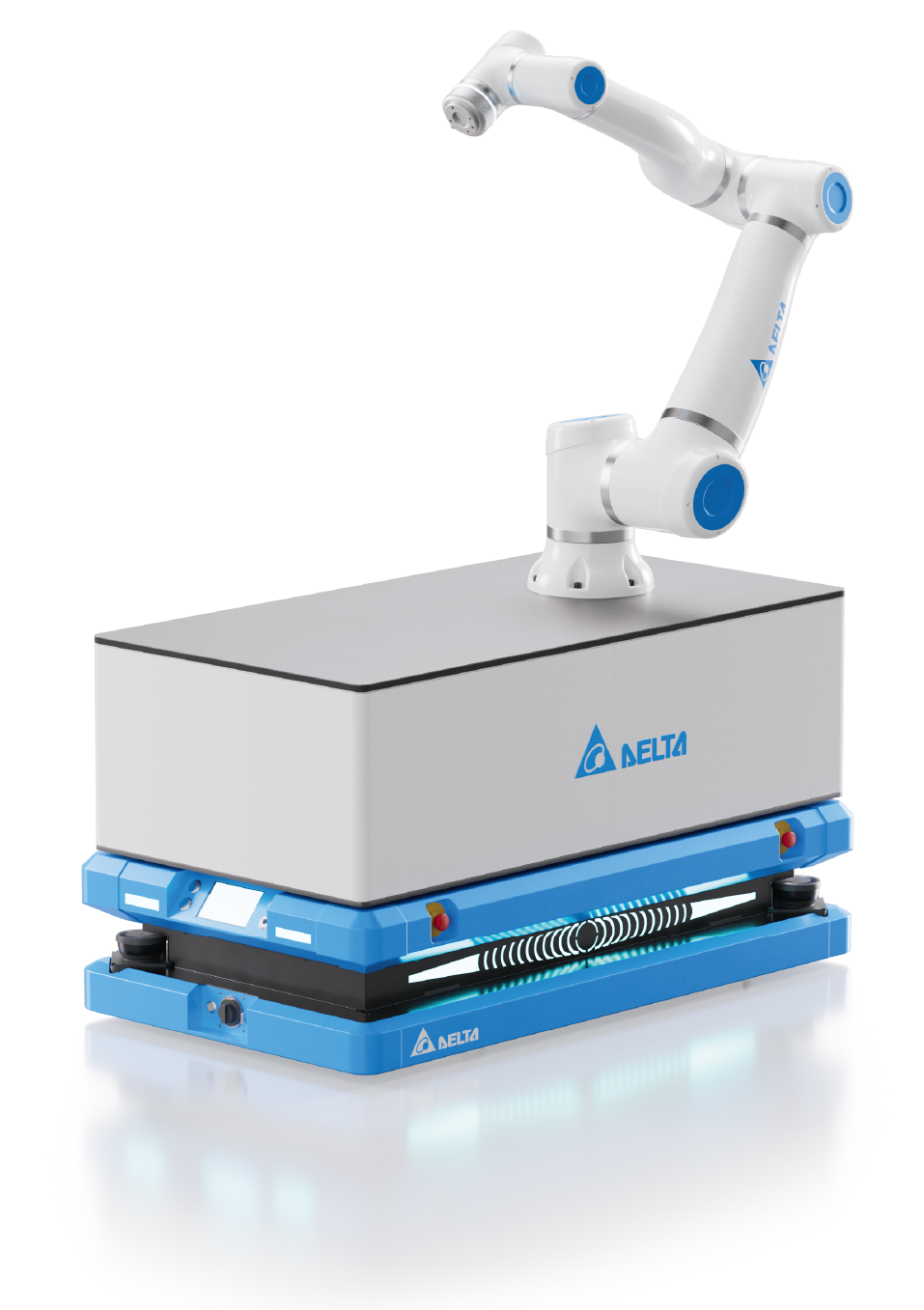

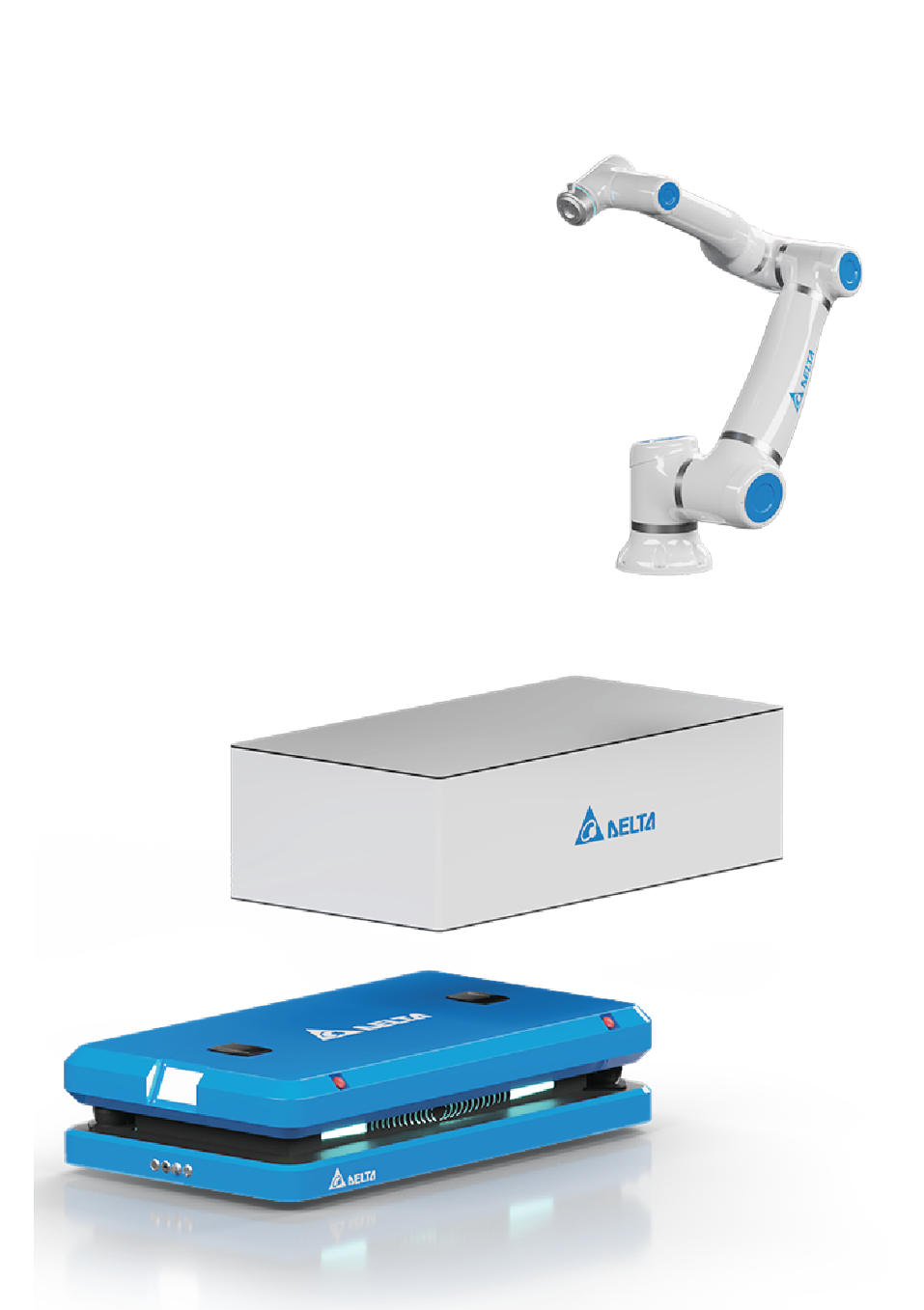

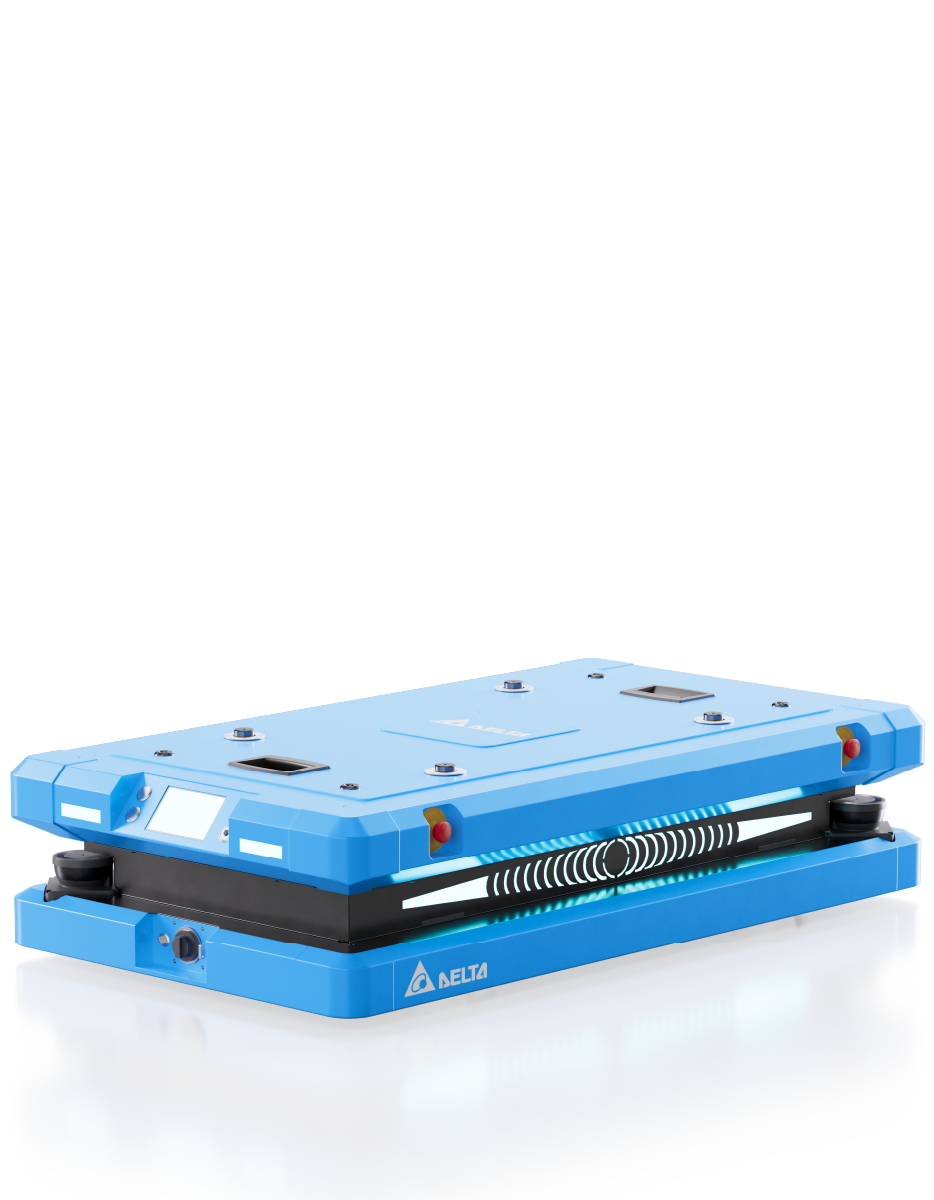

Dock or undock the cobot arm in seconds to switch between precision manipulation and autonomous transport, so you stay agile as production demands change. Leave the D-Bot and its battery at any workstation while the MAR base carries on with full capacity, ensuring both units are always working at peak capacity.

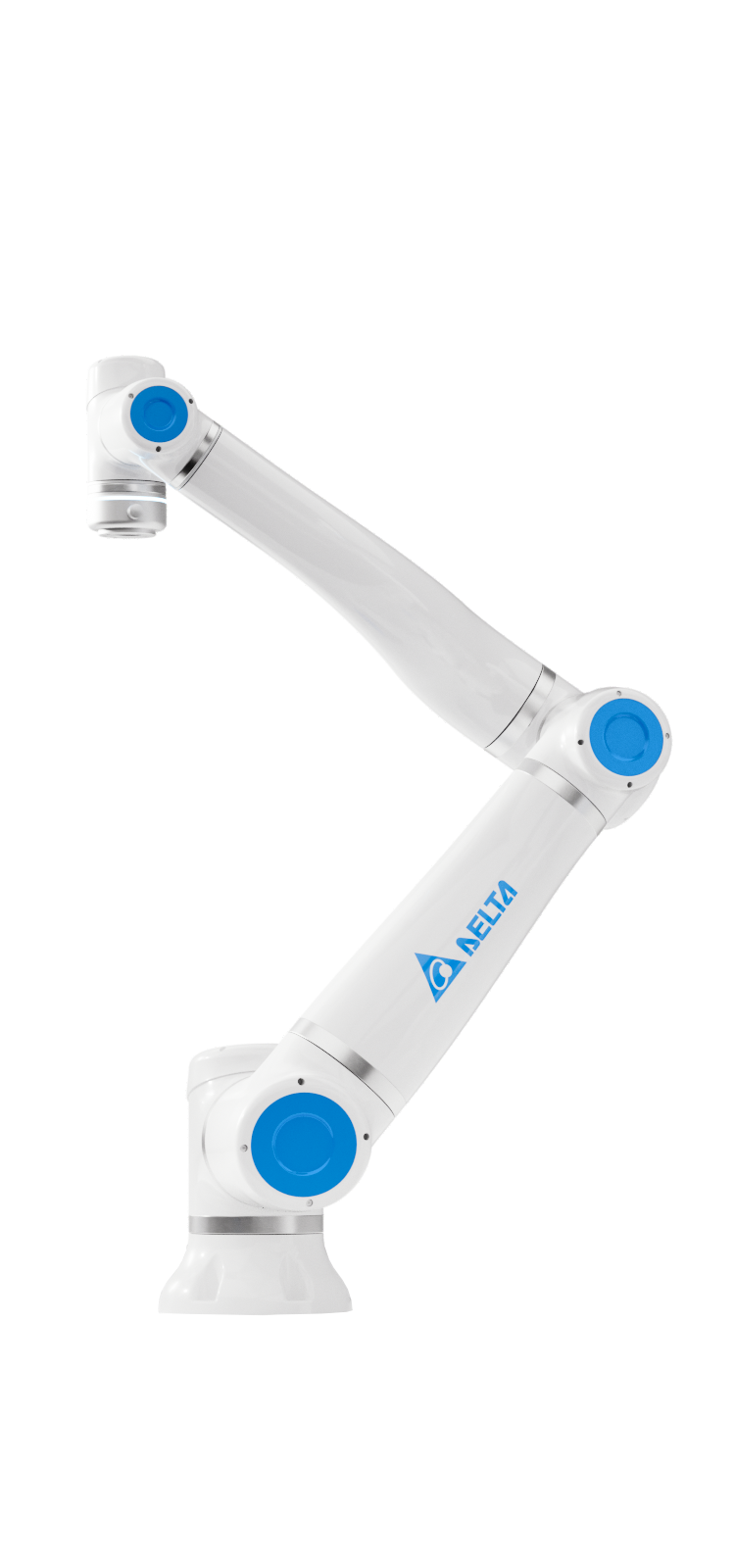

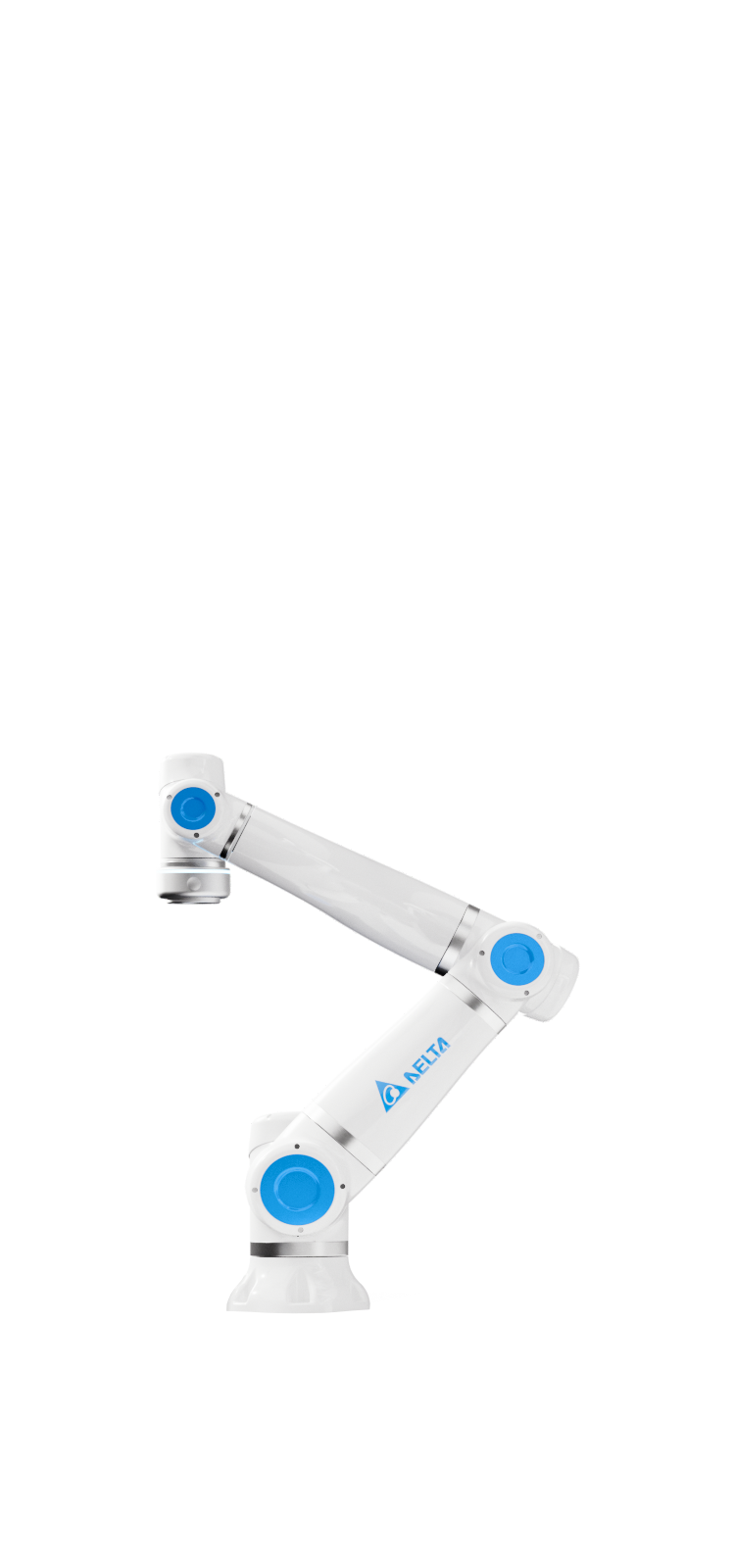

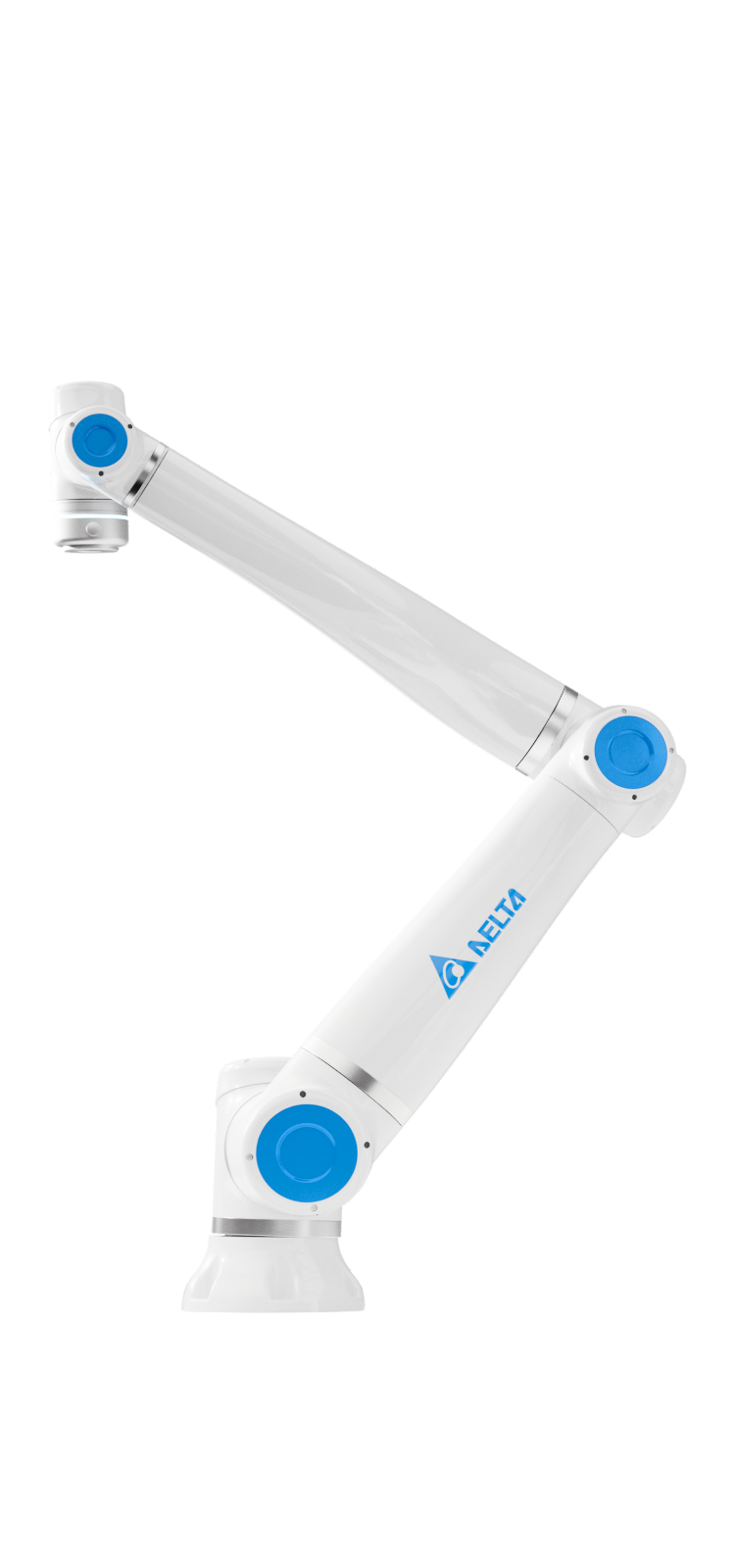

| Specifications | DC06 | DC08 | DC10 |
|---|---|---|---|
| Payload | 6 kg | 8 kg | 10 kg |
| Reach | 800 mm | 1300 mm | 1200 mm |
| Max. TCP Speed | 2 m/s | 3 m/s | 3 m/s |
| Pose Repeatability | ±0.02 mm | ±0.02 mm | ±0.02 mm |
| Weight | 24 kg | 40 kg | 39 kg |
