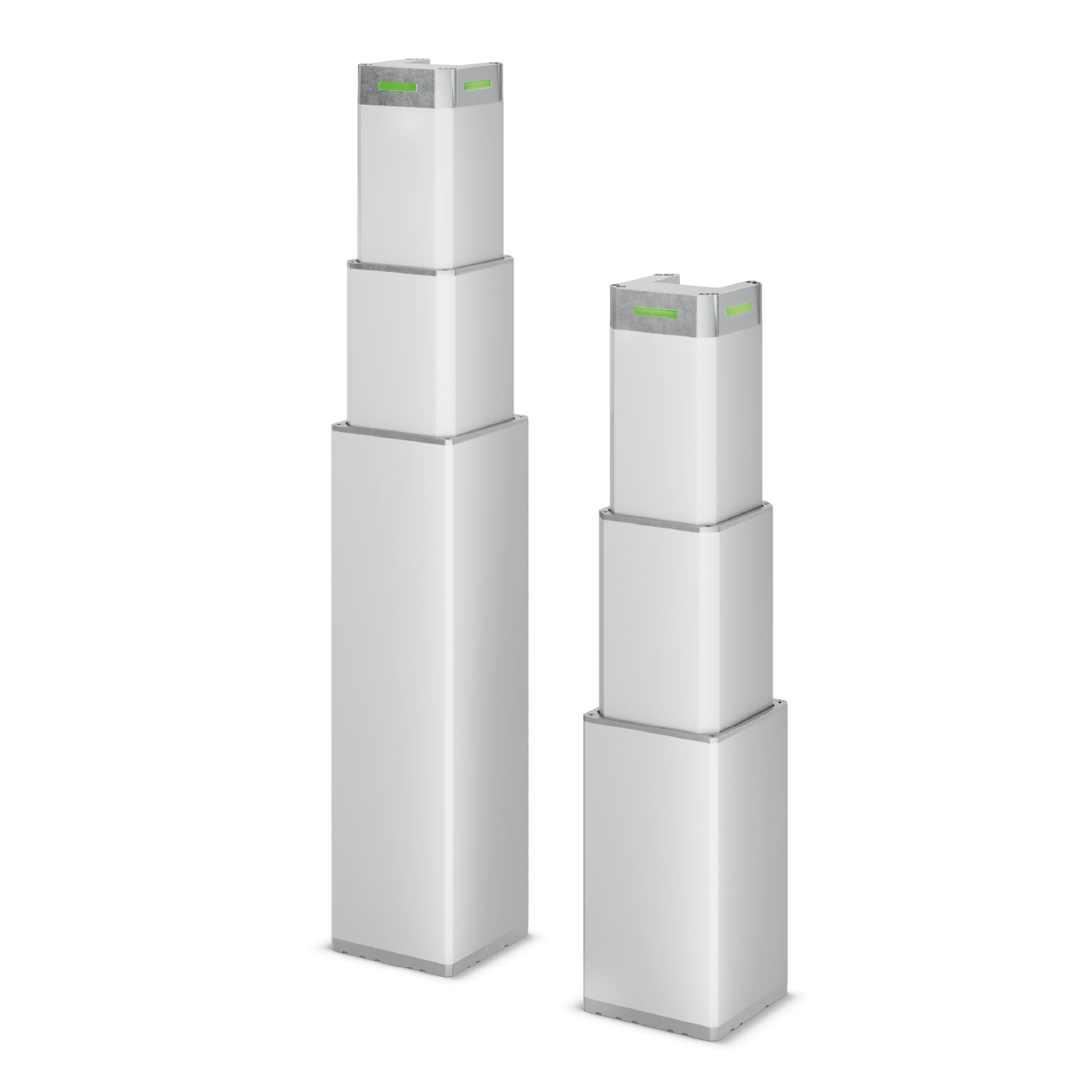

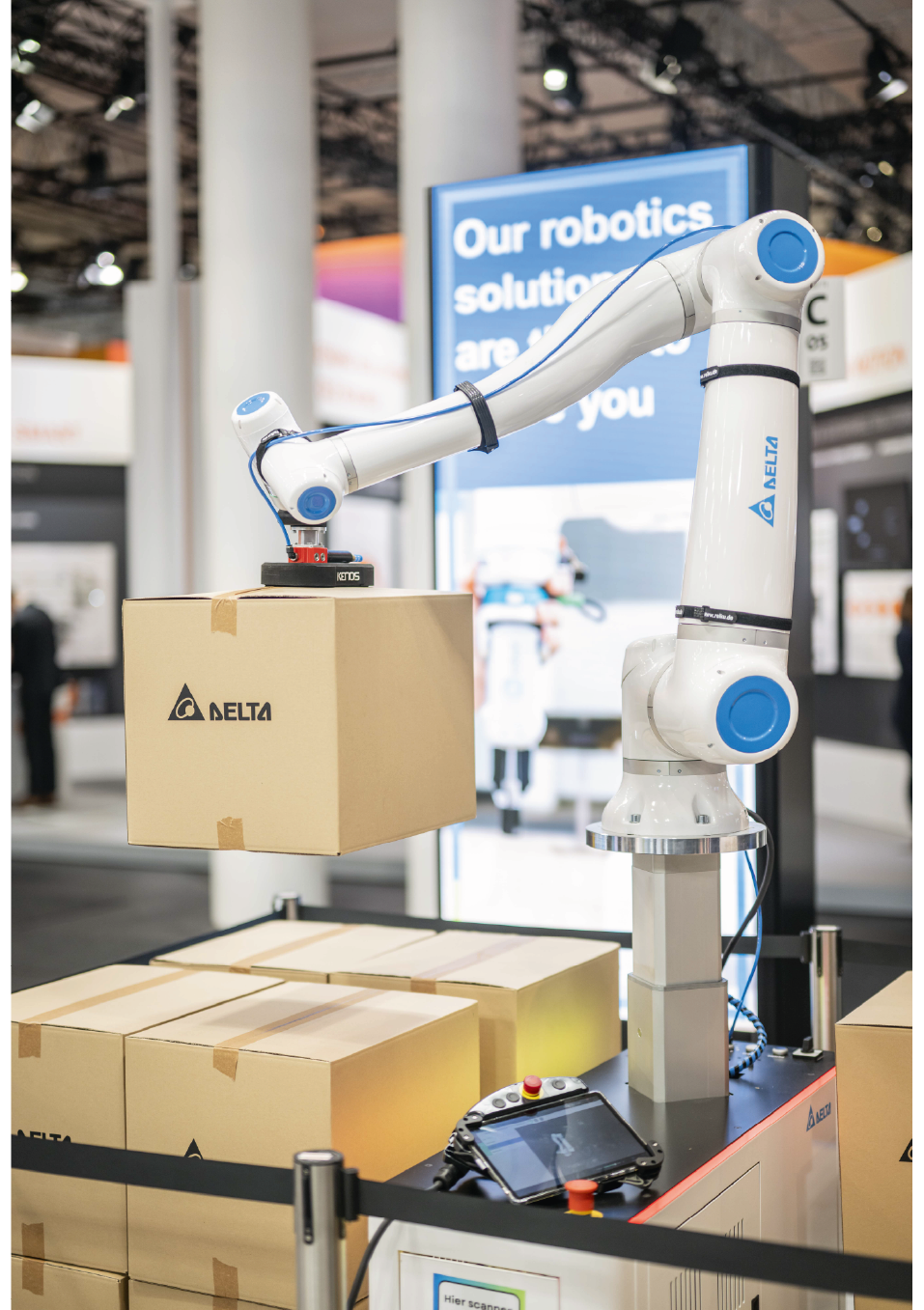

| Load Capacity |
Compression load: 4,000 N / 5,000 N / 6,000 N
Tension load:
4,000 N
|
| IP Classification |
IPX4 (standard), IPX6 (optional) |
| Motor |
24 V DC
Type G: for use with LINAK control unit
Type B:
for use with customer’s own control unit
|
| Stroke Length |
3‑part: 400–700 mm in 50 mm increments
200–700 mm in 1 mm
increments (on request)
2‑part: 200–700 mm in 50 mm increments
200–700 mm in
1 mm increments (on request)
|
| Installation Dimensions |
3‑part: S/2 + 120 mm (min. 320 mm) OR S/2 + 240 mm (min. 440
mm)
2‑part: S + 180 mm (min. 320 mm) OR S + 250 mm (min. 390 mm)
|
| Positioning Options |
Dual‑Hall, Potentiometer |
| Noise Level |
50 dB (A) |
| Weight |
16.4 kg (installation length 320 mm, 3‑part) |
| Safety Features |
Safety nut (standard)
Built‑in electrical end switches:
coded signal switch for LINAK CO control unit
Current cut‑off with Motor Type G
for LINAK CBJC control unit (special order)
Current cut‑off with Motor Type B
for customer control units
|
| Safety Factor |
Compression: see LC3 safety factor diagram
Tension: SF5
|
| Bending Moment (Dynamic) |
3‑part: up to 1,400 Nm
2‑part: up to 2,100 Nm |
| Bending Moment (Static) |
3‑part: up to 3,000 Nm
2‑part: up to 3,000 Nm |

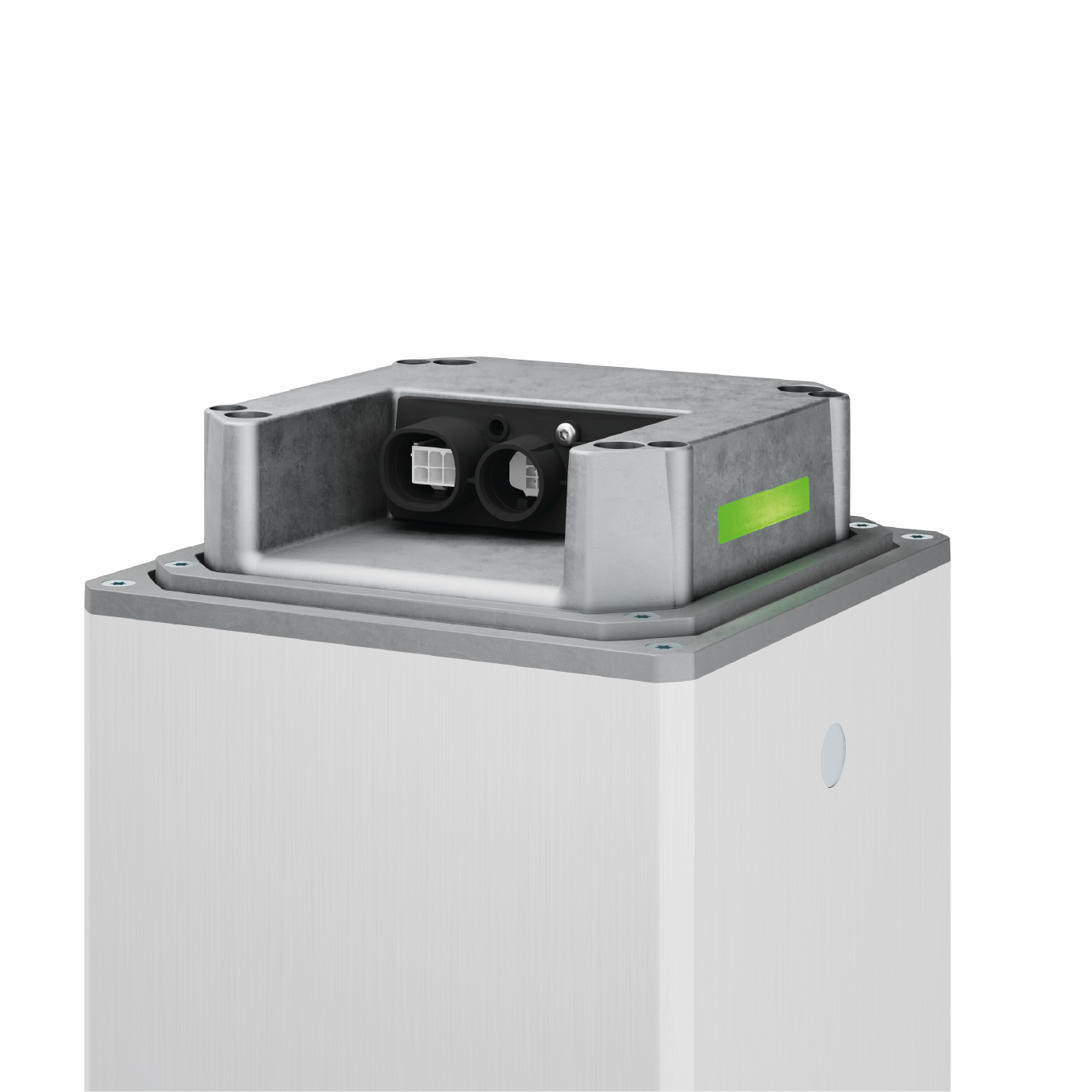

| Cabling |
Optional grounding cable
Cable routing through column for
mains cable, handset cable, motor cable
|
| Mounting Direction |
Large profile at bottom or large profile at top |
| Accessories |
Mounting holes for brackets (on request) |
| Duty Cycle |
10% (2 min. continuous operation followed by 18 min. rest) |
| Operating Temperature |
+5 °C to +40 °C |
| Storage Temperature |
–40 °C to +70 °C |
| Compatibility |
Compatible with LINAK control units (please contact LINAK) |
| Approvals |
IEC 60601‑1
IEC 60601‑1‑6
ANSI/AAMI ES60601‑1
CAN/CSA‑C22.2
No. 60601‑1
|
