OnRobot

VGC10

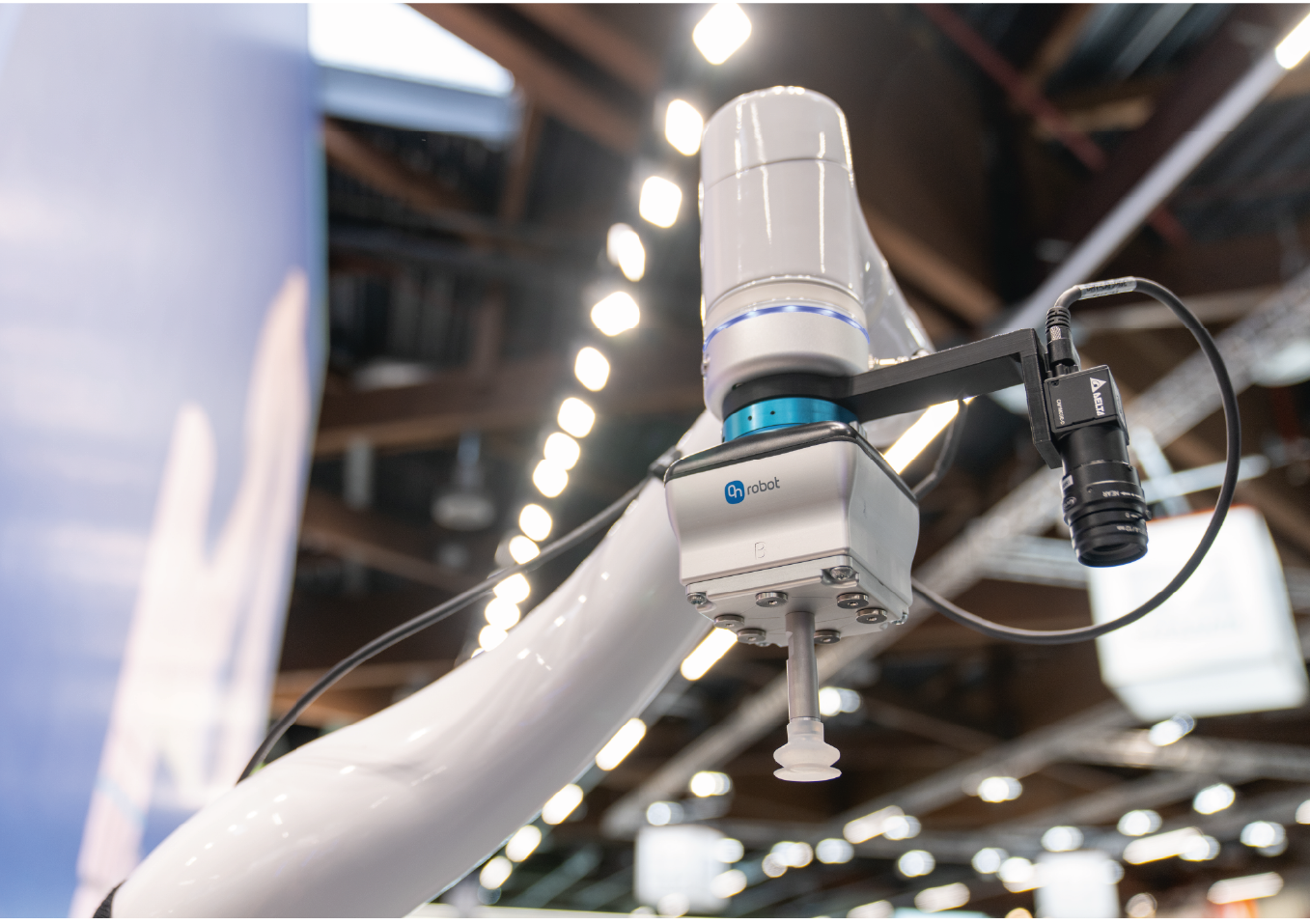

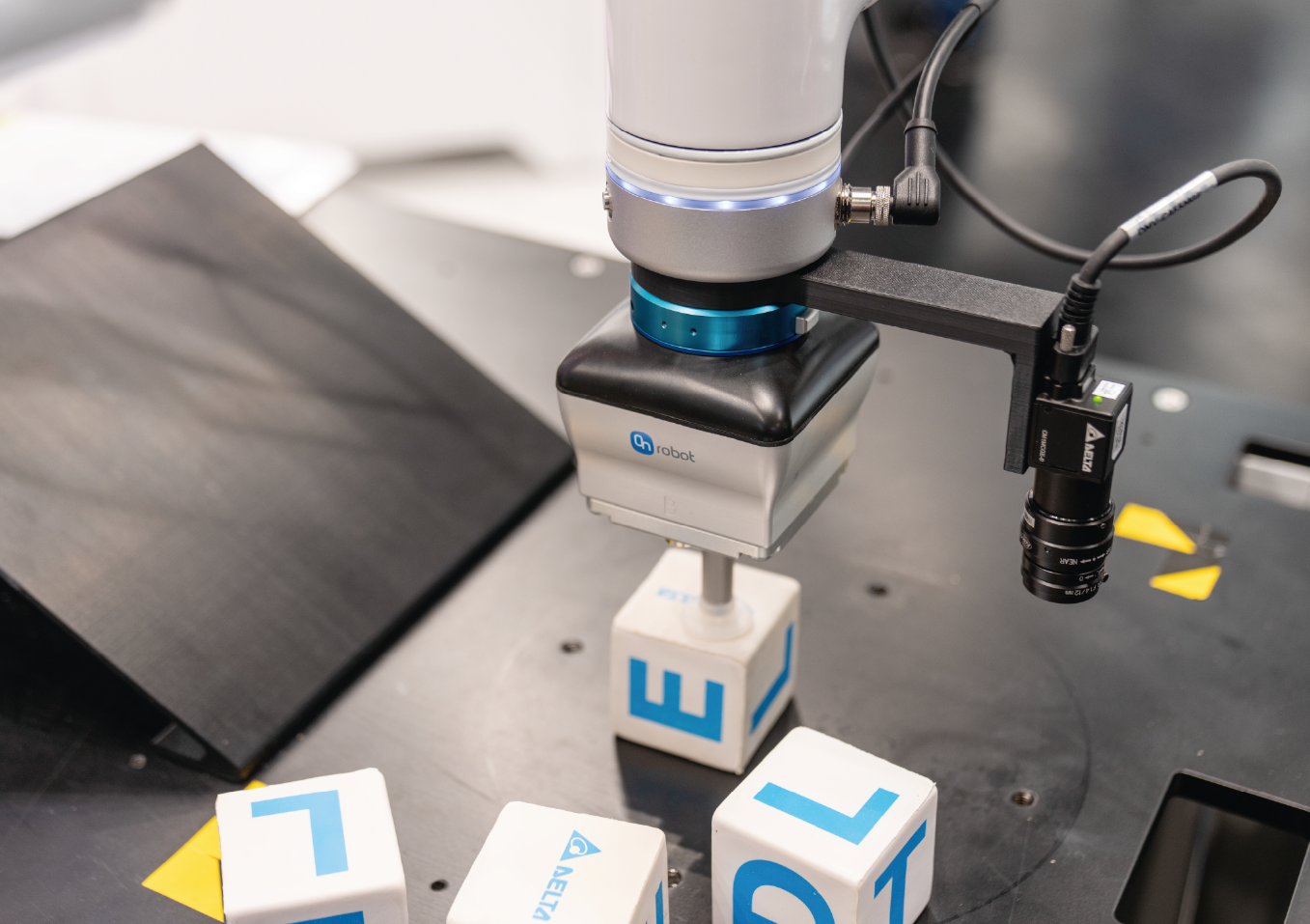

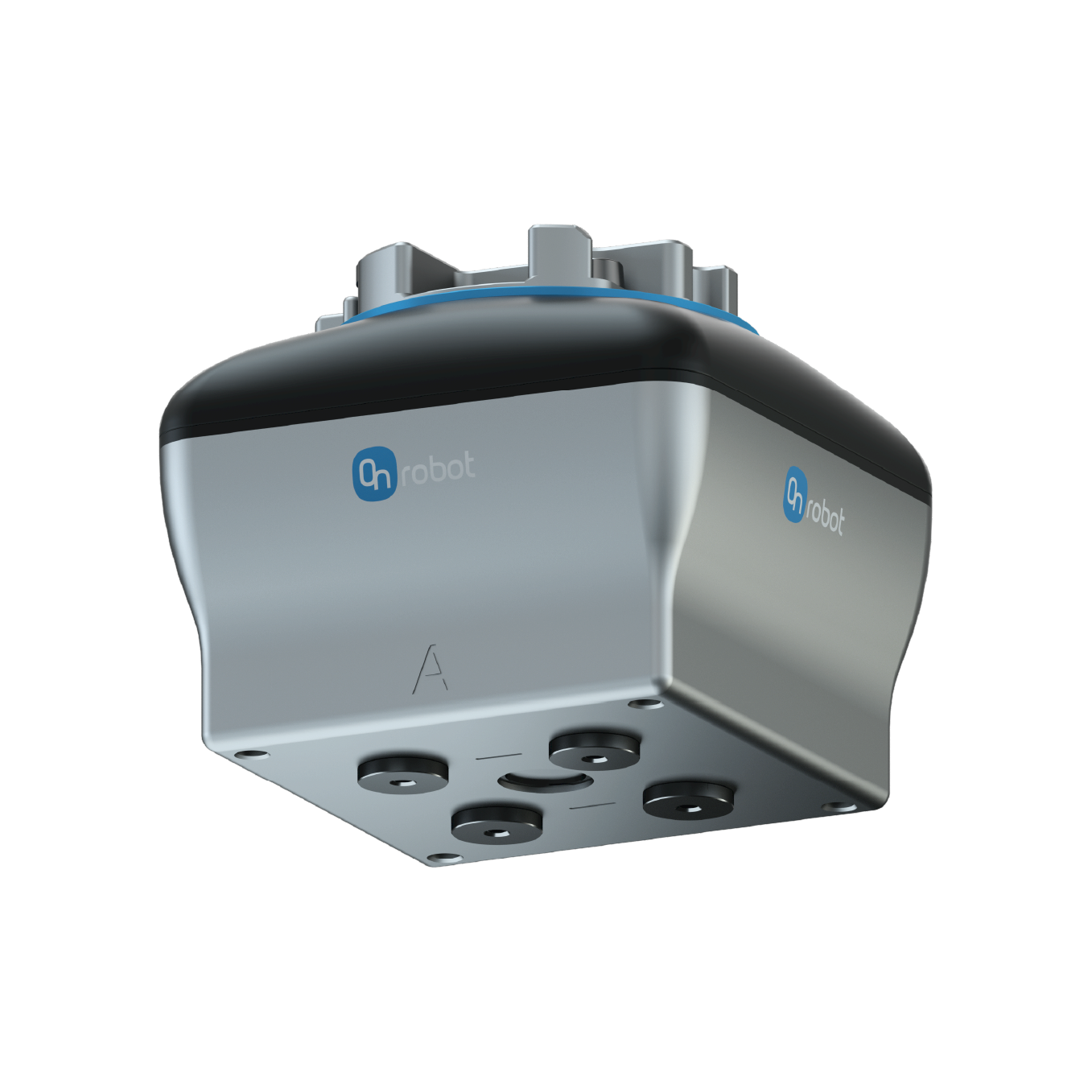

Compact electric vacuum gripper offering adjustable suction across seven configurable cups. Ideal for packaging and machine tending where flexible gripping and quick setup are essential. Runs on 24 V with an integrated electric BLDC pump.

  • Payload 6–15 (kg)
  • Configurable suction cups
  • Independent air channels for dual gripping
  • Built‑in electric vacuum
Target audience
Target Audience
  • Compact, flexible, high-density product lines
Use case
Use Case
  • Material handling
  • Machine tending
Request a quote
Specifications
Category
VGC10
Overview
Payload (kg) 6–15
Weight (kg) 0.814
Dimension (mm) 101 x 100 x 100
Vacuum pump Integrated, electric BLDC
Vacuum Cups 7
Compressed air flow (L/min) n/a
Compressed air pressure (bar) n/a
Performance
Min. Operating Temp. (°C) 0
Max. Operating Temp. (°C) 50
Vacuum (bar) -0.05 – -0.810
Air flow in total (L/min) 12
Air Flow each channel (L/min) n/a
Releasing time (ms) 20
Gripping Time (ms) 35
Noise Level (dB(A)) n/a
Interface
Supply voltage 24
Max. Current (mA) 1500
Communication —
Mounting Interface —
Properties
IP classification IP54
Dust filter Integrated 50µm, field replaceable

Download

Download PDF
OnRobot VGC10
Download the OnRobot VGC10 Datasheet here
