SMC

ZXPE5

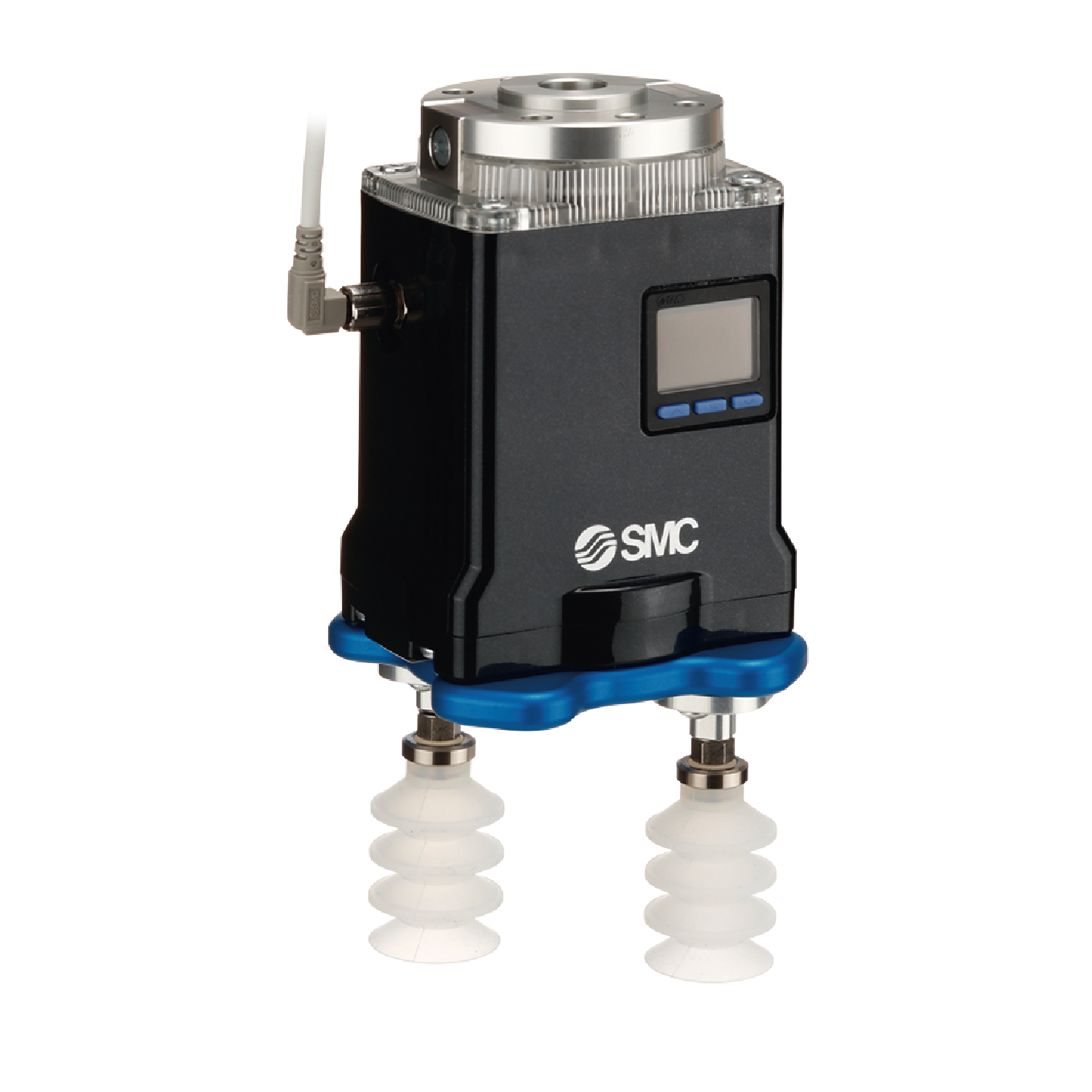

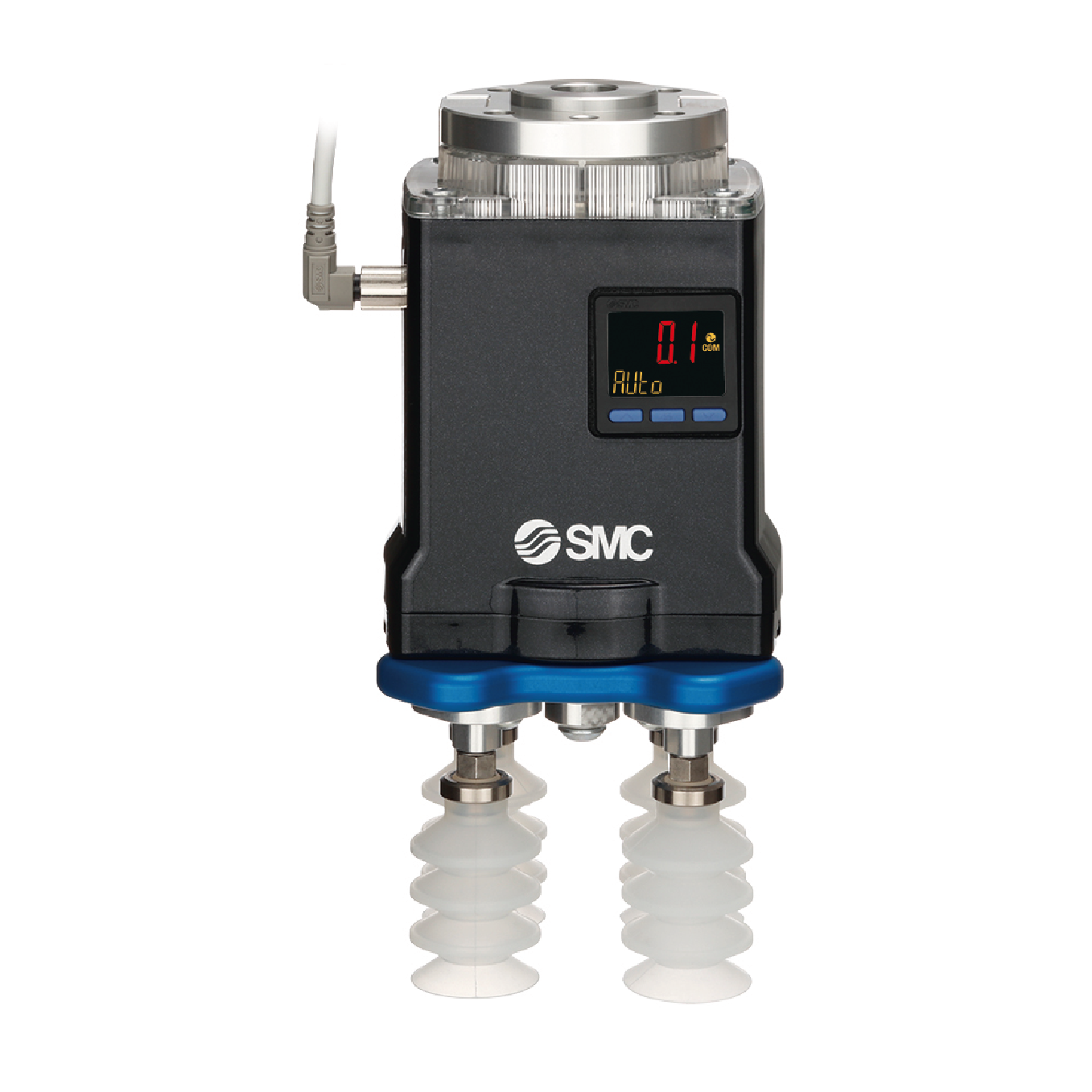

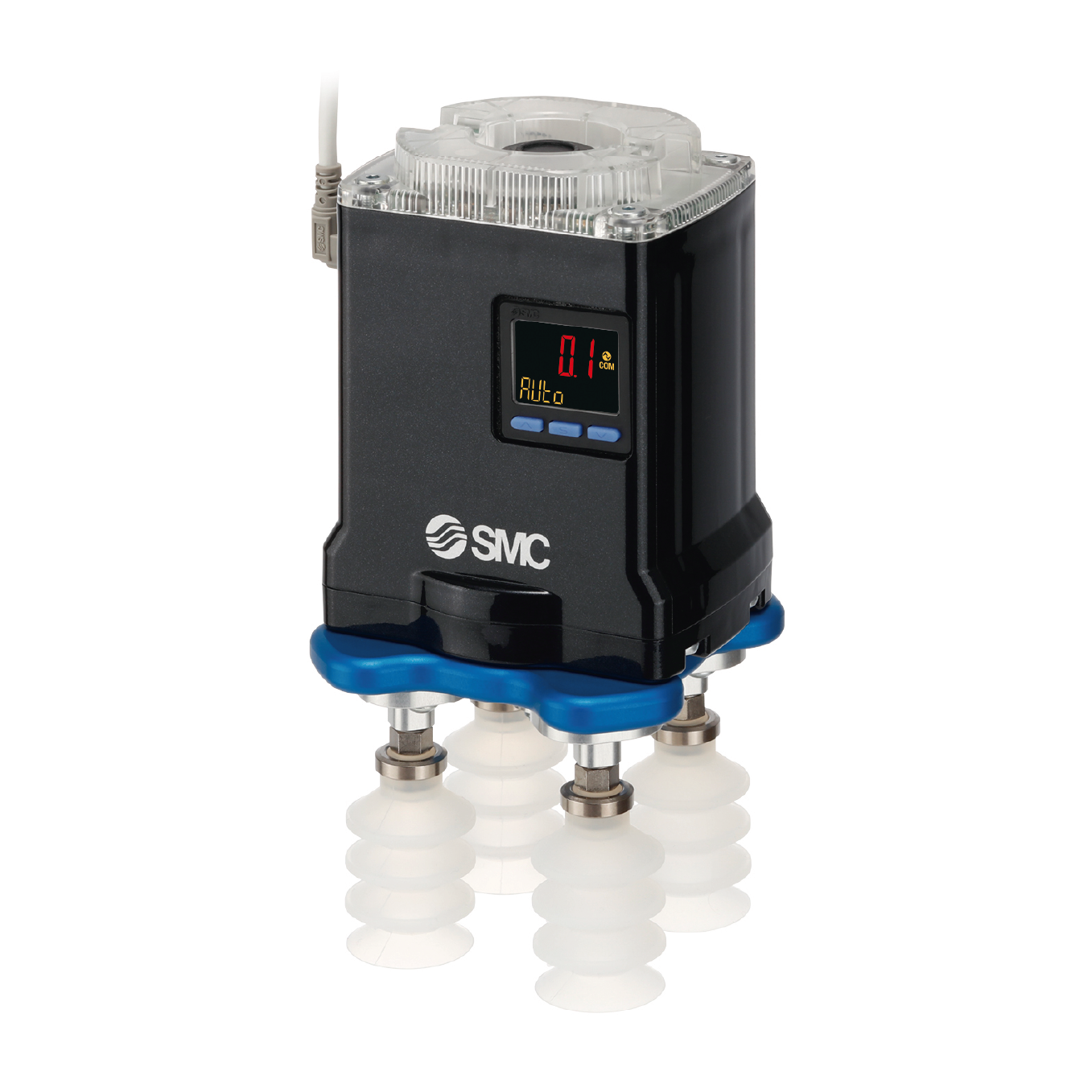

Electric vacuum gripper unit for collaborative robots. The ZXPE5 from SMC is a reliable, smart solution for pneumatic applications and automation processes. With its robust design, easy handling, and precise control, it enhances the efficiency and durability of your systems.

360° LED operating status display
Equipped with a diagnostic function for status monitoring
3 operating modes
Integrated manual tool change system
Already integrated on our Delta cobots
Very compact design

Specifications

Overview
Payload (kg)	5
Weight (kg)	0,556
Dimension (mm)	83.9 x 63 x 184
Vacuum pump	Electric
Vacuum Cups	1-4
Compressed air flow (L/min)	n/a
Compressed air pressure (bar)	n/a
Performance
Min. Operating Temp. (°C)	5
Max. Operating Temp. (°C)	40
Vacuum (bar)	-0,74 (max.)
Air flow in total (L/min)	4.5
Air Flow each channel (L/min)	n/a
Releasing time (ms)	n/a
Gripping Time (ms)	n/a
Noise Level (dB(A))	60
Interface
Supply voltage	24
Max. Current (mA)	1400
Communication	RS-485 Modbus RTU, I/O
Mounting Interface	M8, 8-pin (male connector)
Properties
IP classification	n/a
Dust filter	Integrated

Best paired with

DC 06

DC 08

DC 10

DC 16

DC 20

DC 30

SMC Deutschland GmbH, operating in Germany since 1978, is a leading manufacturer, partner, and solutions provider for pneumatic and electric automation technology, headquartered in Egelsbach. It is part of SMC Corporation, founded in Japan in 1959, which operates in 80 countries worldwide with 32 production facilities. With over 820 employees in Germany, SMC has been successfully serving customers across all industries for decades. Its product portfolio includes more than 12,000 base models and over 700,000 variants for customized solutions.
