LWR HRC03

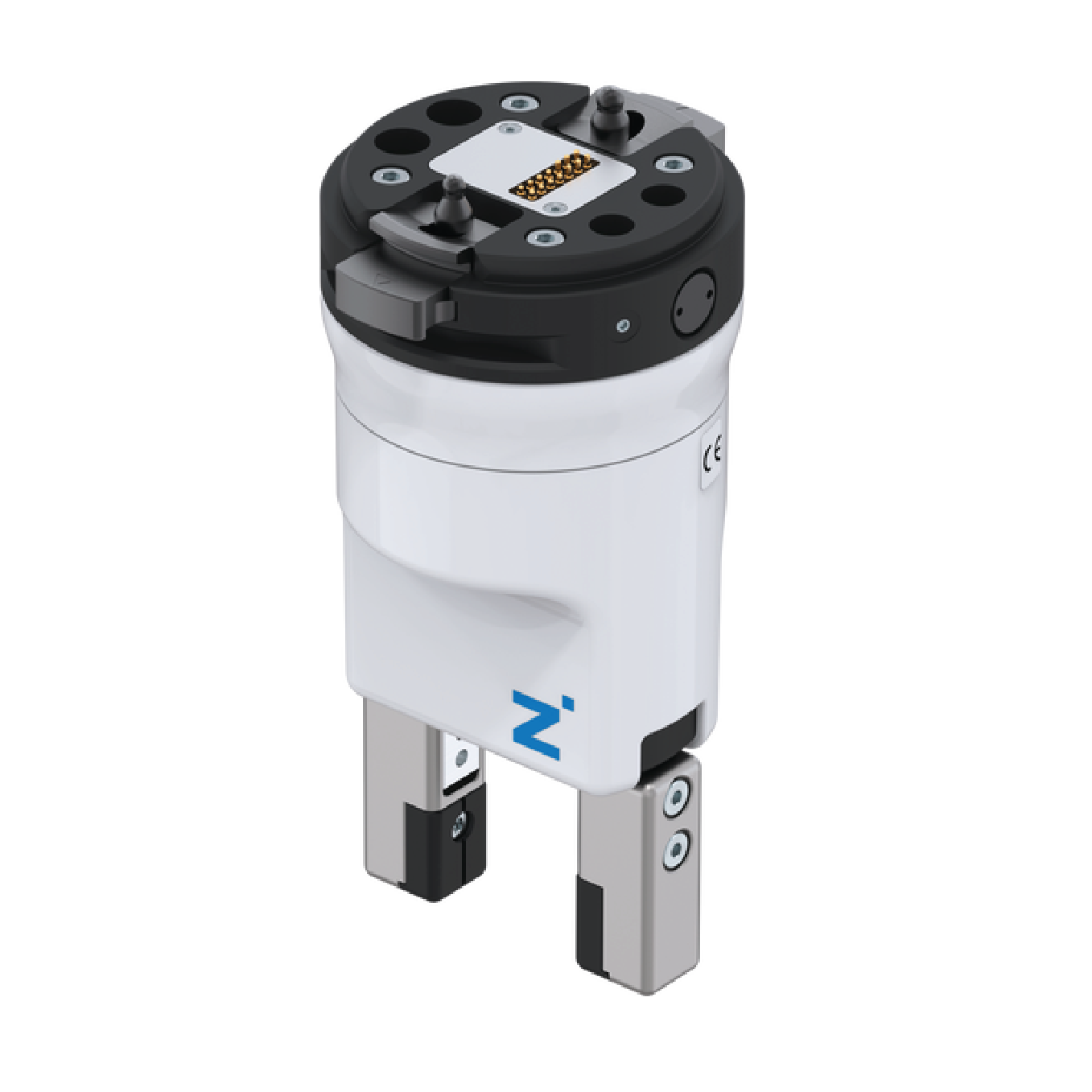

The LWR HRC03 series 2‑jaw parallel gripper is a compact, electrically driven gripper designed specifically for safe and efficient human‑robot collaboration (HRC). It combines high precision, maximum safety, and flexibility in a compact design – ideal for collaborative robot solutions in virtually any industry.

DGUV‑certified collaborative gripper
Largest stroke in a compact design
Positioning via IO‑Link

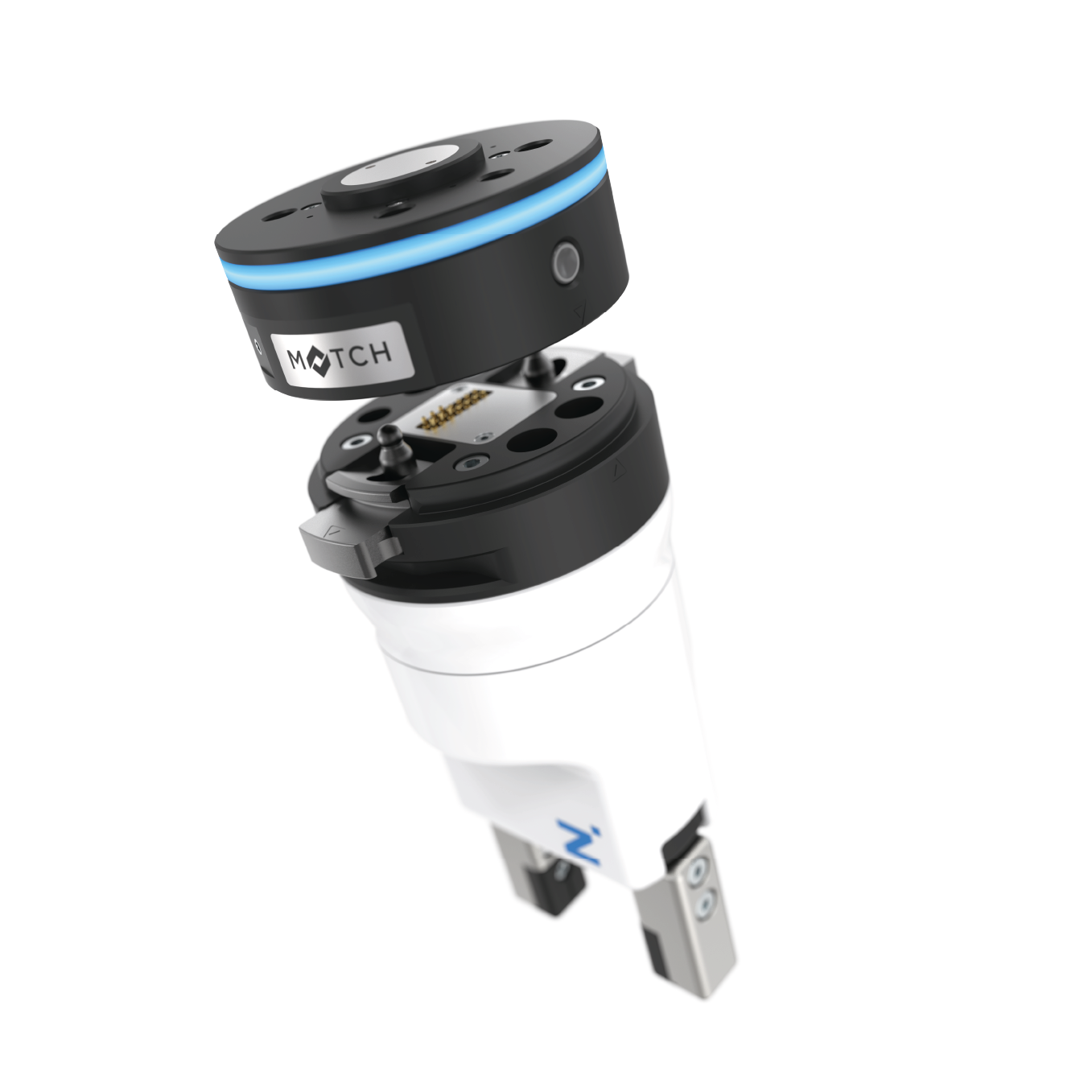

Compatible with Match robot modules (Digital I/O, IO‑Link, RS485)

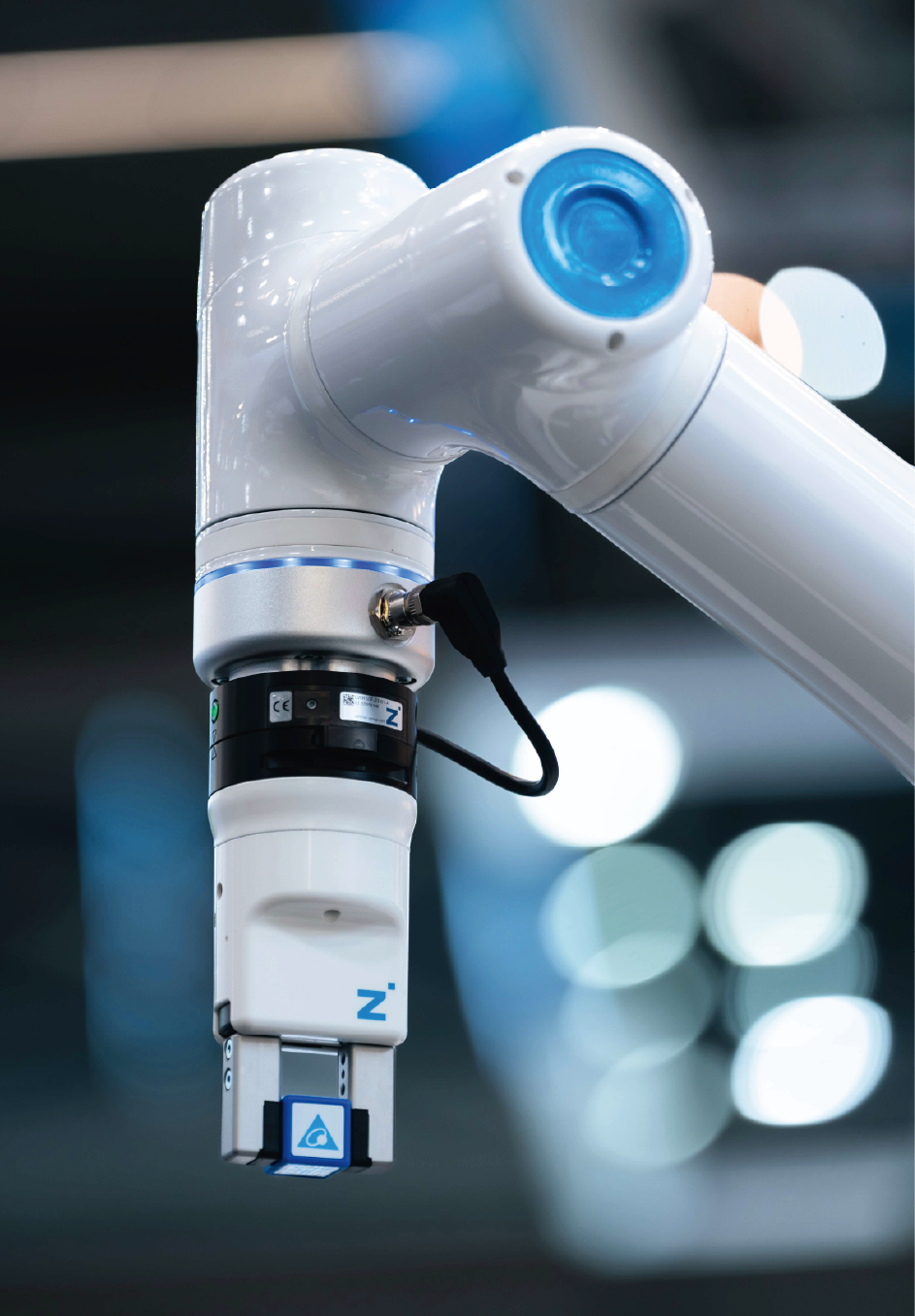

Already integrated on our Delta cobots
Four manually adjustable gripping force levels

Get a Quote

Target Audience

Collaborative robotics in medical technology, lab automation, assembly, the electronics industry, or for training cells

Use Case

Pick & place
Collaborative workpiece assembly

Specifications

Category	LWR HRC03
Overview
Payload (kg)	—
Weight (kg)	0,76
Dimension (mm)	—
Number of Fingers	2
Operating Mode	Electric
Performance
Min. Operating Temp. (°C)	5
Max. Operating Temp. (°C)	50
Stroke (mm)	10 per jaw
Max. Gripforce (N)	190
Closing Time (mm/s)	190
Repetability	0,05
Interface
Supply voltage	24
Max. Current (A)	1
Communication	I/O / I/O Link
Mounting Interface	—
Properties
IP classification	IP 40
Clean room	n/a

Best paired with

DC 06

DC 08

DC 10

DC 16

DC 20

DC 30
