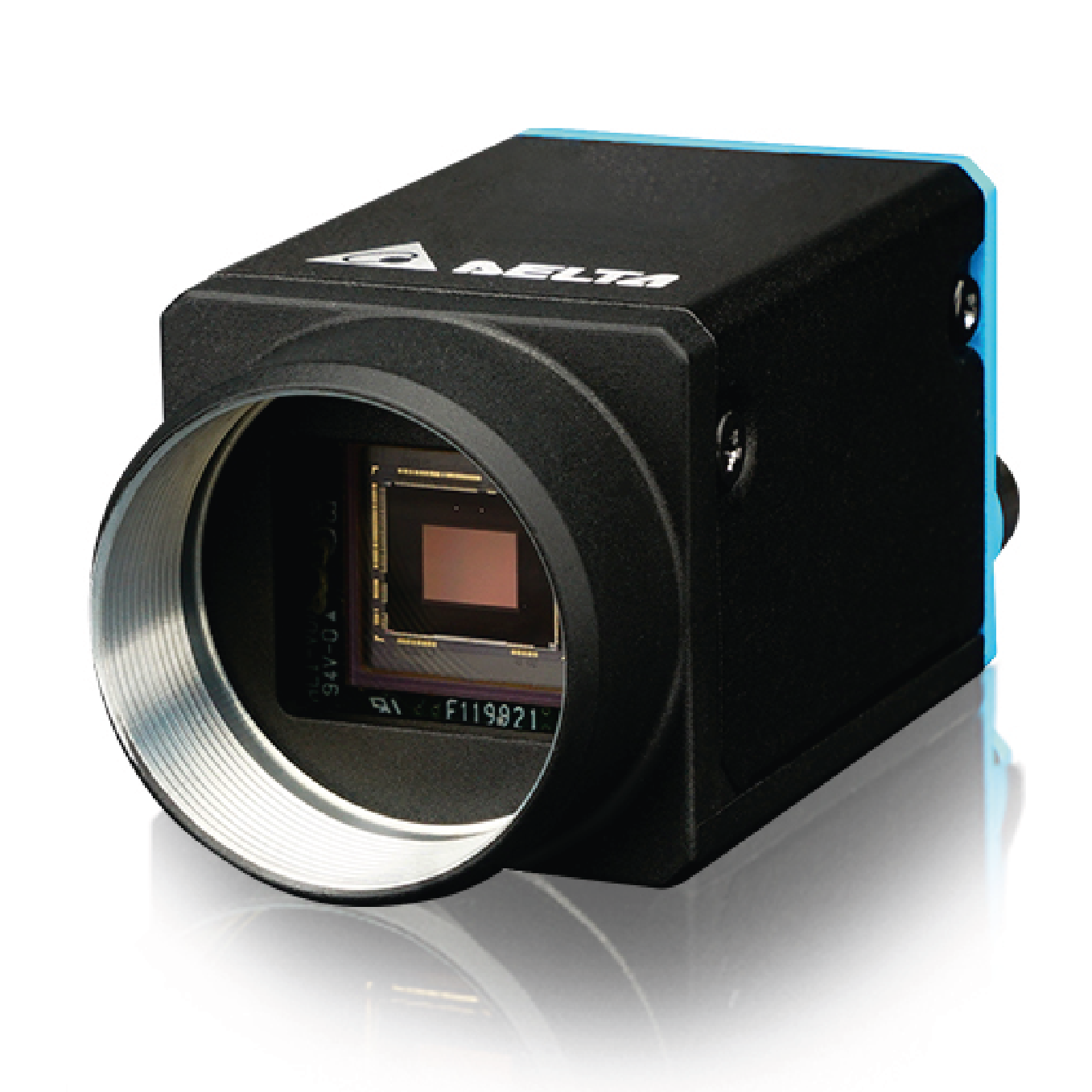

• Delta DMV‑C Series view 1

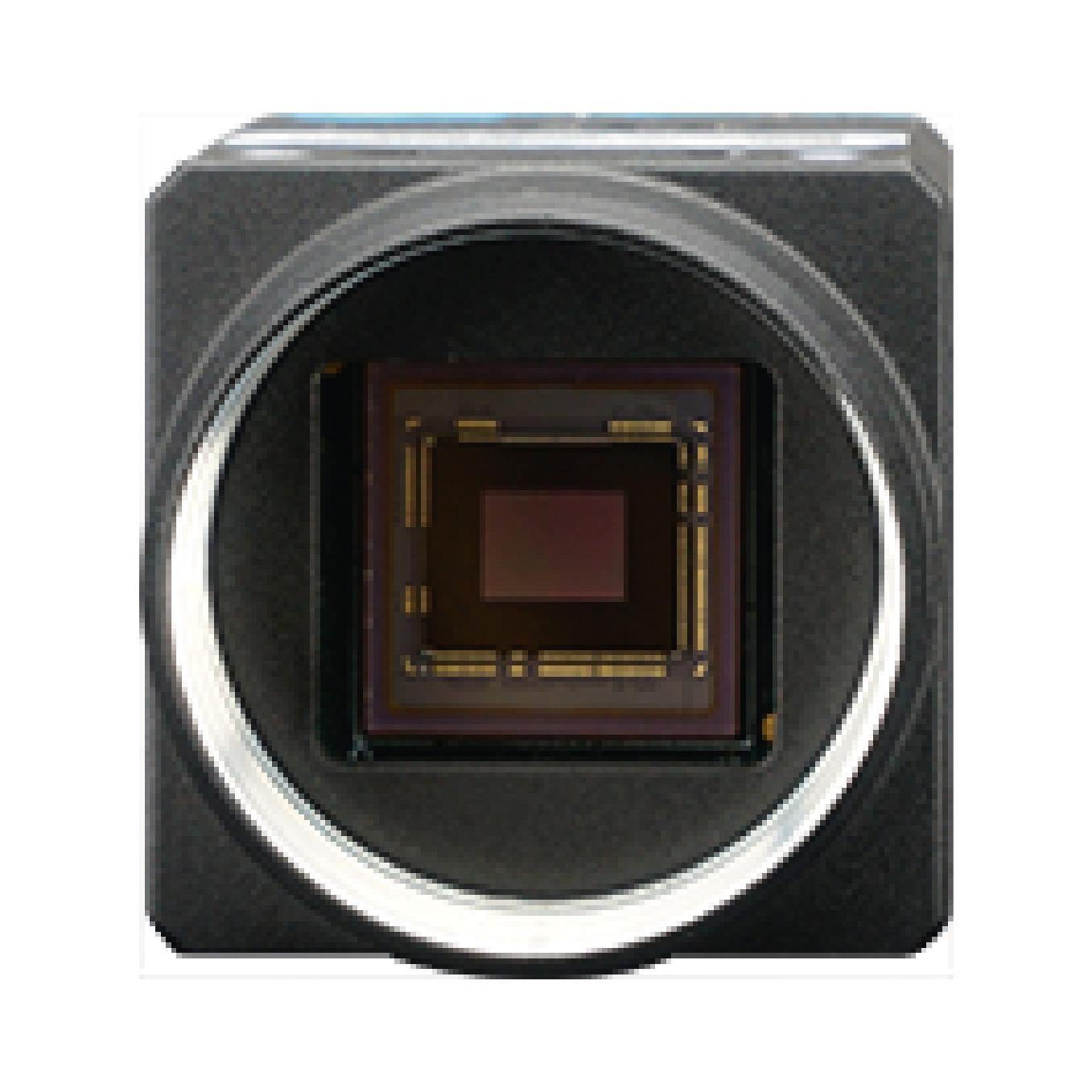

  • Delta DMV‑C Series view 2

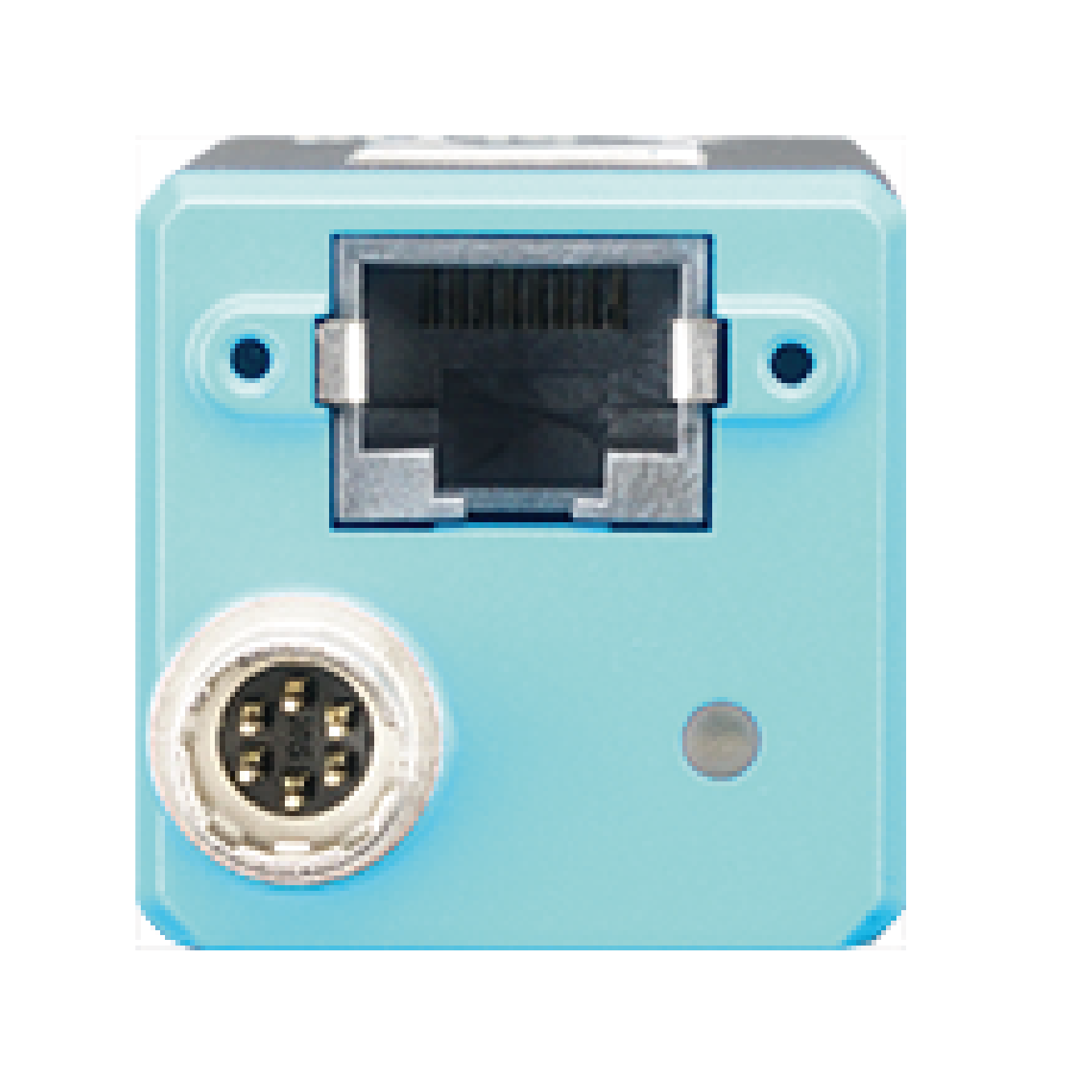

  • Delta DMV‑C Series view 3

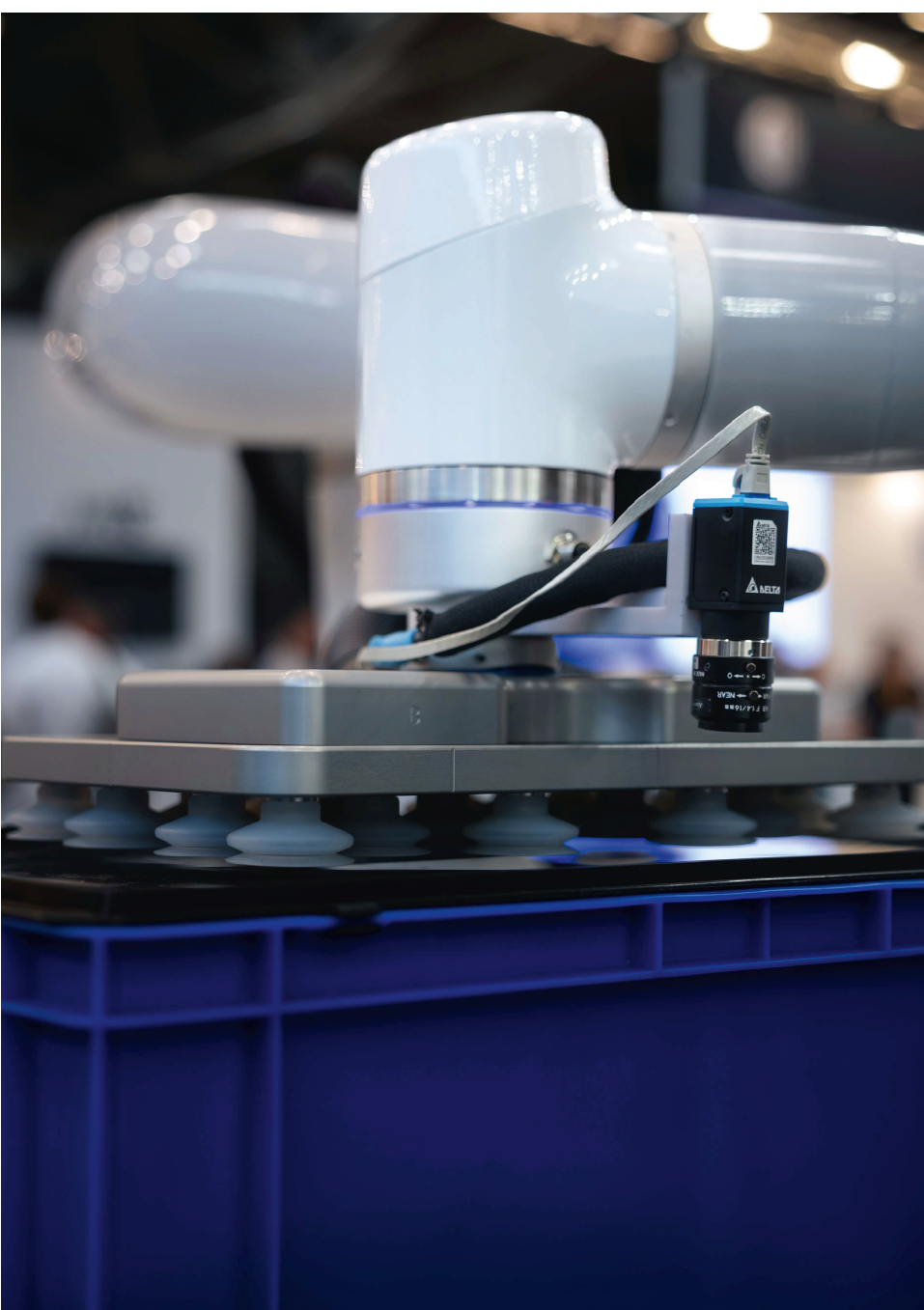

  • Delta DMV‑C Series view 4
Delta Electronics

DMV‑C Series

The DMV‑C Series Industrial Cameras deliver flexible imaging with multiple resolutions, monochrome/color models, and global or rolling shutters for static or dynamic capture. Featuring GigE Vision with 1 Gbps Ethernet, GenICam compliance, and a 6‑pin I/O port, they enable fast transfer, easy configuration, and versatile integration for industrial applications.

  • Supports both static and high‑speed dynamic image capture
  • Fast data transfer: GigE Vision interface with 1 Gbps Ethernet
  • GenICam compliance
Target audience
Target Audience
  • Suitable for various intralogistics and warehouse automation applications
Use case
Use Case
  • High‑speed inspection in manufacturing lines
  • Object recognition and sorting in logistics
  • Precision measurement and defect detection in electronics or automotive production
Get a Quote
Specifications
Specification
DMV‑C Series
Sensing Technology —
Overview
Dimension (L × H × W in mm) 45 × 29 × 29
Power Supply DC 12 – 24V or PoE (IEEE 802.3af)
Protocol —
Power consumption 3.5 W
Overvoltage Category —
Weight 92 g
Temperature Storage: −20–85°C, Operating: 0–45°C
Performance
Working Distance (m) —
FOV —
Resolution 720 × 540 – 5472 × 3648*
Unambiguous Range —
Frame Rate (fps) 5–290 (mono & color)*
Pixel Size (µm) 6.9–2.4
Pixel Format Mono (12,10,8), Bayer (12,10,8) oder Mono (10,8), Bayer (10,8)*
Image Sensor —
Exposure Time 20 µs – 1 s
LD Wavelength —
Shutter Global, Rolling*
GPIO Isolated input ×1, Isolated output ×2
RGB Shutter —
Capture Single, multiple, continuous
Properties
IP Rating IP30
Certification CE, KC, UL, RoHS
Interface
Network 10/100/1,000 Mbps Ethernet, compliant with GigE Vision 2.0 standard
Trigger Software, external input (via I/O connector)
Mount Type C‑Mount connector
Driver DMV‑SDK or 3rd party software compliant with GigE Vision 2.0
Compatible OS Windows 10 x86/x64, Ubuntu 16.04 or above
Connector —

Download

Download
Get a Quote

Best paired with

DC 06DC 06
DC 08DC 08
DC 10DC 10
DC 16DC 16
DC 20DC 20
DC 30DC 30
