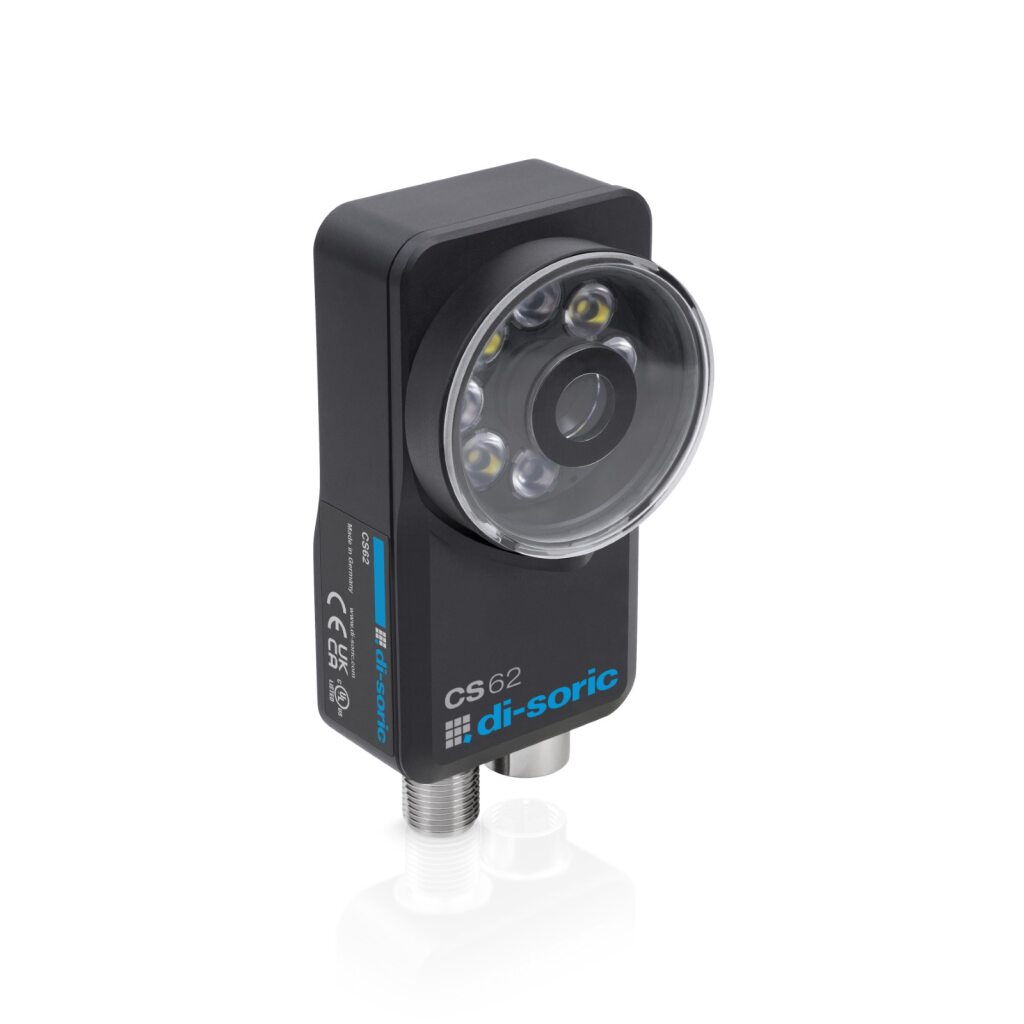

di-soric CS-62 Vision Sensor
di-soric

Vision Sensor CS-62

CS62 the compact vision sensor for ultimate flexibility: Featuring interchangeable optics, integrated high-power illumination, and modular software packages, it delivers rapid adaptation to any machine vision task.

  • Compact Design
  • Integrated Illumination
  • Intuitive, Programming-Free Software
  • Upgradeable Modular Software Packages
Target audience
Target Audience
  • Users in industrial automation in the fields of mechanical engineering, system integration, and robotics
  • No programming skills are required
Use case
Use Case
  • Quality Inspection
  • Object Detection
  • Positioning & Guidance (pick-and-place)
  • Measurement
  • Identification (Code Reading)
  • Track and Trace
  • Presence Check
Specifications
Specification
CS-62
Overview
Optical format 1/4"* / 1/2.9"**
Resolution 736 (H) x 480(V)* / 1440 (H) x 1080(V)**
Pixel size (�m) 4.5 x 4.5* / 3.45 x 3.45**
Shutter global
Max. image frequency (fps) 30
Performance
Processor Single core
Processing speed 1x
Properties
Scope of delivery CS-60 Vision sensor, O-S1-S-080-40 lens, lens cap
Housing dimensions H/W/D 85 / 45 / 34 mm
Service voltage 18 to 30VDC
Working distance 1 Vision Sensor with S-mount - 4 lenses: 50 � 1500 mm
Focal length Variable - S-mount: 3.6, 8, 16, 25 mm
Internal lighting Switchable integrated illumination: High Power red, High Power white
Storage / number of jobs 16 GB / to 255
Focusing Variable focus with aperture 4 and 8
Interfaces & protocols Digital I/O, TCP/IP, Profinet, EtherNet/IP (nVision-i Release 24.1 and later)
Digital inputs / outputs 2 + 1 external trigger /4 + 1 ready signal
Image storage Via FTP / manually in the software
Protection class IP67

Download

Download
Vision Sensor CS-62s Datasheet
