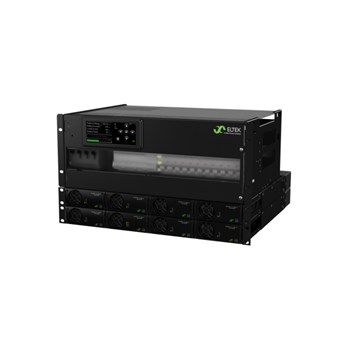

IBF DC/DC-HV

The high voltage industrial bulk feed (IBF) unit is designed for systems with high voltage DC input (85-300 Vdc).

Designed for applications such as switchgear, telecom, emergency lighting and alarm systems. The Power Core is built around the Flatpack2 HE converters, with its compact design and simple installation making it a powerful 19” power supply package.

The IBF unit can be used as a stand-alone system or as an integrated unit together with our Flatpack2 rectifiers. The IBF unit is a part of our IBB (Industrial Building Blocks) product range.

Product Introduction

Key features
  • Compact design
  • Simple installation
  • 85-300 Vdc input
  • House up to 8 converters
  • 2-16kW output
  • Bulk feed output
  • Max 300ADC output
  • Graphical 3,2 tft display
  • Ethernet for remote
  • 3 digital inputs
  • 3 relay outputs
  • SNMP protocol with trap
  • Hot pluggable
Specifications
Input
  • Current (maximum)    90 ADC
  • Max input DC Voltage    300 VDC


DC Output
  • Max Power    16000 W
  • Current (maximum)    300 ADC
  • Max voltage    297 VDC
  • Max power    16 kW


DC Load Distribution
  • Breaker positions up to    8
  • Breaker rating up to    32 A



Other
  • Operating temperature    -40 - 45 °C


Dimensions
  • Dimensions WxHxD (mm)    482 x 267 x 432 mm
  • Dimensions WxHxD (inch)    18,98 x 10,51 x 17,01 "
  • Mounting dimensions    19" / 6U / 432 Width (Inch) / Height (U) / Depth (mm)


Design Standards
  • Ingress Protection (IP)    20
