CellD 100

CellD 100

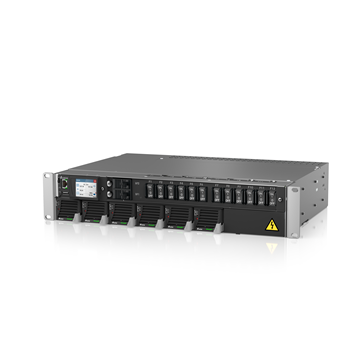

CellD systems are small, just like cells. They can be embedded in the telecom infrastructure and are often used in OutD outdoor solutions. The products in this series are light and designed especially for installations with limited space offering high density of the installed power.

The system includes high efficiency rectifiers, AC and DC connections, battery connection and ORIONtouch controller. In addition to advanced supervision, short depth and easy installation are the success factors of the system.

Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.

Product Introduction

Features & Benefits
  • 19in rack mounted system up to 100 A load current
  • Integrated 1U distribution unit + rectifier shelf 1U
  • High efficiency rectifiers up to 96.4 %
  • All connections easily accessible from the top or optionally on the rear panel
  • All battery and load breakers accessible at the front
  • Sliding mechanism to support easy access to the top output connections
  • Option for enhanced monitoring and controlling



Applications
  • Wireless applications, network base stations, LTE
  • Fixed line applications, broadband services
  • Transmission
Specifications



Max. install power 5.1 kW



19IN-2U rack mounted system Max. output current 100 A
Max. install power 5.1 kW Load breakers 12 x MHCB (2 - 30 A) or Load breakers 4 x MHCB (16 - 100 A)
Max. 6 x Rectifier 850W Battery breakers 2 x MHCB (100 A)
Efficiency 95.2 % Controller ORION Touch
Input voltage 80 VRMS to 300 VRMS EN 62368-1 / EN 300 386
AC configuration 3L + N + PE Weight 7 kg
