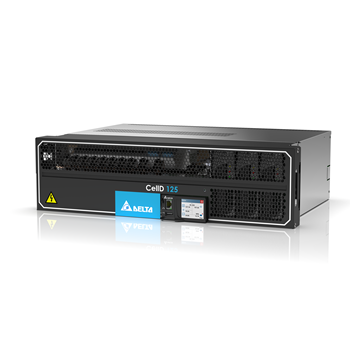

CellD 125E

CellD 125E

CellD systems are small, just like cells. They can be embedded in the telecom infrastructure and are often used in OutD outdoor solutions. The products in this series are light and designed especially for installations with limited space offering high density of the installed power.

The system includes high efficiency rectifiers, AC and DC connections, battery connection and Delta ORION Touch controller. In addition to advanced supervision, short depth and easy installation are the success factors of the system.

Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership

Product Introduction

Features & Benefits
  • 19in rack mounted system up to 9 kW
  • Integrated 19IN 3U power system
  • High efficiency rectifiers up to 98%
  • Front access for battery and load connections, cabling to left side
  • Option for enhanced monitoring and controlling



Applications
  • Wireless applications
  • Network base stations
  • LTE Fixed line applications
  • Broadband services
  • Transmission

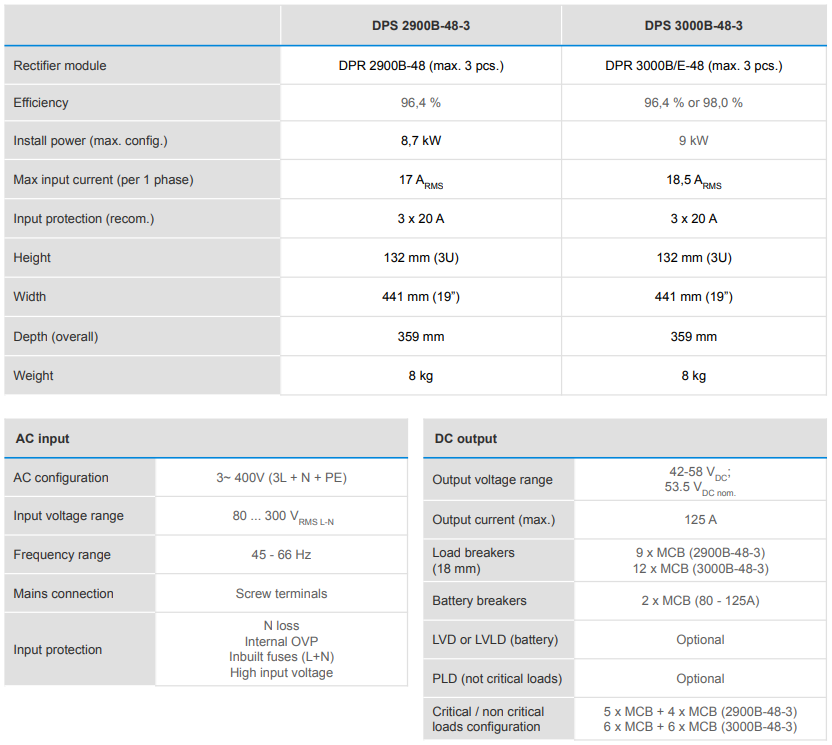

Specifications






Max. install power 8.7 kW




19IN-3U rack mounted system Max. output current 125 A
Max. install power 8.7 kW Load breakers 9 x MCB (6 - 63 A)
Max. 3 x Rectifier 2900W Battery breakers 2 x MCB (80-125A)
Efficiency 96.4 % Controller ORION Touch
Input voltage 80 VRMS to 300 VRMS EN 62368-1 / EN 300 386
AC configuration 3L + N + PE Weight 8.6 kg
