CellD 300

CellD 300

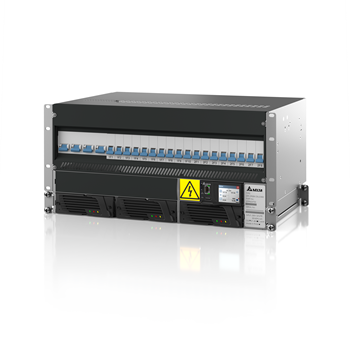

CellD systems are small, just like cells. They can be embedded in the telecom infrastructure and are often used in OutD outdoor solutions. The products in this series are light and designed especially for installations with limited space offering high density of the installed power.

The system includes high efficiency rectifiers, AC and DC connections, battery connection and ORION controller. In addition to advanced supervision, short depth and easy installation are the success factors of the system.

Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.

Product Introduction

Main Features
  • 19” rack mounted system up to 250 A loads
  • Integrated distribution unit and rectifiers shelf with combinations from 5U to 6U
  • High efficiency rectifiers up to 96.4 %
  • All connections easily accessible from the top
  • All battery and load breakers accessible at the front
  • Option for enhanced monitoring and controlling




Applications
  • Wireless applications, network base stations, LTE
  • Fixed line applications, broadband services
  • Transmission

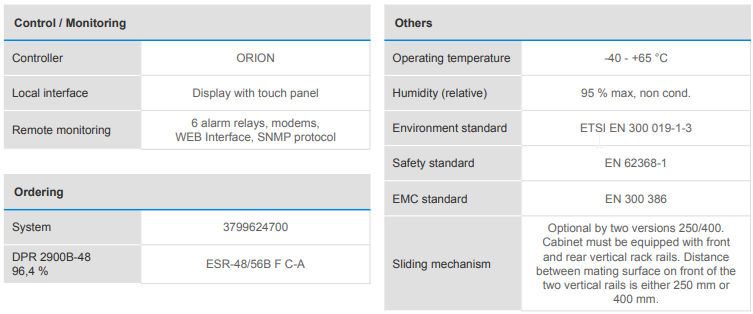

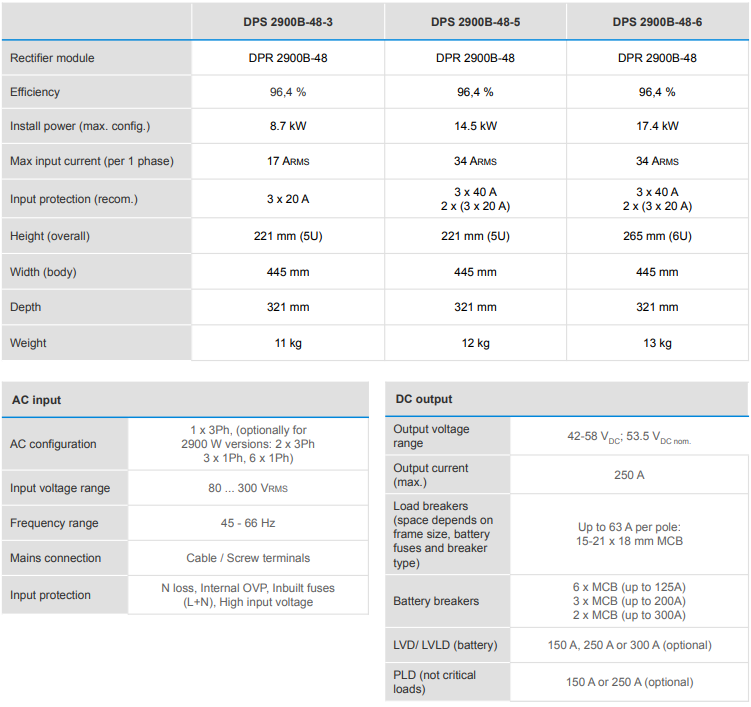

Specifications


Max. install power 8.7 kW




19IN-5U rack mounted system Max. output current 250 A
Max. install power 8.7 kW Load breakers 15-21 x MCB (2 - 63 A)
Max. 3 x Rectifier 2900W Battery breakers:
2-6 x MCB (up to 125A)
1-3 x MCB (up to 200 A)
0-2 x MCB (up to 300 A)
Efficiency 96.4 % Controller ORION Touch
Input voltage 80 VRMS to 300 VRMS EN 62368-1 / EN 300 386
AC configuration 3L + N + PE Weight 11.0 kg
