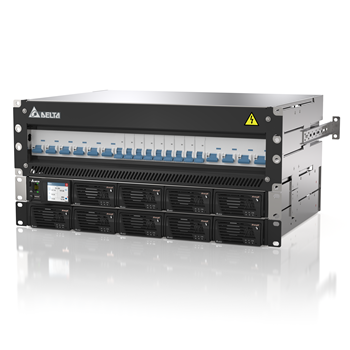

CellD 500 DPS 3000B-48-9

CellD systems are small, just like cells. They can be embedded in the telecom infrastructure and are often used in OutD outdoor solutions. The products in this series are light and designed especially for installations with limited space offering high density of the installed power. The system includes high efficiency rectifiers, AC and DC connections, battery connection and ORION controller. In addition to advanced supervision, short depth and easy installation are the success factors of the system. Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.

Product Introduction

Main Features
• Configurable rectifier system
for either 200 or 500 A load
• Mechanical interface 19IN rack
mounting
• Compact size – 4U or 5U high
• High efficiency rectifiers up to
98%
• Battery and load breakers
accessible at the front
• Enhanced monitoring and
controlling
Applications
• Wireless
• Network base stations
• Fixed line
• Broadband services
• Transmission
Specifications





19IN-5U rack mounted system Max. output current 500 A
Max. install power 27 kW Load breakers 15 x MCB (6 - 63 A)
Max. 9 x rectifiers 3000 W Battery breakers 6 x MCB (80-125A)
Efficiency 98 % Controller ORION Touch
Input voltage 80 VRMS to 300 VRMS EN 300 386, EN 61000-6-1, -2, -3 and -4
AC configuration 3L + N + PE Weight 17,5 kg
