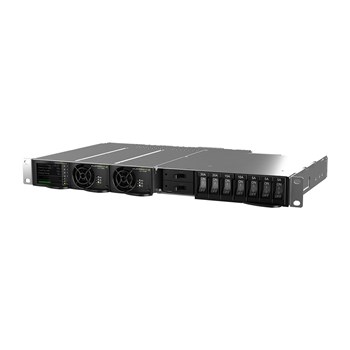

Flatpack S 48V 1U

Flatpack S 48V 1U

Compact HE 1U power systems


Increasing network speed demands flexible and expandable DC power solutions. Due to its small size, high efficiency, reliability and wide range of communication, the Flatpack S System is the key for future needs. The shallow depth makes the system suitable for most cabinets and thereby excellent as a replacement unit.

Product Introduction

Key features
  • Complete system
  • SmartpackS controller
  • Rectifiers
  • Battery distribution
  • Load distribution
  • 262 mm system depth
  • 1U height
  • Hot pluggable rectifiers
  • Hot pluggable controller
  • Advanced control and monitoring through ethernet port
  • 2R (40A)
  • Load options
  • 7 x 30AMCB drawer (optional LVLD)
  • 4 x 30A MCB front
  • 7 x 15A fuse front
  • 3R (100A)
  • Load options
  • 2 x 80A



Specifications
Input
  • Max input AC Voltage: 300 VAC
  • Mains configuration: 230VAC Single phase


DC Output
  • Current (maximum): 100 ADC
  • Max voltage: 60 VDC
  • Max power: 5,4 kW


Battery Distribution
  • Breaker positions up to: 2
  • Breaker rating up to: 80 A
  • LVBD: Yes


DC Load Distribution
  • Breaker positions up to: 7
  • Breaker rating up to: 30 A
  • LVLD: Yes


Other
  • Operating temperature: -40 - 65 °C
  • Storing temperature: -40 - 85 °C


Dimensions
  • Dimensions WxHxD (mm): 482.5 x 44,1 x 250 mm
  • Dimensions WxHxD (inch): 19 x 1,74 x 9,84 "
  • Weight: 4,5 kg


Design Standards
  • Ingress Protection (IP): 20
