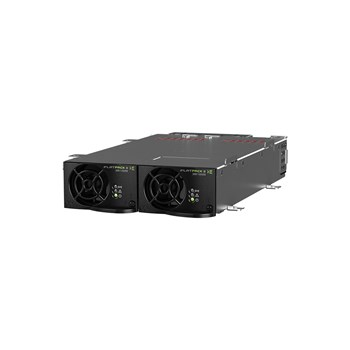

Flatpack S stand alone power rack 48 Vdc

Flatpack S stand alone power rack 48 Vdc

The Flatpack S Stand-alone Power Rack is designed to be an easy to place, highly efficient DC power solution. It can house 2 Flatpack S rectifiers, and up to 3 units can easily be stacked together. Due to its small size, flexible mounting options and reliability, this unit is a key for future needs.

Product Introduction

Key Features
  • Compact power rack
  • Hot pluggable rectifiers
    • FPS 24/1000 HE SIL3 OVP
    • FPS 24/1000 HE
    • FPS 24/1800 HE
    • FPS 36/1000 HE UI
    • FPS 48/1000 HE
    • FPS 48/1000 SHE
    • FPS 48/1800 HE
  • Easy to place
  • Easy to expand
    • Up to 3 units can be stacked
  • Easy to connect
    • Flying leads on input
  • 274 mm depth
  • Optional controller (EXT)
    • Compack
    • Smartpack
  • Floating output
    • 48 V up to 10,2 kW
    • 36 V up to 6 KW
    • 24 V up to 6 kW



Applications
  • Offshore and process industry
    • Safety and automation systems (SAS)
  • Railway infrastructure
    • Control and protection
    • Signalling
  • Telecom – fixed
    • Fiber optics / FTTX
    • Microwave
    • Cable
    • Broadband
  • Telecom – mobile / wireless
    • Broadband

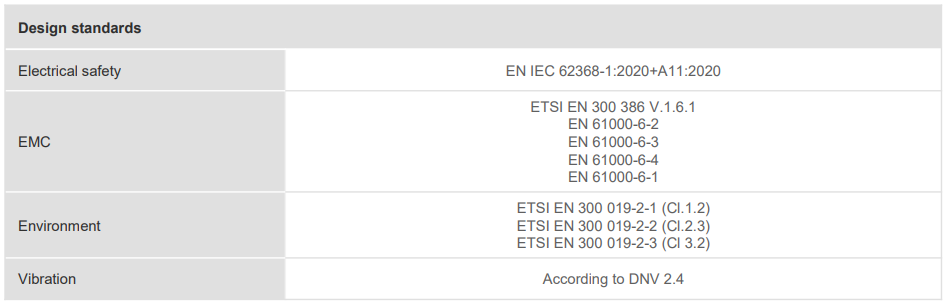

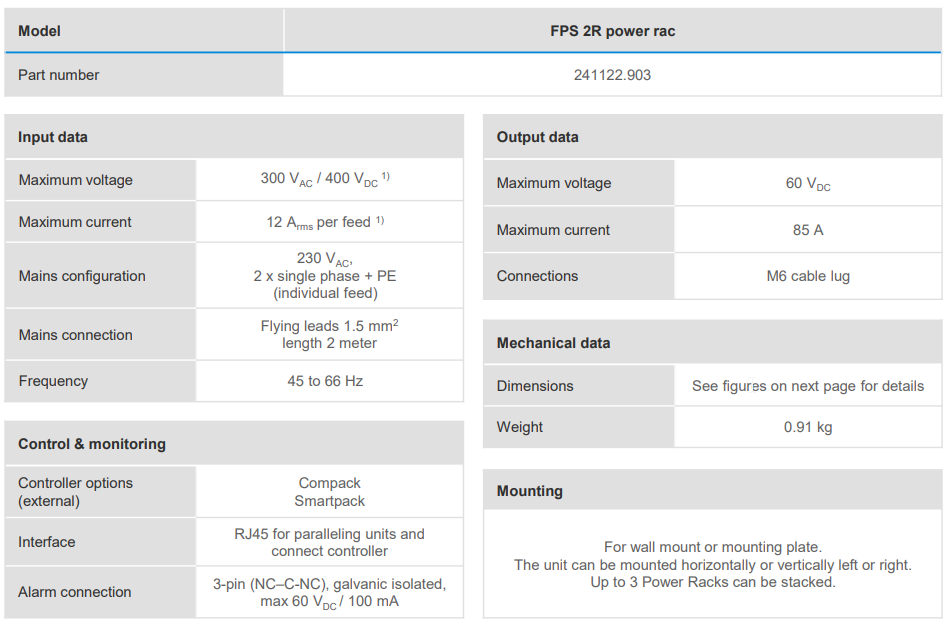

Specifications
