Power supply system, battery charger or DC/DC converter

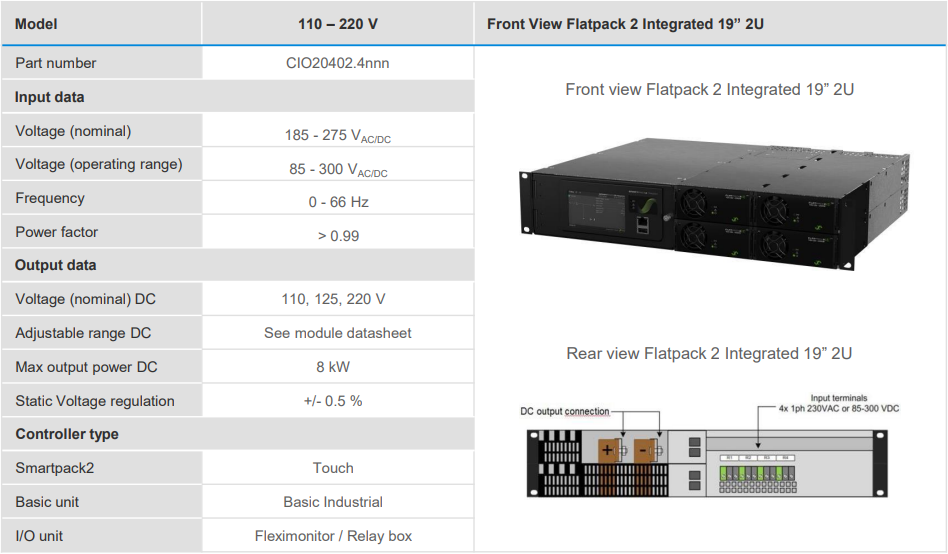

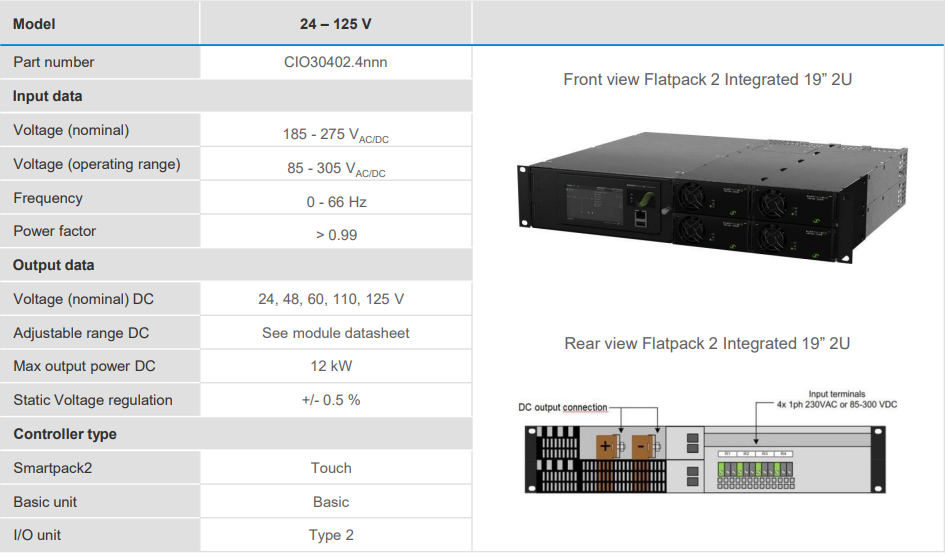

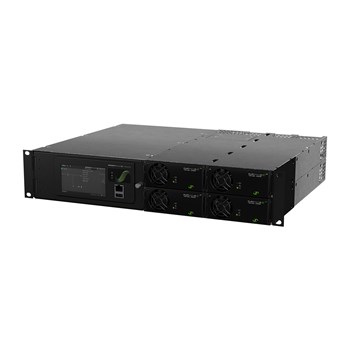

Flatpack2 Integrated 19” 2U 24V, 48V, 60V, 110V, 125V & 220V The Integrated 19” 2U power supply is built around the Flatpack2 rectifier and designed for applications such as switchgear, telecom, emergency lighting and alarm systems.
The rectifier’s wide DC output range makes it suitable for parallel operation with all types of stationary batteries, including lead acid, lithium or nickel cadmium types.
As additional options the measuring and signalling can be widely extended by incorporating the Eltek Fleximonitor and Relay Board.
