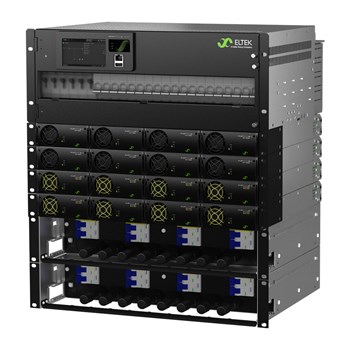

Eltek's Hybrid power core is based on the Flatpack2 product family, fully integrated into complete and flexible solutions with one single Smartpack2 controller monitoring all energy sources, flow and storage.

The Hybrid power core has integrated battery distribution, DC load distribution, rectifiers and solar chargers with PV connection panel. The power core is flexible and can easily be upgraded to meet changing demands.

A typical hybrid site is powered from PV panels in addition to Gen-set and/or mains connection.


Product Introduction

Key features
Complete system
Smartpack2 Touch controller
Advanced control and monitoring through ethernet port
SHE FP2 Rectifiers
HE FP2 Solar with MPPT
Max PV capacity 24kW
PV connection panel with DC SPD (option)
Hot pluggable modules
19” / 4U Distribution chassis
Up to 8x Battery breaker positions
LVBD
Up to 18x Load breakers positions
LVLD1
LVLD2 (optional)
Global approvals
Applications
Telecom – Mobile / Wireless
- Radio Base stations / Cell Sites
- LTE / 4G / WiMAX
- Distributed Antenna Systems
- Microwave
- Broadband



Telecom – Fixed
- Telephony servers / switches
- Fiber Optics / FTTx
- Microwave
- Cable
- Broadband

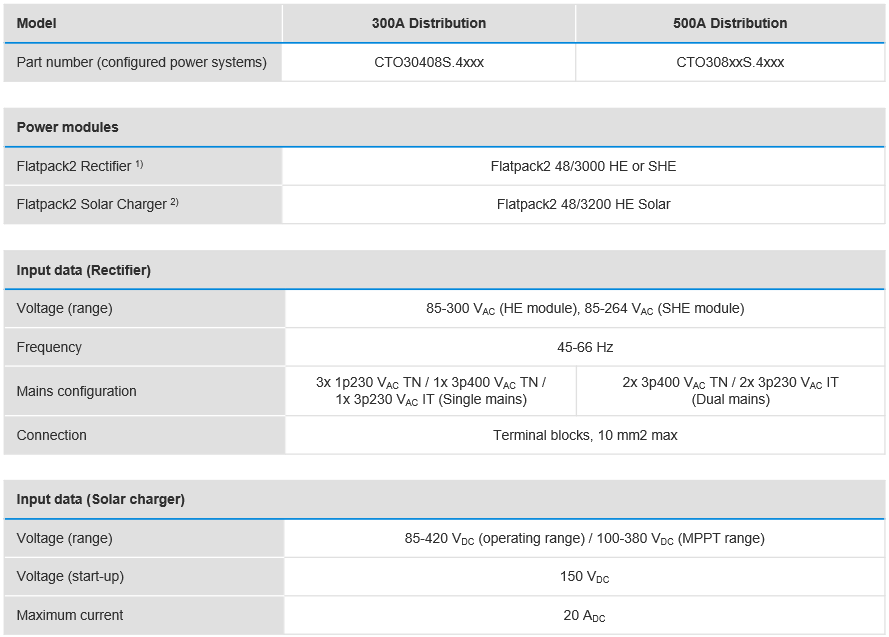

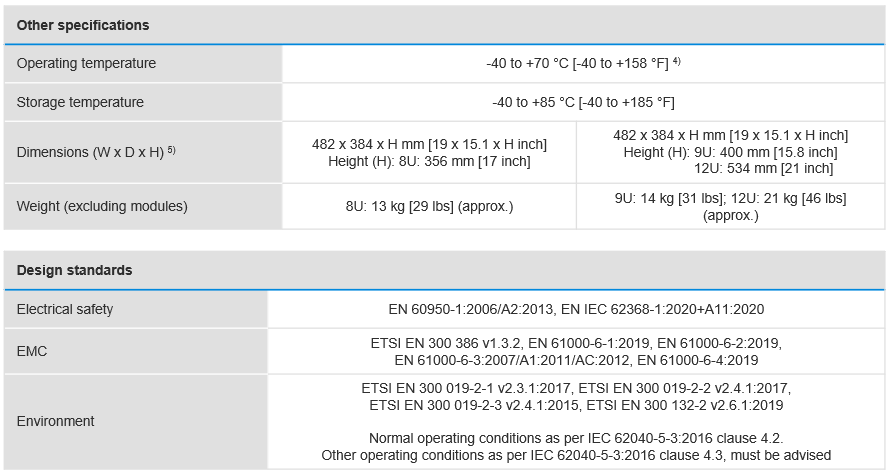

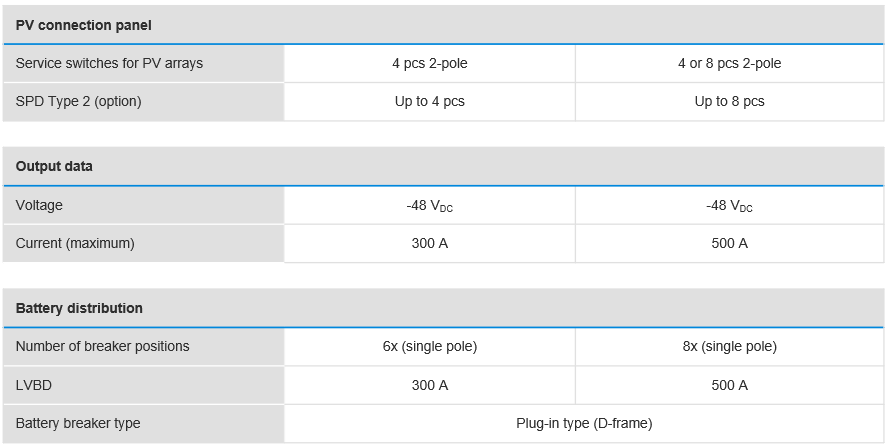

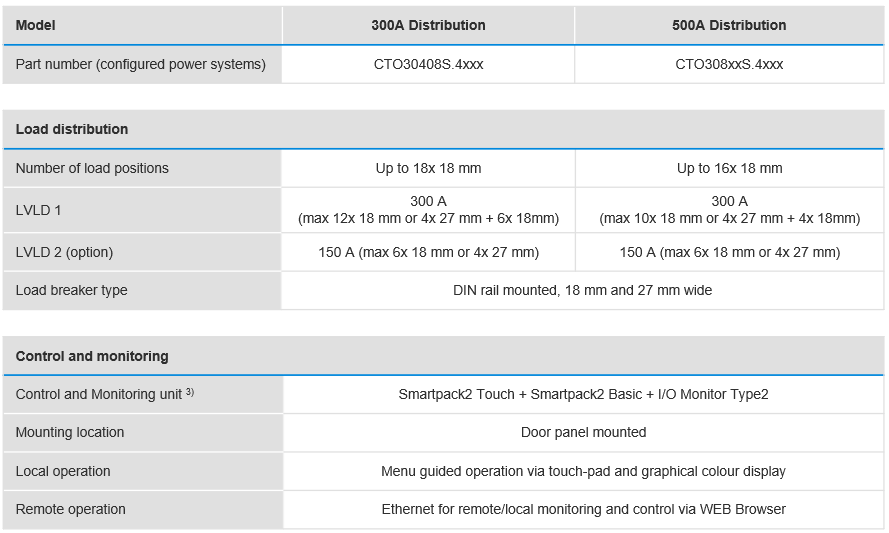

Specifications
