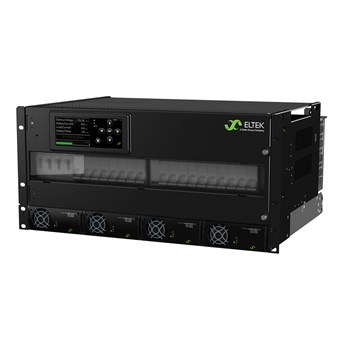

Rectiverter Power Core 6kVA 1ph

Rectiverter Power Core 6kVA 1ph

Rectiverter Power Core 6kVA 1ph


The Rectiverter building block combines both AC and DC feed into one common unit, simultaneously providing AC backup power for 230or 115 Vac loads,48 Vdc power for DC loads and battery charging.

Product Introduction

The total output power for both AC and DC output is limited to max 8 kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 6kVA and for DC load to max 4,8kW.




Key features
  • 230 or 115 Vac input/output
  • Single phase input/output
  • 48 Vdc input/output
  • 8kW total AC + DC output
  • Max 6kVA AC output
  • Max 4,8kW DC output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • -48 Vdc distribution option
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller
  • Smartpack S controller




Specifications
Input
  • Current (maximum): 128 ADC
  • Max input AC Voltage: 275 VAC
  • Max input DC Voltage: 58 VDC
  • Mains configuration: 230VAC Single phase


AC Output
  • Max Output AC Voltage: 240 VAC
  • Max power (kVA/kW): 6 / 4,8


DC Output
  • Max Power: 4800 W
  • Voltage (adjustable range): 43 - 58 VDC
  • Current (maximum): 100 ADC
  • Max voltage: 58 VDC
  • Max power: 4,8 kW


Battery Distribution
  • Breaker positions up to: 2
  • Breaker rating up to: 250 A
  • LVBD: Yes


DC Load Distribution
  • Breaker positions up to: 14
  • Breaker rating up to: 63 A
  • LVLD: Yes


AC Load Distribution
  • Number of breakers: 10
  • Breaker rating, up to: 10 A


Other
  • Operating temperature: -40 - 55 °C


Dimensions
  • Dimensions WxHxD (mm): 482 x 222 x 432 mm
  • Dimensions WxHxD (inch): 18,98 x 8,74 x 17,01 "
  • Mounting dimensions: 19" / 5U / 432 Width (Inch) / Height (U) / Depth (mm)
  • Weight: 16 kg


Design Standards
  • Ingress Protection (IP): 20
