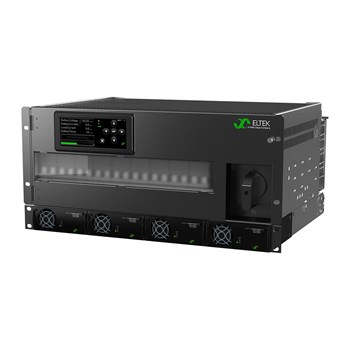

Rectiverter Power Core 6kVA 1ph MB

Rectiverter Power Core 6kVA 1ph MB

Rectiverter Power Core 6kVA 1ph MB


The Rectiverter power core combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 Vac or 115 Vac loads, and 48 Vdc power for DC loads and battery charging.

Product Introduction

The total output power for both AC and DC output is limited to max 8kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 6kVA and for DC load to max 4,8kW



Key features
  • 230 or 115 Vac input/output
  • Single phase input/output
  • 48 Vdc input/output
  • 8kW total AC + DC output
  • Max 6kVA AC output
  • Max 4,8kW DC output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • Built in manual bypass switch
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller



Specifications
Input
  • Current (maximum): 128 ADC
  • Max input AC Voltage: 275 VAC
  • Max input DC Voltage: 58 VDC
  • Mains configuration: 230VAC Single phase


AC Output
  • Max Output AC Voltage: 240 VAC
  • Max power (kVA/kW): 6 / 4,8


DC Output
  • Max Power: 4800 W
  • Voltage (adjustable range): 43 - 58 VDC
  • Current (maximum): 100 ADC
  • Max voltage: 58 VDC
  • Max power: 4,8 kW


AC Load Distribution
  • Number of breakers: 18
  • Breaker rating, up to: 10 A


Other
  • Operating temperature: -40 - 55 °C


Dimensions
  • Dimensions WxHxD (mm): 482 x 222 x 432 mm
  • Dimensions WxHxD (inch): 18,98 x 8,74 x 17,01 "
  • Mounting dimensions: 19" / 5U / 432 Width (Inch) / Height (U) / Depth (mm)
  • Weight: 16 kg


Design Standards
  • Ingress Protection (IP): 20
