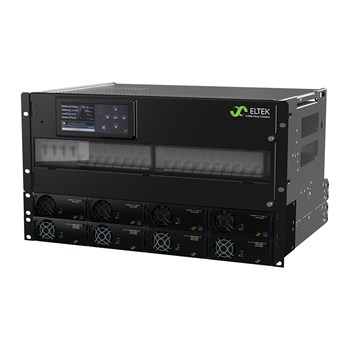

The Rectiverter building block combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 Vac loads, and 48 Vdc power for DC loads and battery charging.

Product Introduction

The total DC output can be configured up to 16,8kW DC load where the limitation for AC load is set to max 6 kVA. The 3phase TN network input balance the load between DC output and 1phase AC output to reduce the input circuit breaker for the system.




Key features
  • 400 Vac three phase input
  • 48 Vdc input/output
  • Single phase output
  • Max 6kVA AC output
  • Max 16,8kW dc output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • -48 Vdc distribution option
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller
  • Smartpack S controller



Specifications
Input
  • Current (maximum): 128 ADC
  • Max input AC Voltage: 475 VAC
  • Max input DC Voltage: 58 VDC
  • Mains configuration: 230/400VAC 3 phase (Y)


AC output
  • Max Output AC Voltage: 240 VAC
  • Max power (kVA/kW): 6 / 4,8


DC Output
  • Max Power: 16800 W
  • Current (maximum): 350 ADC
  • Max voltage: 58 VDC
  • Max power: 16,8 kW


Battery Distribution
  • Breaker positions up to: 2
  • Breaker rating up to: 200 A
  • LVBD: Yes


DC Load Distribution
  • Breaker positions up to: 14
  • Breaker rating up to: 63 A
  • LVLD: Yes


AC Load Distribution
  • Number of breakers: 10
  • Breaker rating, up to: 10 A


Other
  • Operating temperature: -40 - 55 °C


Dimensions
  • Dimensions WxHxD (mm): 482 x 267 x 432 mm
  • Dimensions WxHxD (inch): 18,98 x 10,51 x 17,01 "
  • Mounting dimensions: 19" / 6U / 432 Width (Inch) / Height (U) / Depth (mm)


Design Standards
  • Ingress Protection (IP): 20
