Flatpack2 110-220 Vdc integrated 19 inch

Flatpack2 110-220 Vdc integrated 19 inch

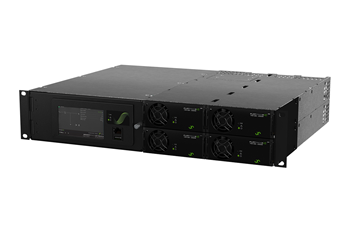

The Integrated 19” 2U power supply is built around the Flatpack2 rectifier and designed for applications such as switchgear, telecom, emergency lighting and alarm systems.

Product Introduction

The Integrated 19” 2U power supply is built around the Flatpack2 rectifier and designed for applications such as switchgear, telecom, emergency lighting and alarm systems.

Its compact design and simple installation make it a powerful 19” power supply package.

The rectifiers wide DC output range makes it suitable for parallel operation with all types of stationary batteries, including lead acid, or nickel cadmium types.
Key features
  • Compact design and simple installation
  • 85-300VAC or DC input
  • House up to 4 rectifier modules
  • 24-220 Vdc systems
  • Bulk feed output
  • Graphical 3.2” TFT high contrast, high resolution color display for easy navigation in user menu
  • Ethernet for remote or local monitoring and control via web browser
  • SNMP protocol with trap, set and get on ethernet.
  • Email of trap alarms
  • Digital programmable relay outputs
  • Programmable multipurpose inputs (“digital inputs” or analog signals)
