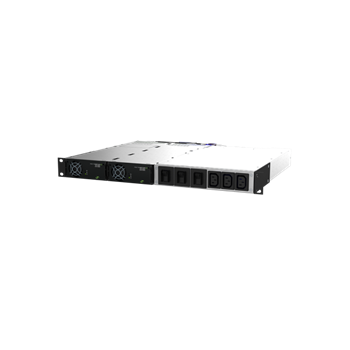

Rectiverter Integrated/Standalone 3kVA 1phase, 220 VDC

Rectiverter Integrated/Standalone 3kVA 1phase, 220 VDC

Rectiverter Integrated/Standalone 3kVA 1phase, 220 VDC


The Rectiverter integration/standalone system can be used in applications where a 230/115 Vac backup is needed in parallel with the220 Vdc backup.

Product Introduction

Rectiverter Integrated/Standalone 3kVA 1phase, 220 VDC


It can also be used as a standalone system connected to any available220 Vdc. The system can be integrated into an Eltek DC system and connected to the same controller as the220 Vdc system.

The total output power for both AC and DC output is limited to max 4kW AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 3kVA.
Key features
  • 230 Vac single phase input
  • 220 Vdc input/output
  • Single phase output
  • Max 3kVA AC output
  • Max 2,4kW DC output
  • 2 pole AC distribution
  • 3*IEC sockets on front
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Operates in parallell with Flatpack2


Specifications
Input
  • Current (maximum): 13,3 ADC
  • Max input AC Voltage: 240 VAC
  • Max input DC Voltage: 290 VDC
  • Mains configuration: 230VAC Single phase


AC Output
  • Max Output AC Voltage: 240 VAC
  • Max power (kVA/kW): 3 / 2,4


DC Output
  • Voltage (adjustable range): 194 - 290 VDC
  • Current (maximum): 11 ADC
  • Max voltage: 290 VDC
  • Max power: 2,4 kW


DC Load Distribution
  • LVLD: No


AC Load Distribution
  • Number of breakers: 3
  • Breaker rating, up to: 10 A


Other
  • Cooling: Single fan
  • Operating temperature: -40 - 55 °C


Dimensions
  • Dimensions WxHxD (mm): 483 x 44 x 395 mm
  • Dimensions WxHxD (inch): 19 x 1,73 x 15,55 "
  • Mounting dimensions: 19" / 1U / 395 Width (Inch) / Height (U) / Depth (mm)
  • Weight: 6 kg


Design Standards
  • Ingress Protection (IP): 20
