The Rectiverter building block combines both AC and DC feed into one common unit, simultaneously providingAC backup power for 230/115 Vac loads,110 Vdc power for DC loads and battery charging.

Product Introduction

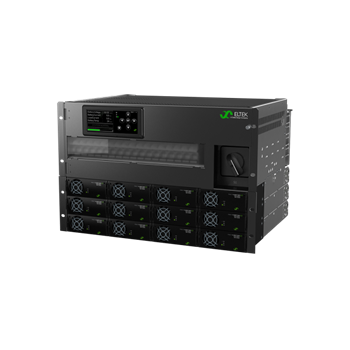

Rectiverter Powercore 110 Vdc 18kVA 3ph


The total output power for booth AC and DC output is limited to max 24kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 18kVA and for DC load to max 14,4kW
Features & Benefits
  • 230/400 Vac input/output
  • Three phase (y) input/output One phase input/output
  • 110 Vdc input/output
  • 24kW total AC + DC output
  • Max 18kVA AC output
  • Max 14,4kW DC output
  • 1phase AC distribution option
  • 3phase AC distribution option
  • Built in manual bypass switch
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller
Specifications
Input
  • Current (maximum): 150 ADC
  • Max input AC Voltage: 475 VAC
  • Max input DC Voltage: 145 VDC
  • Mains configuration: 230/400VAC 3 phase (Y); 230VAC Single phase


AC Output
  • Max Output AC Voltage: 415 VAC


DC Output
  • Max Power: 14400 W
  • Current (maximum): 150 ADC
  • Max voltage: 145 VDC
  • Max power: 14,4 kW


DC Load Distribution
  • LVLD: No


AC Load Distribution
  • Number of breakers: 18Breaker rating, up to: 20 A


Other
Operating temperature: -40 - 55 °C


Dimensions
  • Dimensions WxHxD (mm): 482 x 311 x 432 mm
  • Dimensions WxHxD (inch): 18,98 x 12,24 x 17,01 "
  • Mounting dimensions: 19" / 7U / 432 Width (Inch) / Height (U) / Depth (mm)
  • Weight: 27 kg


Design Standards
  • Ingress Protection (IP): 20
