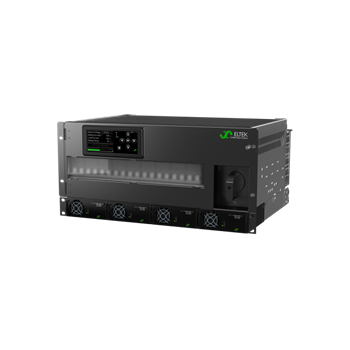

Rectiverter Power Core 220 Vdc 6kVA 1ph MB

The Rectiverter building block combines both AC and DC feed into one common unit, simultaneously providingAC backupfor 230 or 115 Vac loads,220 Vdc power for DC loads and battery charging.


The total output power for both AC and DC output is limited to max 8kW. AC and DC output limits can be set according to the attached load, where the limitation for AC load is set to max 6kVA and for DC load to max 4,8kW

Product Introduction

Key features
  • 230 or 115 Vac input/output
  • Single phase input/output
  • 220 Vdc input/output
  • 8kW total AC + DC output
  • Max 6kVA AC output
  • Max 4,8kW DC output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • Built in manual bypass switch
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller
Specifications
Input
  • Current (maximum)    27 ADC
  • Max input AC Voltage    275 VAC
  • Max input DC Voltage    290 VDC
  • Mains configuration    230VAC Single phase



AC Output
  • Max Output AC Voltage    240 VAC
  • Max power (kVA/kW)    6 / 4,8



DC Output
  • Current (maximum)    22 ADC
  • Max voltage    290 VDC
  • Max power    4,8 kW



DC Load Distribution
  • LVLD    No



AC Load Distribution
  • Number of breakers    18
  • Breaker rating, up to    10 A



Other
  • Cooling    Single fan
  • Operating temperature    -40 - 55 °C



Dimensions
  • Dimensions WxHxD (mm)    483 x 222 x 432 mm
  • Dimensions WxHxD (inch)    19 x 8,74 x 17,01 "
  • Mounting dimensions    19" / 5U / 432 Width (Inch) / Height (U) / Depth (mm)
  • Weight    16 kg



Design Standards
  • Ingress Protection (IP)    20
