24VDC Marine
Compact wall mounted power supply system

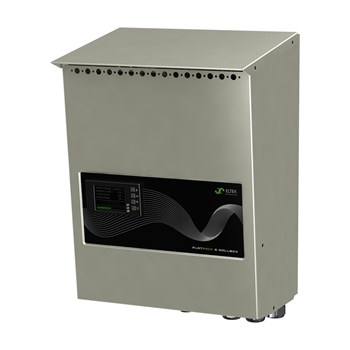

Flatpack S Wallbox 24VDC Marine The Flatpack S Wallbox is built around our Flatpack S rectifier and its compact and simple installation makes it a powerful wall-mounted DC power supply package. Its mechanical design and electrical connections are fully compatible with our previous SMPS 700 system, for retrofit of older systems. Comprehensive monitoring, LVBD, load and battery fuses are included as standard parts. AC input filters assures compliance with DnV standards for marine applications.
Modular architecture
The modular architecture, efficiency, compact design and comprehensive monitoring and control features provide significant benefits over the current industry standard. The Flatpack S rectifiers have intelligent self- protective features like reduced output power at high temperatures or low mains. The optional Flatpack S 24/1000 SIL3 OVP is targeted Safety and Automation Systems (SAS) where SIL rated overvoltage protection is required.
