The Large Power System proves that Flatpack2 and DPR 6000 is the ultimate building block in any telecom application. The combination of a flexible design, power density and reliability makes the Flatpack2 and DPR 6000 a product family that truly stands outs and provides unparalleled network availability.

The versatility of the Flatpack2 and DPR 6000 rectifier means that it can be used in a wide variety of DC applications across the globe.

Product Introduction

Large Power System 36 - 288kW

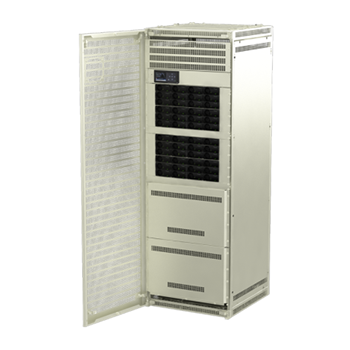

Eltek's Large Power System can be equipped with either Flatpack2 2kW, Flatpack2 3kW or DPR 6000 rectifiers. Basic configuration with Flatpack2 2kW rectifiers is with six power shelves with the possibility to expand up to 12 (in steps of three).

Basic configuration with Flatpack2 3kW rectifiers is with three power shelves with the possibility to expand up to 9 (in steps of three). Basic configuration with DPR 6000 rectifiers is with two power shelves with possibility to expand up to 4 (in steps of one).




Key features
  • System monitoring
  • Flatpack2 modules
  • DPR6000 modules
  • Full height lockable door
  • Dummy panels and unit doors
  • Configurable mains input
  • Surge protection device
  • LVBD (Low Voltage Battery Disconnection)
  • LVLD (Low Voltage Load Disconnection)
  • Cabinet paraleling for expanded power or additional distributions




Specifications
Input
  • Max input AC Voltage: 305 VAC
  • Mains configuration: 230VAC Single phase;230VAC 3 phase (Δ);230/400VAC 3 phase (Y)


DC Output
  • Current (maximum): 2250 ADC
  • Max voltage: 48 VDC
  • Max power: 108 kW


Battery Distribution
  • Breaker positions up to: 4
  • Breaker rating up to: 1600 A
  • LVBD: Yes


DC Load Contribution
  • Breaker positions up to: 8
  • Breaker rating up to: 600 A
  • LVLD: Yes


Other
  • Options: MCB distributions, Intern cabinet connection links, Low Voltage Battery disconnect, Low Voltage Load disconnect, Top or Bottom cable entry
  • Mounting Type: Floor


Dimensions
  • Dimensions WxHxD (mm): 600 x 600 x 2000 mm
  • Dimensions WxHxD (inch): 15,2 x 15,2 x 78,7 "
  • Weight: 180 kg


Design Standards
  • Ingress Protection (IP): 20
