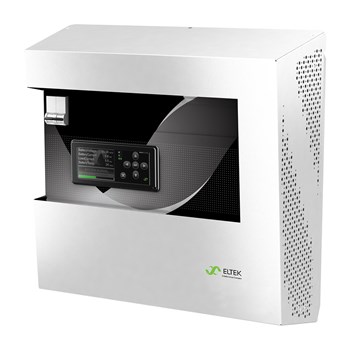

Compact wall mounted power supply system
The Micropack wallbox have been designed for industrial and telecom applications with power requirements in the range of 120- 1000W. With its compact design and simple installation and optional internal backup batteries, it makes it a really “micro” DC backup system

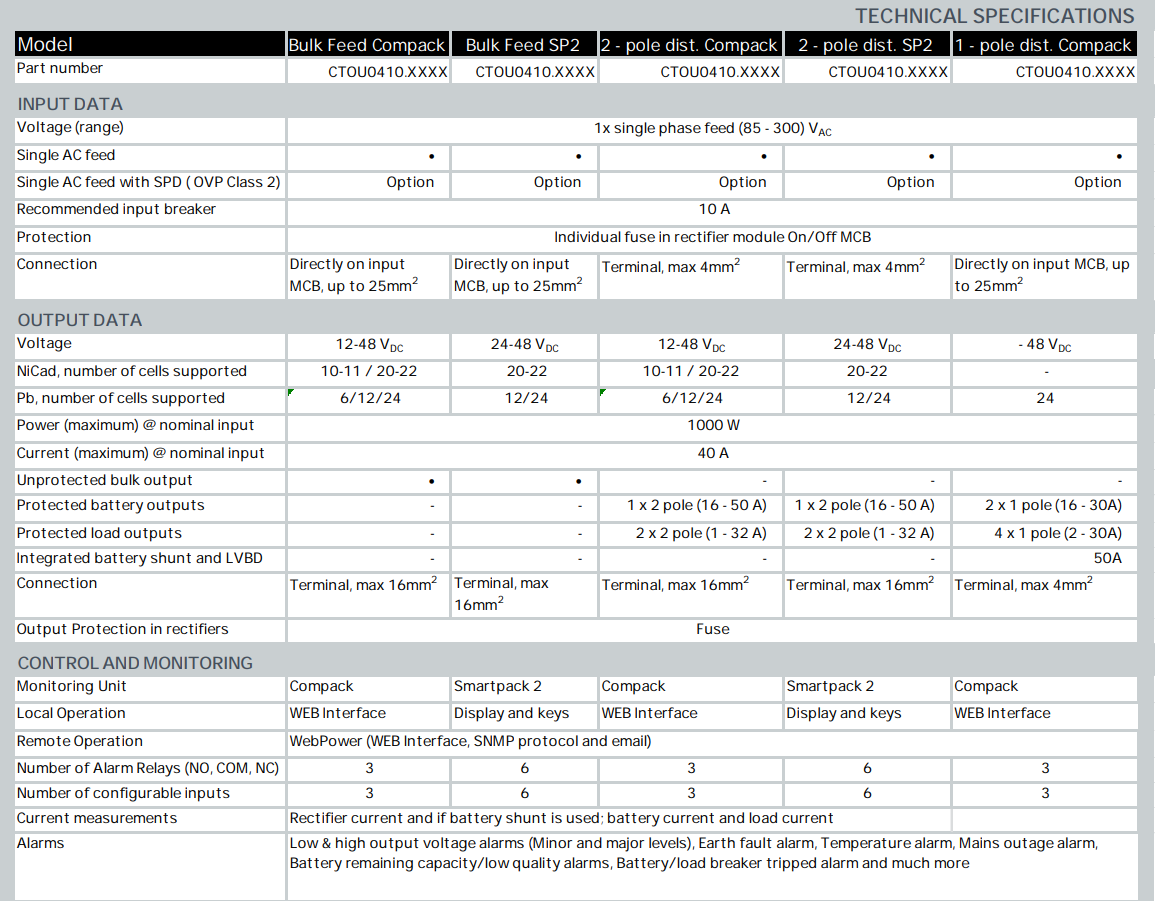

The basic power core has 4 rectifier positions, and can be configured as a bulk DC output feed, or integrated 1 or 2 pole distribution. The power core is prepared for any Micropack rectifier module and the system output can be either of the following: (based on module choice) · 12V/120 – 480W / 10 – 40A · 24V/240 – 960W / 10 – 40A · 48V/250 – 1000W / 5.2 – 21A The system have two options for monitoring and control, by the Compack controller, or if display or extended controller functionality is needed it can be configured with Smartpack2 controller In the lower left side of the box there is space for optional backup batteries (4x12V/7Ah, only with bulk DC output) Simple removable front cover gives good access for installation and connections
