MidD 250

MidD 250

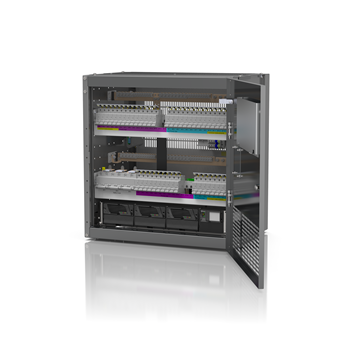

MidD is recognized as Delta power system integrated to a frameless sheet metal enclosure. The products in this series are cost optimized, light and simple to assemble. The system includes high efficiency rectifiers, AC and DC connections, optional battery connection and ORION controller. In addition to advanced supervision, flexible cabinet size and easy installation are the success factors of the system. Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.

Product Introduction

Main Features
  • Flexible indoor cabinet power system up to 250 A loads
  • High efficiency rectifiers up to 97 %
  • All battery and load breakers accessible at the front • Option for enhanced monitoring and controlling
Applications
  • Wireless applications, network base stations, LTE
  • Fixed line applications, broadband services
  • Transmission

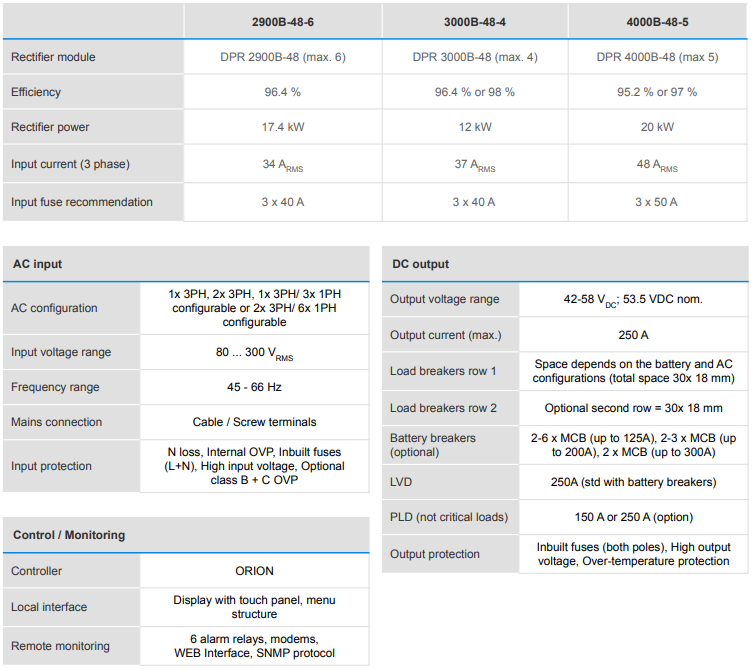

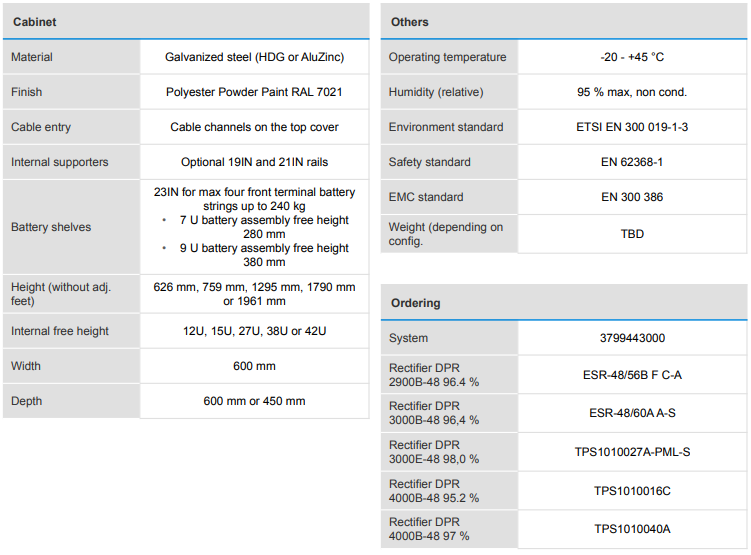

Specifications




DC Power System inbuilt in SC series cabinets





Power system integrated in support cabinet


Max. output current 250 A

Max. install power 17.4 kW


Load breakers 21-57 MCB (2 – 63 A)

Max. 6 x Rectifier 2900W


Battery breakers: 2-6 MCB (up to 125 A)


1-3 MCB (up to 200 A)

0-2 MCB (up to 300 A)


Efficiency 96.4 %


Controller ORION Touch

Input voltage 80 VRMS to 300 VRMS


EN 62368-1 / EN 300 386

AC configuration 3L + N + PE
