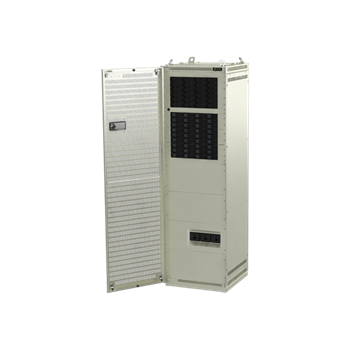

Rectiverter Scalable System 18-54 kVA

Rectiverter Scalable System 18-54 kVA

Rectiverter Scalable System 18-54 kVA


The scalable Rectiverter indoor system provides AC backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 48 VDC power for battery charging and optional DC loads

Product Introduction

Rectiverter Scalable System 18-54 kVA


In combination with the optional B-input (dual AC input) eliminates the need for a traditional ATS (Automatic Transfer Switch).Where the switch from A to B input, is a seamless operation with no interruption on the AC load.

When configured with dual AC input for use as an AC UPS, it classifies as - VFI SS 111 according to EN 62040-3



Key features
  • 400 VAC 3 phase (Y) input
  • 400 VAC 3 phase (Y) output
  • 48 VDC input/output
  • Max 54 kVA / 43,2 kW AC output
  • Max 43,2 kW DC output
  • Protected bulk AC output
  • A+B option (dual AC input)
  • Manual bypass option
  • Up to 4 battery strings
  • Built in transfer technology
  • 150% overload capability, 15S
  • 600% quick trip current 20 ms
  • Hot pluggable
  • Smartpack2 controller
  • Operates in paralell with Flatpack2 rectifiers
  • Global compliance
  • Patented HE technology



Specifications
Input
  • Current (maximum): 1152 ADC
  • Voltage AC (operating range): 320 - 475 VAC
  • Voltage DC (operating range): 40 - 58 VDC
  • Max input AC Voltage: 475 VAC
  • Max input DC Voltage: 58 VDC
  • Mains configuration: 230/400VAC 3 phase (Y)



AC Output
  • Max Output AC Voltage: 415 VAC
  • Max power (kVA/kW): 54 / 43,2

DC Output
  • Voltage (adjustable range): 43 - 58 VDC
  • Current (maximum): 900 ADC
  • Max voltage: 58 VDC
  • Max power: 43,2 kW





Battery Distribution
  • Breaker positions up to: 4
  • Breaker rating up to: 1600 A
  • LVBD: Yes



DC Load Distribution
  • Breaker positions up to: 2
  • Breaker rating up to: 600 A
  • LVLD: No



AC Load Distribution
  • Number of breakers: 1
  • Breaker rating, up to: 100 A



Other
  • Cooling: Single fan
  • Operating temperature: -40 - 55 °C
  • Storing temperature: -40 - 85 °C



Dimensions
  • Dimensions WxHxD (mm): 600 x 2000 x 600 mm
  • Dimensions WxHxD (inch): 23,7 x 78,8 x 23,7 "
  • Mounting dimensions: 19" / 44U / 600 Width (Inch) / Height (U) / Depth (mm)
  • Weight: 300 kg




Design Standards
  • Ingress Protection (IP): 20
