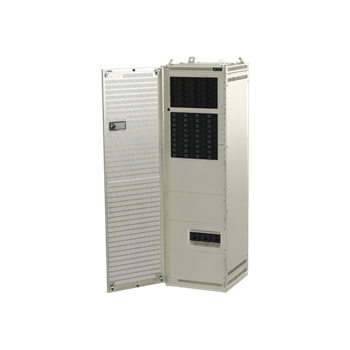

Rectiverter Scalable System 18-54 kVA, 220 VDC

The scalable Rectiverter indoor system provides AC backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and220 VDC power for battery charging and optional DC loads

Product Introduction

In combination with the optional B-input (dual AC input) eliminates the need for a traditional ATS (Automatic Transfer Switch).Where the switch from A to B input, is a seamless operation with no interruption on the AC load.

When configured with dual AC input for use as an AC UPS, it classifies as - VFI SS 111 according to EN 62040-3
Key features
  • 400 VAC 3 phase (Y) input
  • 400 VAC 3 phase (Y) output
  • 220VDC input/output
  • Max 54 kVA / 43,2 kW AC output
  • Max 43,2 kW DC output
  • Protected bulk AC output
  • A+B option (dual AC input)
  • Manual bypass option
  • Up to 4 battery strings
  • Built in transfer technology
  • 150% overload capability, 15S
  • 600% quick trip current 20 ms
  • Hot pluggable
  • Smartpack2 controller
  • Operates in paralell with Flatpack2 rectifiers
  • Global compliance
  • Patented HE technology

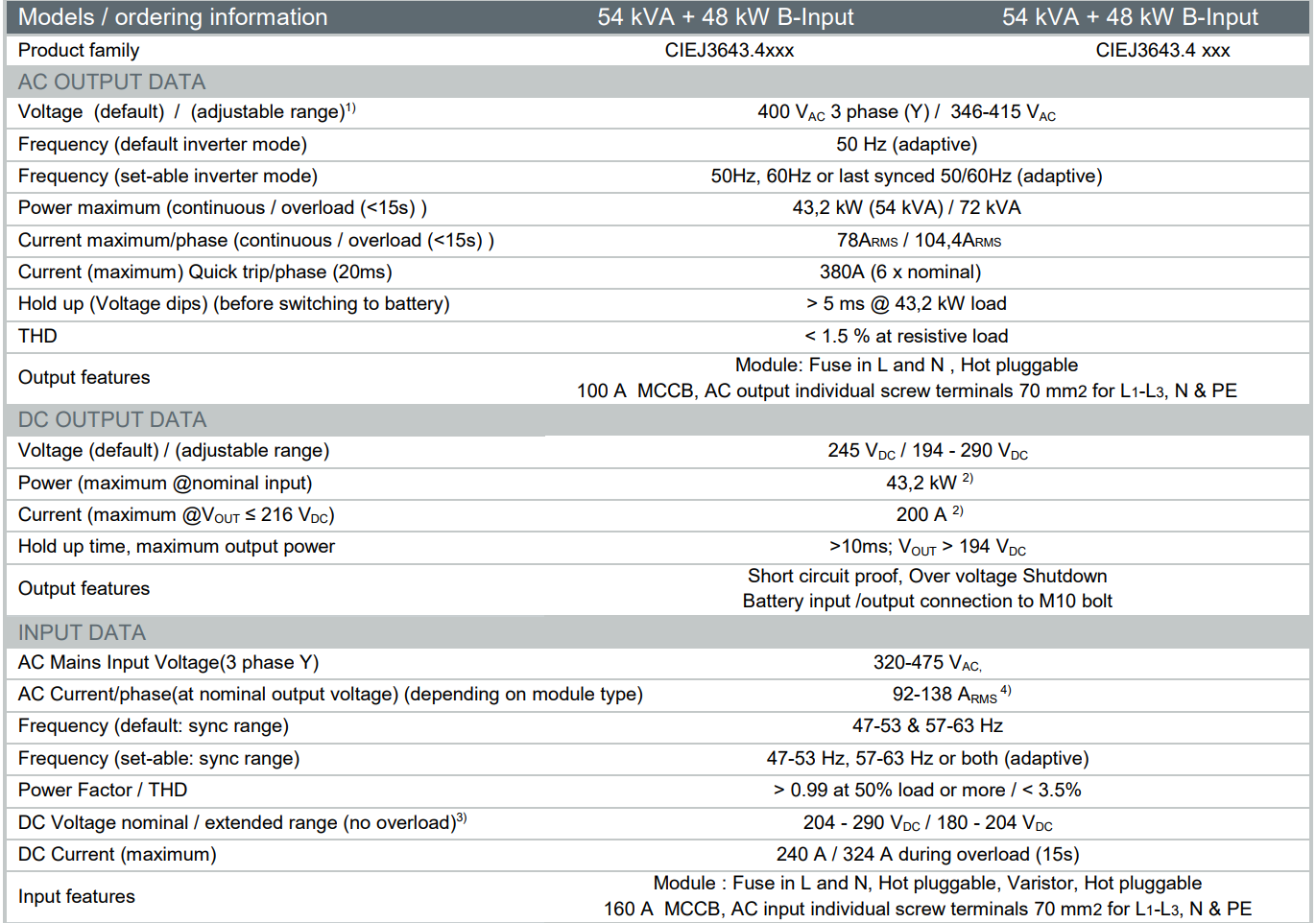

Specifications
Input
  • Current (maximum)    240 ADC
  • Max input AC Voltage    475 VAC
  • Max input DC Voltage    290 VDC
  • Mains configuration    230/400VAC 3 phase (Y)



AC Output
  • Max Output AC Voltage 415 VAC
  • Max power (kVA/kW) 54 / 43,2




DC Output
  • Current (maximum) 200 ADC
  • Max voltage 290 VDC
  • Max power 43,2 kW

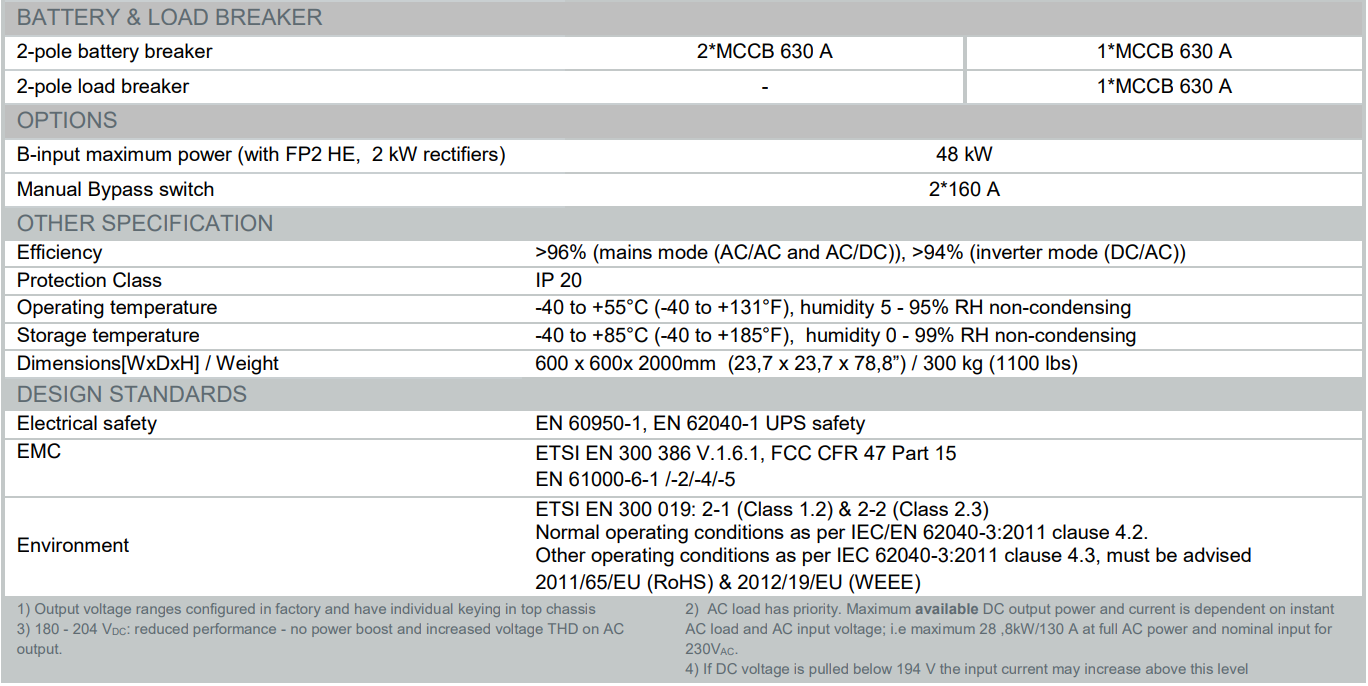

Battery Distribution
  • Breaker positions up to 2
  • Breaker rating up to 630 A



DC Load Distribution
  • Breaker positions up to 1
  • Breaker rating up to 630 A
  • LVLD:  No



AC Load Distribution
  • Number of breakers: 1
  • Breaker rating, up to 100 A




Other
  • Cooling
    • Single fan
  • Operating temperature
    • -40 - 55 °C



Dimensions
  • Dimensions WxHxD (mm)
    • 600 x 2000 x 600 mm
  • Dimensions WxHxD (inch)
    • 23,7 x 78,8 x 23,7 "
  • Mounting dimensions
    • 19" / 44U / 600 Width (Inch) / Height (U) / Depth (mm)
  • Weight
    • 300 kg




Design Standards
  • Ingress Protection (IP)    20
