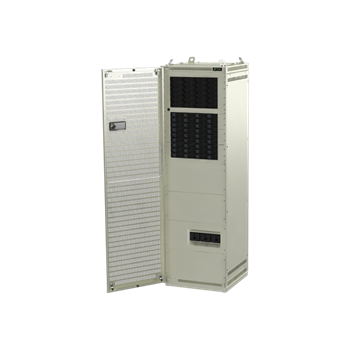

The scalable Rectiverter indoor system provides AC backup power for 400 VAC 3-phase or 230 VAC 1-phase loads, and 48 VDC power for battery charging and optional DC loads

Product Introduction

Rectiverter Scalable System 18-72 kVA


The systems are available in three configurations with maximum AC output power up to 36, 54 or 72 kVA. AC distributions are integrated in the cabinet with possible 3 phase or 1 phase load breakers.

In combination with AC output the system can also feed DC loads up to 57,6 kW with built in DC distribution for -48 VDC loads.



Key features
  • 400 VAC 3 phase (Y) input
  • 400 VAC 3 phase (Y) output
  • 48 VDC input/output
  • Max 72 kVA / 57,6 kW AC output
  • Max 57,6 kW DC output
  • AC distribution
  • DC distribution option
  • Manual bypass option
  • Up to 4 battery strings
  • Built in transfer technology
  • 150% overload capability, 15S
  • 600% quick trip current 20 ms
  • Hot pluggable
  • Smartpack2 controller
  • Operates in paralell with Flatpack2 rectifiers
  • Global compliance
  • Patented HE technology



Specifications
Input
  • Current (maximum): 1536 ADC
  • Voltage AC (operating range): 320 - 475 VAC
  • Voltage DC (operating range): 40 - 58 VDC
  • Max input AC Voltage: 475 VAC
  • Max input DC Voltage: 58 VDC
  • Mains configuration: 230/400VAC 3 phase (Y)


AC Output
  • Max Output AC Voltage: 415 VAC
  • Max power (kVA/kW): 72 / 57,6


DC Output
  • Voltage (adjustable range): 43 - 58 VDC
  • Current (maximum): 1200 ADC
  • Max voltage: 58 VDC
  • Max power: 57,6 kW


Battery Distribution
  • Breaker positions up to: 4
  • Breaker rating up to: 1600 A
  • LVBD: Yes


DC Load Distribution
  • Breaker positions up to: 30
  • Breaker rating up to: 120 A
  • LVLD: No


AC Load Distribution
  • Number of breakers: 30
  • Breaker rating, up to: 63 A



Other
  • Cooling: Single fan



Dimensions
  • Dimensions WxHxD (mm): 600 x 2000 x 600 mm
  • Dimensions WxHxD (inch): 23,7 x 78,8 x 23,7 "
  • Mounting dimensions: 19" / 44U / 600 Width (Inch) / Height (U) / Depth (mm)
  • Weight: 300 kg



Design Standards
  • Ingress Protection (IP): 20
