Key features

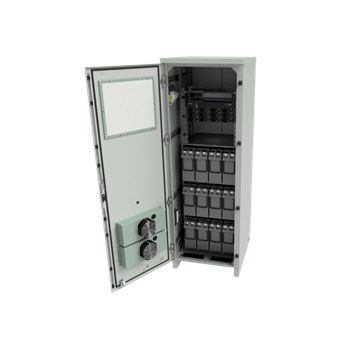

• Complete outdoor system
• Smartpack R controller
• Advanced control and monitoring through ethernet port
• Super High Efficiency rectifiers
• Hot pluggable modules
• 8x battery breaker positions
• LVBD
• 16x load MCB positions
• LVLD (optional)
• IP55

Specifications

• Current (maximum): 700 ADC
• Max input AC Voltage: 264 VAC
• Max input DC Voltage: 57,6 VDC
• Mains configuration: 230/400VAC 3 phase (Y)

• Current (maximum): 700 ADC
• Max voltage: 57,6 VDC
• Max power: 36 kW

• Breaker positions up to: 8
• Breaker rating up to: 250 A
• LVBD: Yes

• Cooling: Double fan
• Operating temperature: -40 - 45 °C
• Storing temperature: -40 - 85 °C
• Coating: RAL 7035
• Insulation: Yes
• Options: Heaters, Clogged filter detection, Filter presence detection, Smoke detector, Humidity detection, Service light, Various cable glands, Various locking cylinders, Battery shelves, Document holder, PC shelf
• Mounting Type: Floor

• Dimensions WxHxD (mm): 705 x 2068 x 831 mm
• Dimensions WxHxD (inch): 27,8 x 81,4 x 32,7 "
• Height (Rack space): 2.0 (39U) m
• Mounting dimensions: 19" / 1U / 831 Width (Inch) / Height (U) / Depth (mm)
• Depth: 0.77 m (Not including cooling/door option - see datasheet for details)
• Width: 0.7 m
• Weight: 168 kg
