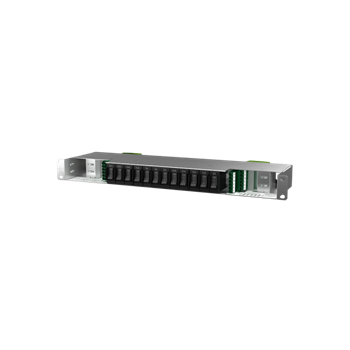

1U 19” MCB Distributions

1U 19” MCB Distributions

The 1U distribution panel is a standalone unit designed to be used in all applications requiring negative distribution.

The compact size and easy connectivity makes these units perfect for applications with limited space or where additional distribution is required.

Pluggable breakers with ratings up to 30A ensure flexible, quick and easy output configuration.

Product Introduction

1U 19” MCB Distributions


The 1U distribution is designed to meet today's demands when it comes to state of the art, cost efficiency and flexibility in DC power systems.

Together with its compact size and reliability, this distribution is a key building block for future needs.
Key features
  • 1U high
  • 19” wide
  • 12/22 pluggable MCB positions
  • Load alarm
  • Easy accessed output connections
  • Single or dual input
  • Optional LVLD
  • Global approvals
Specifications
Input
  • Current (maximum): 200 ADC
  • Max input DC Voltage: 60 VDC


DC Load Distribution
  • Current (maximum): 200 ADC
  • Max input DC Voltage: 60 VDC


Other
  • Operating temperature: -10 - 50 °C


Dimensions
  • Dimensions WxHxD (mm): 482.5 x 44 x 160 mm
  • Dimensions WxHxD (inch): 19 x 1,73 x 6,3 "
  • Weight: 2,2 kg


Design Standards
  • Ingress Protection (IP): 20
