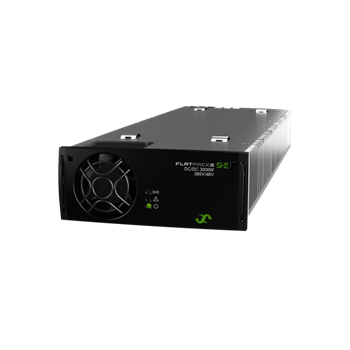

Flatpack2 DC/DC 380/48 3000 SHE

Flatpack2 DC/DC 380/48 3000 SHE

Flatpack2 DC/DC 380/48 3000 SHE


The Flatpack2 DC/DC 380/48 3000 SHE enables a high efficiency end to end DC power solution for data centers. It converts the 380 Vdc bus voltage down to 54 Vdc with an efficiency of 98.2%.

Product Introduction

Super high efficiency converter for data centers


With this Flatpack2 380V to 54V converter, central 380 Vdc-UPS becomes a competitive alternative for a wider range of data centers. The advantages of DC power systems as reliability, modularity, redundancy and high end to end efficiency, can be fully utilized to ensure optimal power availability.
Key features
  • High power density - 33 W/inch3
  • Super efficiency up to 98.2%
  • Modular – build as your load grows
  • Wide input range
  • OR-ing protection on output
Specifications
Input
  • Voltage DC (operating range): 260 - 400 VDC


Electrical
  • MTBF: 510000 h


DC Output
  • Max Power: 3000 W
  • Voltage (adjustable range): 50 - 55 VDC
  • Current (maximum): 60 ADC
  • Max voltage: 55 VDC


Other
  • Cooling: Single fan
  • Efficiency: 98,2 %
  • Operating temperature: -40 - 75 °C


Dimensions
  • Dimensions WxHxD (mm): 109 x 41,5 x 327 mm
  • Dimensions WxHxD (inch): 4,29 x 1,63 x 12,78 "
  • Weight: 1,95 kg


Design Standards
  • Ingress Protection (IP): 20
