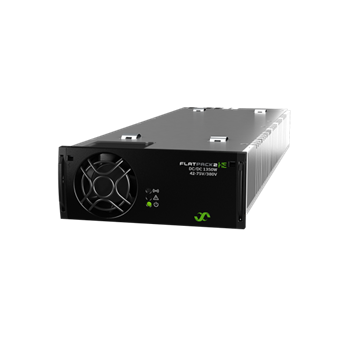

Flatpack2 DC/DC 42-75V 380/1350

This Flatpack2 DC/DC converter provides a secondary 310-400 Vdc output from a main 48V or 60V battery bank. This allows for high efficient transmission of battery backed up energy to small remote sites without grid.

Key features

Central Office DC/DC converter for 380 Vdc distribution systems

The galvanic isolated CAN bus can be connected to a supplying Eltek power system’s control system allowing monitor and control of the DC/DC converters without adding a separate controller.

Key features

Wide input range
OR-ing protection on outputBoost modeHigh EfficiencyVoltage keyingSeamlessly integrated in control system

Specifications

Input

Voltage DC (operating range): 42 - 75 VDC

DC Output

Max Power: 1350 W
Voltage (adjustable range): 310 - 400 VDC
Current (maximum): 4,5 ADC
Max voltage: 400 VDC

Other

Cooling: Single fan
Efficiency: 94,5 %
Operating temperature: -40 - 75 °C

Dimensions

Dimensions WxHxD (mm): 109 x 41,5 x 327 mm
Dimensions WxHxD (inch): 4,29 x 1,63 x 12,78 "
Weight: 1,95 kg

Design Standards

Ingress Protection (IP): 20
