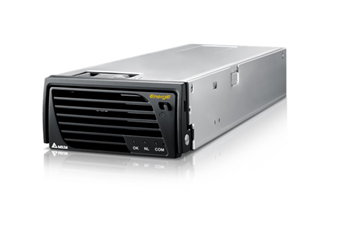

DPR 3000B EnergE

Delta’s technology leading telecom rectifier DPR 3000B EnergE provides the industrial leading efficiency of 96.2%. The single phase, hot pluggable fan cooled rectifier provides the 56.8 W/in³ outstanding power density. Integrated with the high efficiency rectifier DPR 3000B EnergE, Delta power solution provides an energy saving solution for network base stations, wireless applications, fixed line applications and data communications.

Overview

Applications

Wireless applications
Fixed line applications, data communications
Network base stations

Specifications

Input Voltage (nominal): 230 VAC
Input Voltage (range): 90–300 VAC; De-rating ≤ 184 VAC
Frequency: 45–66 Hz
Output Voltage (default): -54.0 VDC
Output Voltage (adjustable range): -42 to -58 VDC
Output Current: 60 A
Maximum Power @ nominal Input: 3000 W
Power Density: 56.8 W/in³
Peak Efficiency: 96.2%
Dimensions (W x H x D): 84 x 41 x 265 mm (3.30 x 1.61 x 10.43 inch)
Weight: 1.3 kg (3.0 lb)
Safety: Passes TUV, CE, UL cUL; Catch the CB certificate; Complies with IEC/EN/UL 60950-1 & IEC/EN/UL 62368-1
EMC: EN 55022 AC Class B and DC output Class A; EN 300 386
Environment: RoHS
