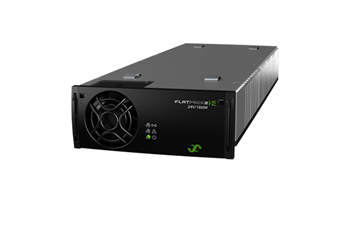

Flatpack2 24V/1800W HE

Flatpack2 24V/1800W HE

The combination of innovative design, efficiency and reliability makes the Flatpack2 HE stand out.

Compared to older technologies with even poorer efficiency an investment in a Flatpack2 HE system is repaid in a few years by the reduced operating cost.

Overview

The Flatpack2 modular concept has a lot of benefits compared to traditional solutions in the industry. It has high efficiency; less power consumption and heat dissipation. The overall Size and footprint of cabinet is 50% of Thyristor Controlled Size. Modular Hot Plug-in Construction allows redundancy, n+1, n+2 configurations.

It's easy to do repairing with MTTR< 5 minutes.Very high MTBF > 350000 hours, wide input AC Voltage and frequency range.Possibility to build combined systems with rectifiers, DC/DC converters and inverters controlled by one controller.
Main Features
  • Digital controllers
  • Heat management
  • OR-ing protection on output unique connection
  • Global approvals
Applications
Railway & Metro
  • Control and protection
Power Utilities
  • Control and monitoring systems
  • Alarm systems
  • PLC systems
