OutD “M” series outdoor cabinets are the new series of the new modular cabinets. Modular construction of the cabinet is very user friendly. Many parts like door, back wall, side walls and roof can be opened, demounted or removed on site to make the installation of the customer equipment as easiest and as most comfortable as possible. Cabinet is designed with two types of cooling system: AV (air ventilation) and AV + A/C (hybrid: air ventilation + air conditioner)

Product Introduction

Main Features
  • Dimensions: -
    • OutD1.8M: W770 x D852 x H1827
    • OutD2.0M: W870 x D952 x H2050
  • Material: aluminium/HDG frame + HDG steel panels (optional aluminum)
  • IP 55 protection
  • Panels with optional thermal insulation
  • Different cooling equipment
    • AV (LENI concept)
    • Hybrid AV + A/C
  • Rear door possibility
  • Side panels removable
  • Cabinet would be send assembled or flat packed

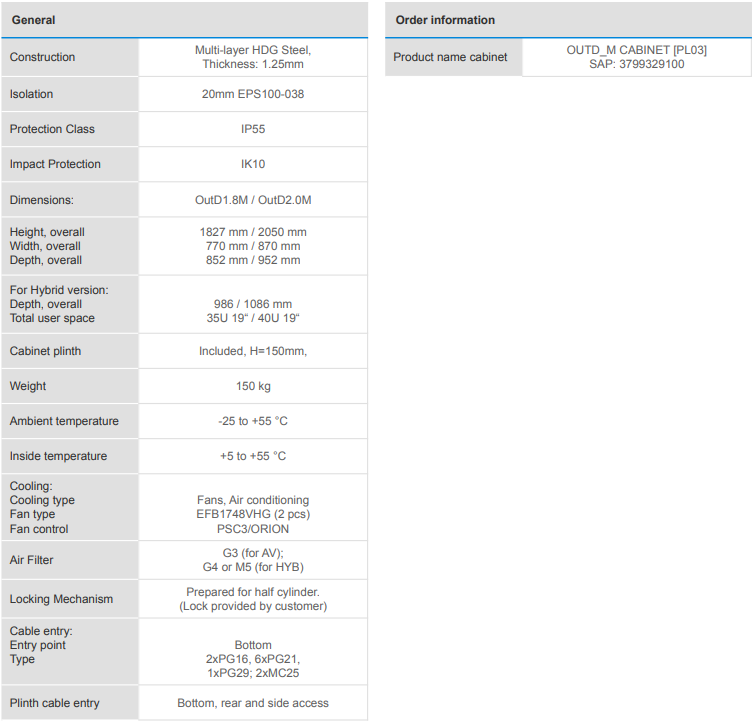

Specifications





Multilayer wall design based on steel




Max BOM SAP PN 3799329100
Dimensions
TFF: W770 x D852 x H1827mm
VFF: W870 x D952 x H2050mm
Max. Power of system
1x shelf 4xDPR6000 or 2x shelf 4xDPR6000
1x shelf 6xDPR4000 or 2x shelf 6xDPR4000
2x shelf 6xDPR3000
3x shelf 4xDPR2900
Efficiency 95.2-98% Max. Output current 600A

Enhanced monitoring and controlling with Orion Touch controller

AC input
DPR6000 : 3 phase 3x230/400VAC, 3L, PE
switch 63A or 100A, terminals 3L+PE, OVP1+2 or OVP2, rect. breakers 16A
DPR4000 : 3 phase 3x230/400VAC, 3L, N, PE switch 63A or 100A, terminals 3L+PE, OVP1+2 or OVP2, rect. breakers 25A
DPR2900 and DPR3000: 3 phase 3x230/400VAC, 3L, N, PE
switch 63A or 100A, terminals 3L+PE, OVP1+2 or OVP2, rect. breakers 20A
Battery shalves
2.0 - 4x 8U batteries
1.8 - 3x 8U batteries
Battery connection
4x MCB 27mm (80A-300A)
Load distribution* MCB 13mm,18mm,27mm (2A-125A single pole, 300A multi pole)
Ambient temperature
-25⁰...+45⁰C
Cable entry place bottom
2 x Multigate MC25
2 x PG16, 6 x PG21, 1 x PG29
Rack space
35U/40U
Cooling capacity
120 W/K single fan 200 W/K dual Fan Aircon 1500W
EMC EN 300 386 Safety IEC EN 62368-1
