Empowering Spaces, Tailoring Power to You

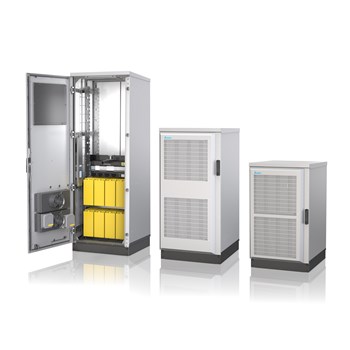

The Delta OutD cabinet is the choice from the tropics to the attics when space is scarce or site density needs to be increased cost-effectively.

The Delta OutD series offers several size options, ensuring right dimensions for telecom equipment. A flexible configuration is the way to tailor solutions for your demand, and our OutD cabinets offer an option to build the whole base station inside. Wall options are with multi- or single-layer, and multi lock mechanism completes the protection of installed equipment.

Advanced thermal cooling enables remarkable savings both in capital and operational expenditures

Product Introduction

Main Features
  • 23”/19” equipment space
  • Galvanized steel construction
  • IP55 Protection Class
  • Door mounted thermal management
  • Wide range of options
  • Global approvals
Applications
  • Network base stations
  • Wireless applications
  • Fixed Line applications
  • Data communications
  • Radio Access Networks
  • Optical Networks
Specifications






Wall design with thermal insulation




Max. BOM PN 3799987100
Max. Output current 600A Max. Power of system* 28.8 kW
OutD1.2M: W705 x D831 x H1199
OutD1.5M: W705 x D831 x H1475
OutD2.0M: W705 x D831 x H2068
Rectifiers configurations:
1x shelf 4xDPR6000 or 2x shelf 4xDPR6000
1x shelf 6xDPR4000 or 2x shelf 6xDPR4000
2x shelf 6xDPR3000
3x shelf 4xDPR2900
Rack space 21/27/39 [U] Efficiency 95.2-98%

Enhanced monitoring and controlling with Orion Touch controller

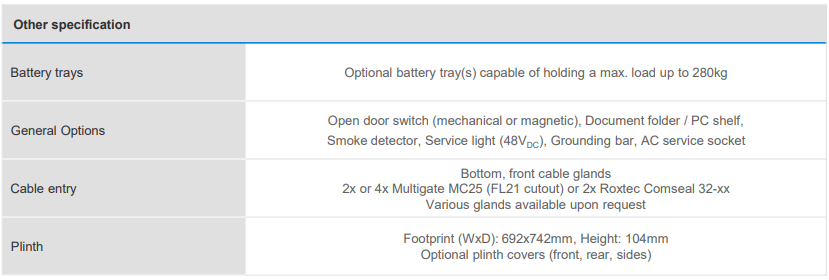

Battery shelves
2.0 - 4x 8U batteries or 1.5 - 3x 8U batteries or1.2 - 2x 8U batteries
Cable entry bottom
2x Mutligate MC25 or 2x Roxtec Comseal 12-12
AC input
for DPR6000: 3 phase 3x230/400VAC, 3L, PE, switch 63A or 100A, terminals 3L+PE, OVP1+2 or OVP2, rect. breakers 16A
for DPR4000 : 3 phase 3x230/400VAC, 3L, N, PE switch 63A or 100A, terminals 3L+PE, OVP1+2 or OVP2, rect. breakers 25A
for DPR2900 and DPR3000: 3 phase 3x230/400VAC, 3L, N, PE, switch 63A or 100A, terminals 3L+PE, OVP1+2 or OVP2, rect. breakers 20A
Load distribution MCB 13mm,18mm, 27mm
(2A-125A single pole, 300A multi pole)
Battery connection 4x MCB 27mm (80A-300A)
Ambient temp.
-25 ...+45⁰C

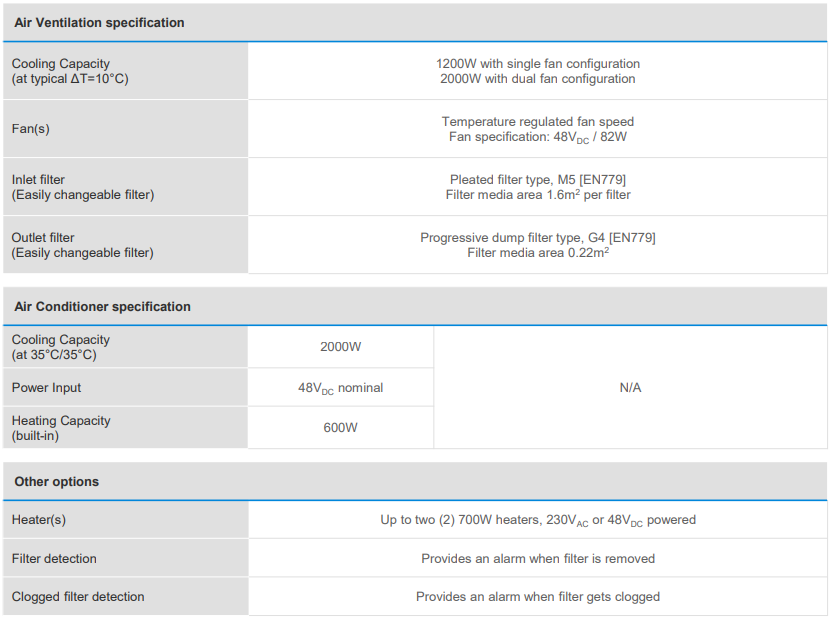

Cooling capacity:
120 W/K single fan or
200 W/K dual Fan

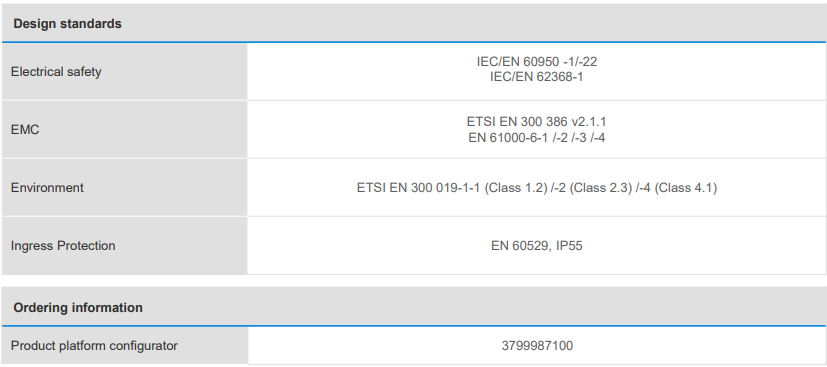

EMC EN 300 386 Safety IEC EN 62368-1
