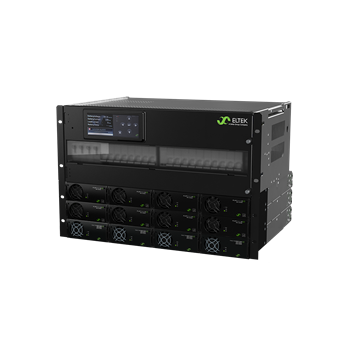

Rectiverter Power Core Flexible AC input 6kVA AC + 16-24kW DC

Rectiverter Power Core Flexible AC input 6kVA AC + 16-24kW DC

The Rectiverter building block combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 Vac loads, and 48 Vdc power for DC loads and battery charging.

The total DC output can be configured up to 24kW DC load where the limitation for AC load is set to max 6kVA.

The flexible AC input can be configured as 1 phase or 3 phase, booth for IT and TN network, where the AC output is limited to 1phase TN network. With this configuration a galvanic isolation between AC input/output is secured.


Product Introduction

Key features
  • 230 Vac single phase input
  • 400 Vac three phase input
  • 48 Vdc input/output
  • Single phase output
  • Max 6kVA AC output
  • Max 24kW DC output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • -48 Vdc distribution option
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller
  • Smartpack S controller
Specifications
Input
  • Current (maximum)    128 ADC
  • Max input AC Voltage    475 VAC
  • Max input DC Voltage    58 VDC
  • Mains configuration    230/400VAC 3 phase (Y)




AC Output
  • Max Output AC Voltage    240 VAC
  • Max power (kVA/kW)    6 / 4,8



DC Output
  • Max Power    24000 W
  • Current (maximum)    500 ADC
  • Max voltage    58 VDC
  • Max power    24 kW



Battery Distribution
  • Breaker positions up to    2
  • Breaker rating up to    250 A
  • LVBD    Yes



DC Load Distribution
  • Breaker positions up to    14
  • Breaker rating up to    63 A
  • LVLD    Yes




AC Load Distribution
  • Number of breakers    10
  • Breaker rating, up to    10 A



Other
  • Operating temperature    -40 - 55 °C



Dimensions
  • Dimensions WxHxD (mm)    482 x 311 x 432 mm
  • Dimensions WxHxD (inch)    18,98 x 12,24 x 17,01 "
  • Mounting dimensions    19" / 7U / 432 Width (Inch) / Height (U) / Depth (mm)



Design Standards
Ingress Protection (IP)    20
