Flatpack2 Integrated power system 48 Vdc

Flatpack2 Integrated power system 48 Vdc

The Flatpack2 outdoor power system provides solution for the most outdoor demanding applications applications with total power output up to 36kW DC load IP55 enclosure.

The combination of cost-effective design, power density and reliability makes the Flatpack2 a product family that truly stands out and provides unparalleled network availability and power output.

Together with our Type 4 enclosure platform it is designed for variety of applications and can be tailored to fit specific need with protection class of IP55.

Product Introduction

Key features
• Complete outdoor system
• Smartpack R controller
• Advanced control and monitoring
through ethernet port
• USB type A host for plug-in devices
(e.g. wifi, flash drives)
• USB type B for control
• Super high efficiency rectifiers
• Hot pluggable modules
• 8 x battery breaker positions
• LVBD
• 16 x load MCB positions
• PLD (optional)
• IP55
Applications
• Telecom – mobile / wireless
- Radio base stations / cell sites
- LTE / 4G / WiMAX
- Distributed antenna systems
- Microwave
- Broadband
• Telecom – fixed
- Telephony servers / switches
- Fiber optics / FTTx
- Microwave
- Cable
- Broadband

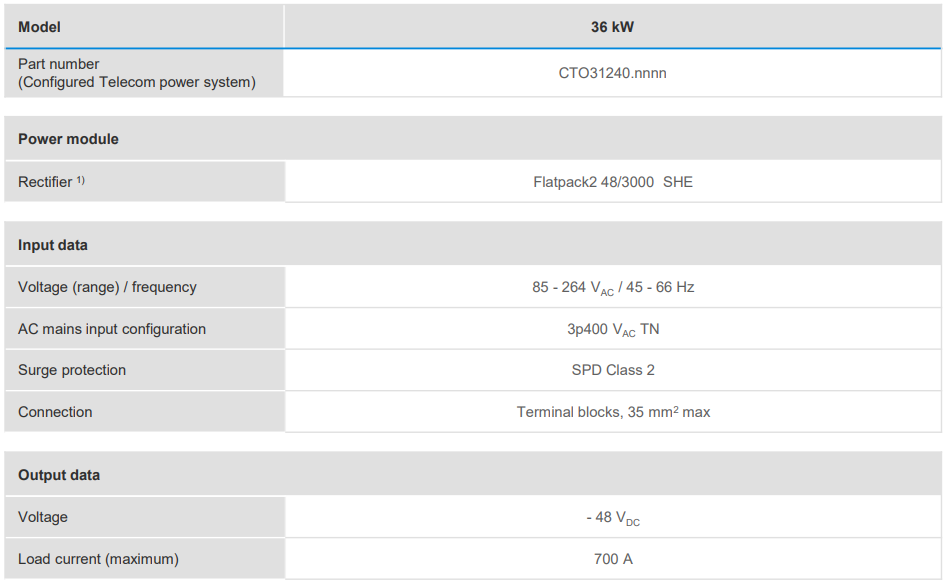

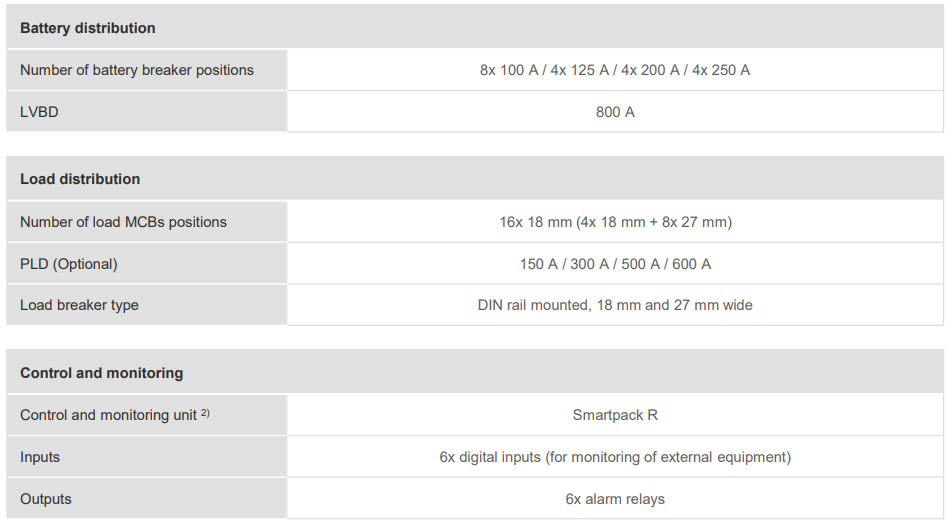

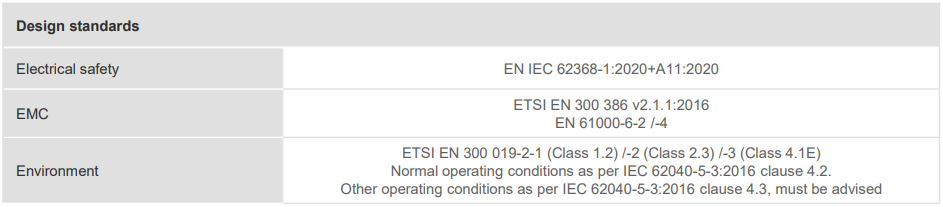

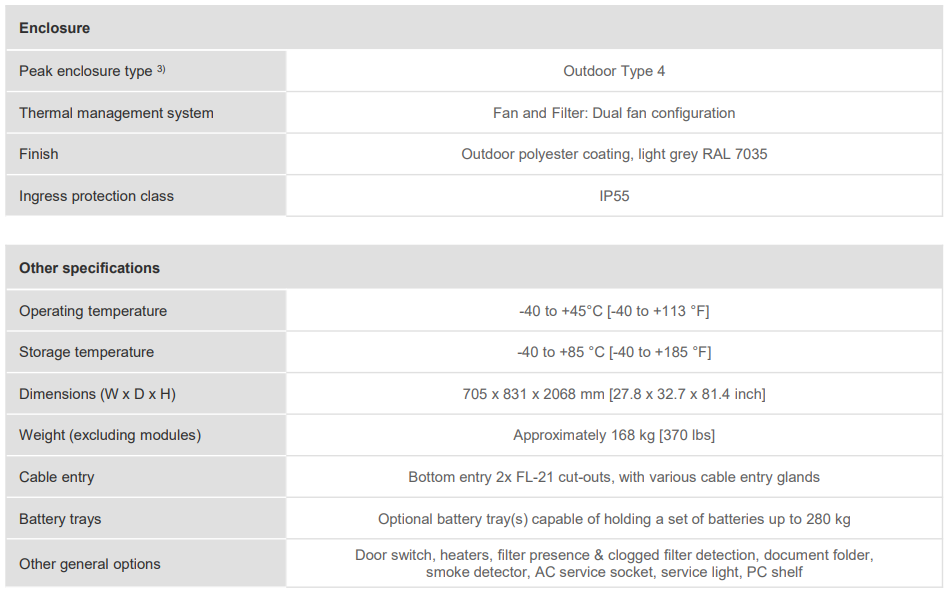

Specifications
