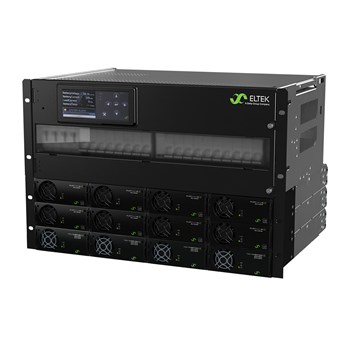

The Rectiverter building block combines both AC and DC feed into one common unit. Simultaneously it provides AC backup power for 230 Vac loads, and 48 Vdc power for DC loads and battery charging.

Product Introduction


The total DC output can be configured up to 24kW DC load where the limitation for AC load is set to max 6kVA.

The flexible AC input can be configured as 1 phase or 3 phase, booth for IT and TN network, where the AC output is limited to 1phase TN network. With this configuration a galvanic isolation between AC input/output is secured.







Key features
  • 230 Vac single phase input
  • 400 Vac three phase input
  • 48 Vdc input/output
  • Single phase output
  • Max 6kVA AC output
  • Max 24kW DC output
  • 1 pole AC distribution option
  • 2 pole AC distribution option
  • -48 Vdc distribution option
  • Built in transfer technology
  • 150% overload capability, 15s
  • 600% quick trip current, 20ms
  • Hot pluggable
  • Smartpack2 controller
  • Smartpack S controller



Specifications
Input
  • Current (maximum): 128 ADC
  • Max input AC Voltage: 475 VAC
  • Max input DC Voltage: 58 VDC
  • Mains configuration: 230/400VAC 3 phase (Y)


AC Output
  • Max Output AC Voltage: 240 VAC
  • Max power (kVA/kW): 6 / 4,8


DC Output
  • Max Power: 24000 W
  • Current (maximum): 500 ADC
  • Max voltage: 58 VDC
  • Max power: 24 kW


Battery Distribution
  • Breaker positions up to: 2
  • Breaker rating up to: 250 A
  • LVBD: Yes


DC Load Distribution
  • Breaker positions up to: 14
  • Breaker rating up to: 63 A
  • LVLD: Yes


AC Load Distribution
  • Number of breakers: 10
  • Breaker rating, up to: 10 A


Other
  • Operating temperature: -40 - 55 °C


Dimensions
  • Dimensions WxHxD (mm): 482 x 311 x 432 mm
  • Dimensions WxHxD (inch): 18,98 x 12,24 x 17,01 "
  • Mounting dimensions: 19" / 7U / 432 Width (Inch) / Height (U) / Depth (mm)


Design Standards
  • Ingress Protection (IP): 20
