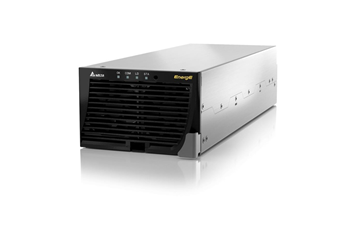

DPR 6000B EnergE

Delta’s technology leading telecom rectifier DPR 6000B EnergE provides the industrial leading efficiency of 96.5%. The three phase, hot pluggable fan cooled rectifier provides the 26.5 W/in³ outstanding power density. Integrated with the high efficiency rectifier DPR 6000B EnergE, Delta power solution provides an energy saving solution for network base stations, wireless applications, fixed line applications and data communications.

Overview

Main Features

Energy saving - leading edge efficiency
Advanced energy saving functionality
Space savings - leading edge power density
Space saving - up to 24 kW per shelf in 2U height
Silent operation - very low audible noise
Low line current distortion - power factor correction

Applications

Data centres
Core networks MSC
Fixed line applications, data communications

Specifications

Input Voltage (nominal):
Standard Voltage: 380/400/480 VAC
Low Voltage: 208/220/230 VAC
Input Voltage (range):
Standard Voltage: 250–530 VAC; De-rating ≤ 320 VAC
Low Voltage: 165–290 VAC; De-rating ≤ 180 VAC
Frequency: 50–60 Hz
Output Voltage (default): -53.5 VDC
Output Voltage (adjustable range): -42 to -58 VDC
Output Current: 125 A
Maximum Power @ nominal Input: 6000 W
Power Density: 26.5 W/in³
Peak Efficiency: 96.5%
Dimensions (W x H x D): 129.0 x 83.0 x 380.6 mm (5.07 x 3.26 x 14.98 inch)
Weight: 5.2 kg (11.46 lb)
Safety: EN 60950; UL, cUL; CE Compliance
EMC: EN 300 386; EN 55022; CISPR 22
Environment: RoHS
