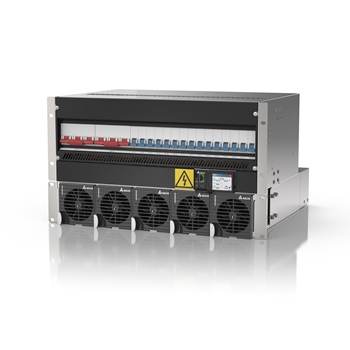

CellD 300 DPS 2900B-48-5

CellD systems are small, just like cells. They can be embedded in the telecom infrastructure and are often used in OutD outdoor solutions. The products in this series are light and designed especially for installations with limited space offering high density of the installed power.

The system includes high efficiency rectifiers, AC and DC connections, battery connection and ORION controller. In addition to advanced supervision, short depth and easy installation are the success factors of the system.

Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.

Product Introduction

Main Features
• 19” rack mounted system up to
250 A loads
• Integrated distribution unit and
rectifiers shelf with
combinations from 5U to 6U
• High efficiency rectifiers up to
96.4 %
• All connections easily
accessible from the top
• All battery and load breakers
accessible at the front
• Option for enhanced monitoring
and controlling
Applications
• Wireless applications, network
base stations, LTE
• Fixed line applications, broadband
services
• Transmission

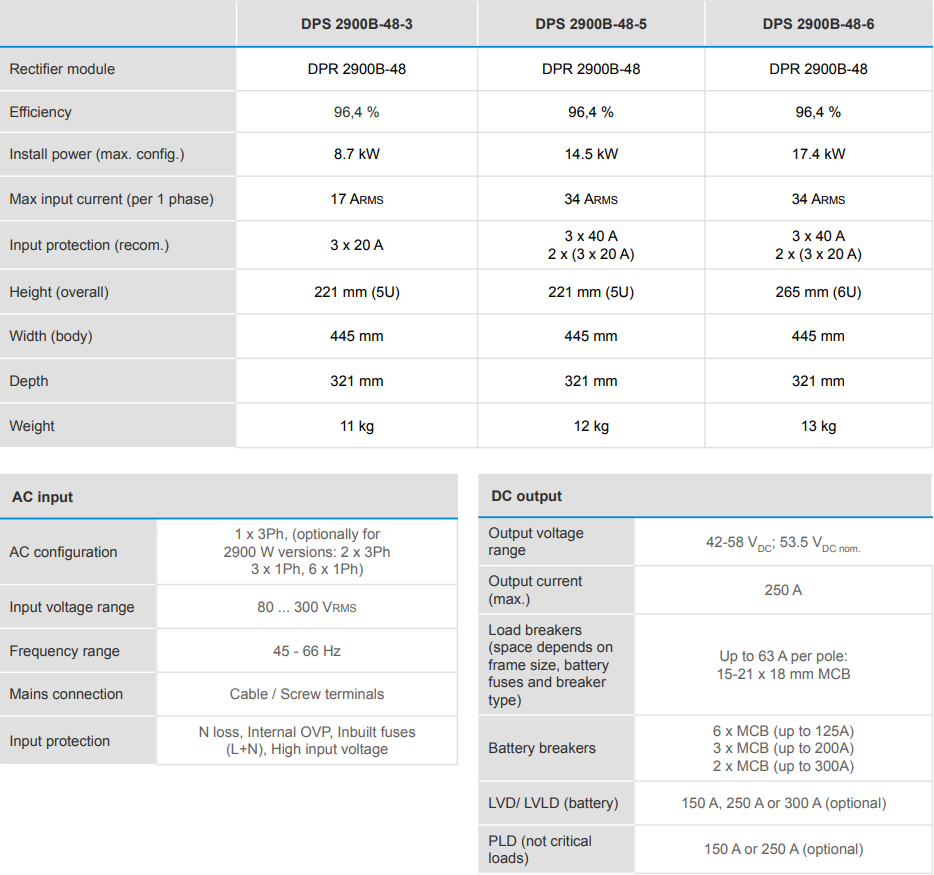

Specifications




Max. install power 14.5 kW

19IN-5U rack mounted system Max. output current 250 A
Max. install power 14.5 kW Load breakers 15-21 x MCB (2 - 63 A)
Max. 5x Rectifier 2900W Battery breakers:
2-6 x MCB (up to 125A)
1-3 x MCB (up to 200 A)
0-2 x MCB (up to 300 A)
Efficiency 96.4 % Controller ORION Touch
Input voltage 80 VRMS to 300 VRMS EN 62368-1 / EN 300 386
AC configuration 3L + N + PE Weight 12.0 kg
