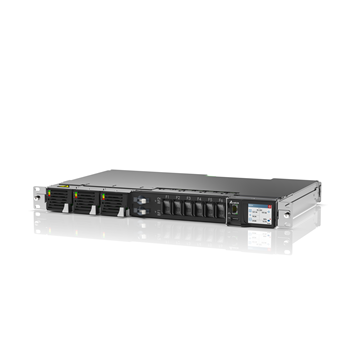

CellD 40

CellD 40

CellD systems are small, just like cells. They can be embedded in the telecom infrastructure and are often used in OutD outdoor solutions. The products in this series are light and designed especially for installations with limited space offering high density of the installed power.

The system includes high efficiency rectifiers, AC and DC connections, battery connection and ORIONtouch controller. In addition to advanced supervision, short depth and easy installation are the success factors of the system.

Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.

Main Features

Main Features
  • 19in rack mounted system up to 2.55 kW
  • Complete integrated system in 1U
  • High efficiency rectifiers up to 95,2 %
  • All connections easily accessible from the top, or optionally rear side
  • All battery and load breakers accessible at the front
  • Sliding mechanism to support easy access to the top output connections
  • Option for enhanced monitoring and controlling



Applications
  • Wireless applications, network base stations, LTE
  • Fixed line applications, broadband services
  • Transmission

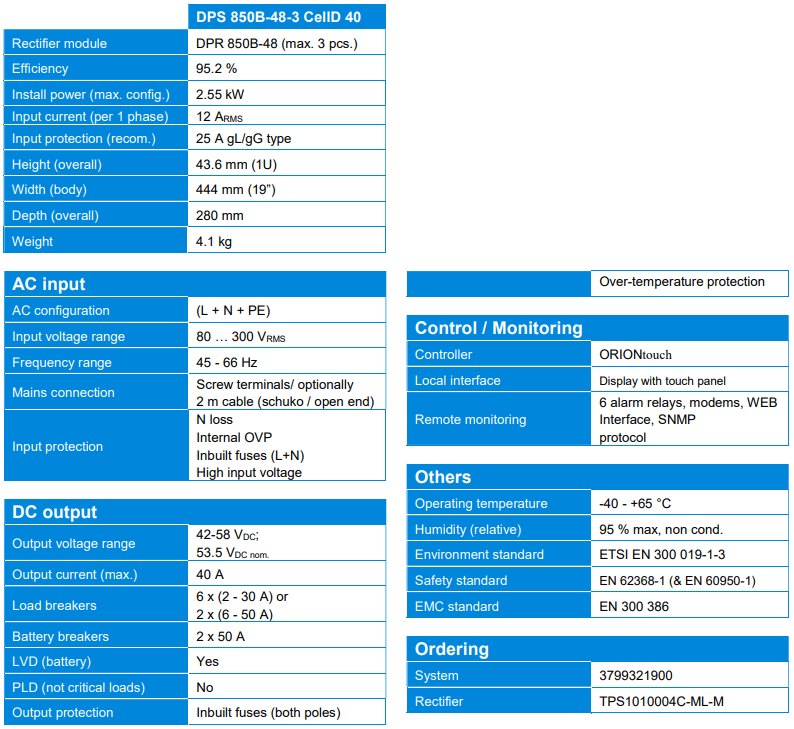

Main Features



Max. install power 2.55 kW



19IN-1U rack mounted system Max. output current 40 A
Max. install power 2.55 kW Load breakers 6 x MHCB (2 - 30 A) or Load breakers 2 x MHCB (6 - 50 A)
Max. 3 x Rectifier 850W Battery breakers 2 x MHCB 50 A
Efficiency 95.2 % Controller ORION Touch
Input voltage 80 VRMS to 300 VRMS EN 62368-1 / EN 300 386
AC configuration L + N + PE Weight 4.1 kg
