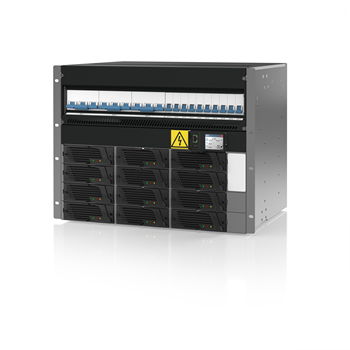

CellD 600 DPS 2900B-48-12

CellD systems are small, just like cells. They can be embedded in the telecom infrastructure and are often used in OutD outdoor solutions. The products in this series are light and designed especially for installations with limited space offering high density of the installed power.

The system includes high efficiency rectifiers, AC and DC connections, battery connection and Delta ORION controller. In addition to advanced supervision, short depth and easy installation are the success factors of the system.

Delta is known for quality and product reliability – in this solution that has been combined to optimize the total cost of ownership.

Product Introduction

Main Features
• 19in rack mounted system up
to 34.8 kW
• Integrated distribution unit +
rectifier shelf 6U ... 8U
• High efficiency rectifiers up to
96.4 %
• All connections easily
accessible from the top
• All battery and load breakers
accessible at the front
• Option for enhanced monitoring
and controlling

Applications
• Wireless applications, network
base stations, LTE
• Fixed line applications, broadband
services
• Transmission

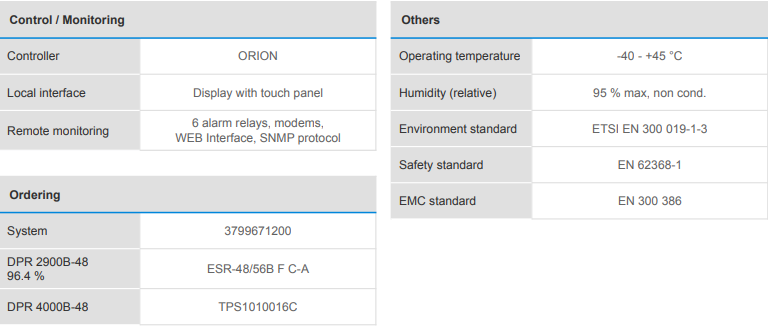

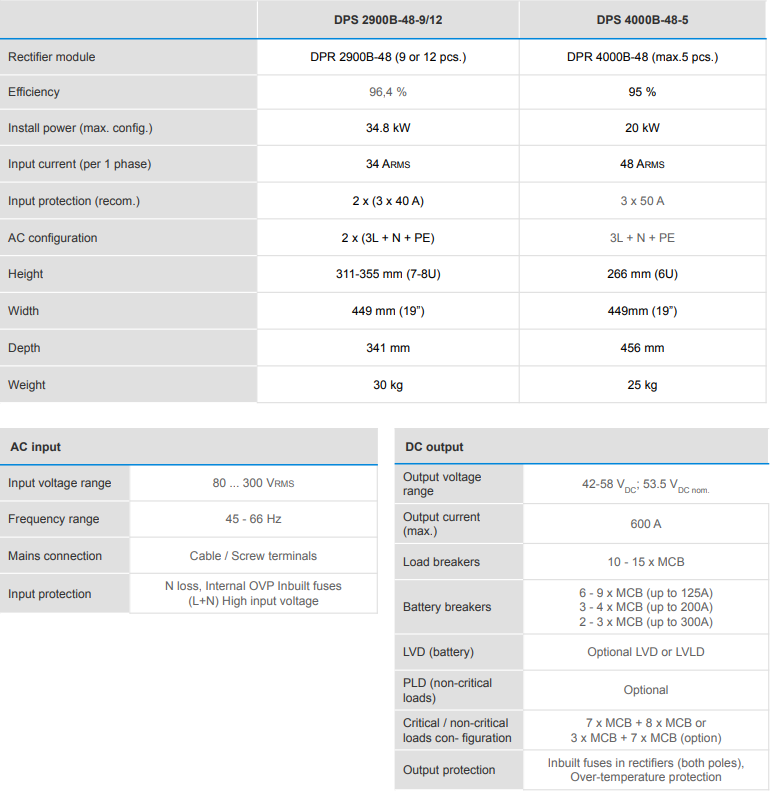

Specifications






19IN-8U rack mounted system Max. output current 600 A
Max. install power 34.8 kW Load breakers 10-15 x MCB (2 - 63 A)
Max. 12 x Rectifier 2900W Battery breakers:
6-9 x MCB (up to 125A)
3-4 x MCB (up to 200 A)
2-3 x MCB (up to 300 A)
Efficiency 96.4 % Controller ORION Touch
Input voltage 80 VRMS to 300 VRMS EN 62368-1 / EN 300 386
AC configuration 2x (3L + N + PE) Weight 30.0 kg
