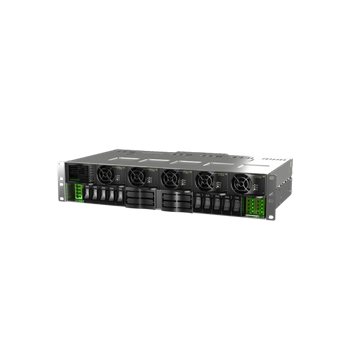

Flatpack S 2U

Flatpack S 2U

This small power dense system is purely based on pluggable breakers and rectifiers and can easily be configured to fit your required application, even in field. The combination of Flatpack S HE rectifier and Smartpack S controller ensures safe, reliable and environmental friendly operation.

The shallow depth makes it suitable for most cabinets and excellent as a replacement unit. And as it is all based on the well proven Eltek technology, the Flatpack S family is the key for future needs.

Product Introduction

Features & Benefits
  • Complete system
  • SmartpackS controller
  • High efficiency rectifiers
  • Battery distribution
  • Load distribution
  • 270 mm system depth
  • 2U height
  • Hot pluggable rectifiers
  • Hot pluggable controller
  • Advanced control and monitoring through ethernet port
  • 4 large breaker positions for battery and load
  • 10 x 30AMCB distribution
  • Push-in front connection
  • LVBD
  • LVLD (optional)



Specifications
Input
  • Max input AC Voltage: 305 VAC
  • Max input DC Voltage: 300 VDC
  • Mains configuration: 230VAC Single phase;230VAC 3 phase (Δ);230/400VAC 3 phase (Y)


DC Output
  • Current (maximum): 150 ADC
  • Max voltage: -48 VDC
  • Max power: 9 kW


Battery Distribution
  • Breaker positions up to: 4
  • Breaker rating up to: 80 A
  • LVBD: Yes

DC Load Distribution
  • Breaker positions up to: 12
  • Breaker rating up to: 80 A
  • LVLD: Yes


Other
  • Operating temperature: -40 - 45 °C


Dimensions
  • Dimensions WxHxD (mm): 482.5 x 88,3 x 270 mm
  • Dimensions WxHxD (inch): 19 x 3,48 x 10,63 "
  • Weight: 6,3 kg


Design Standards
  • Ingress Protection (IP): 20
